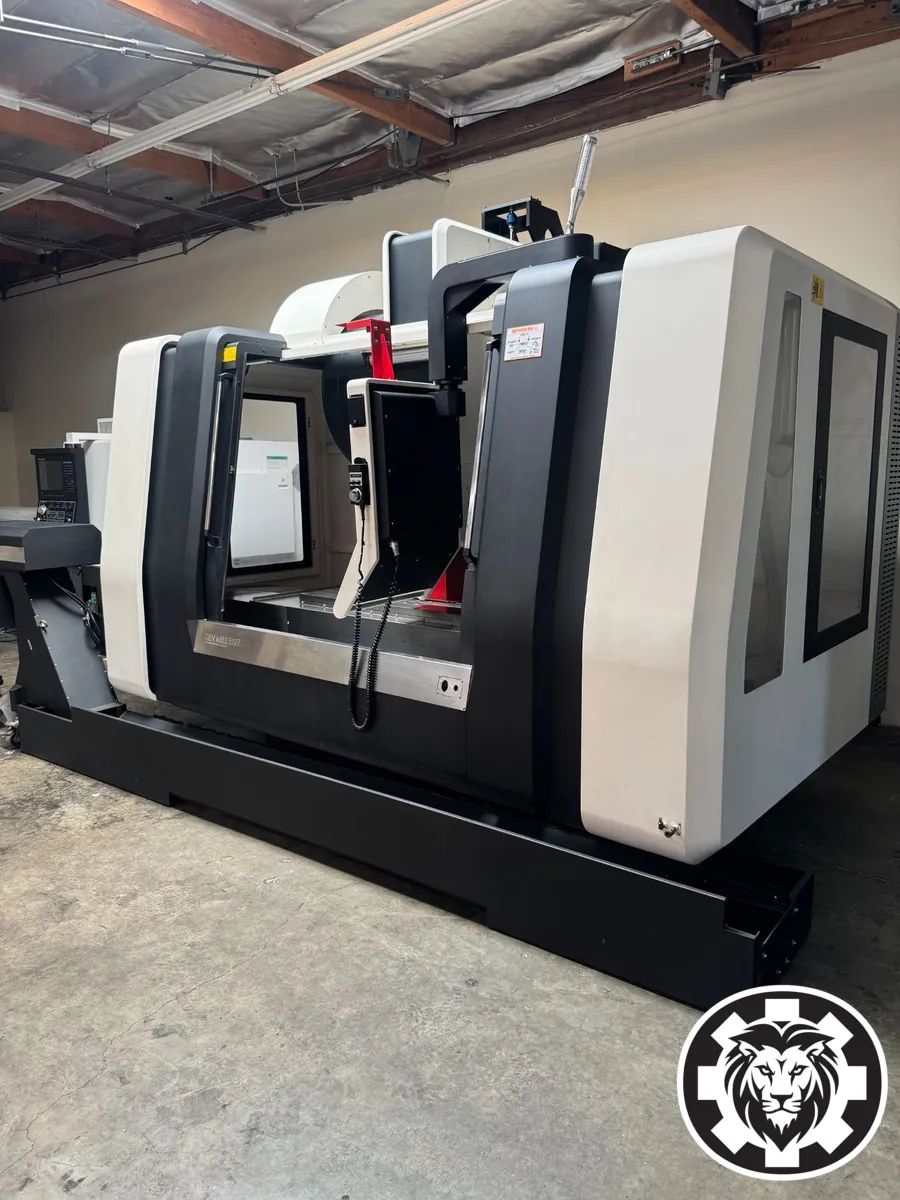

Ganesh GENMILL 5127 VMC, 2019 - Mitsubishi M800 Control, Chip Conveyor, Through-Spindle Coolant

Ganesh GENMILL 5127 VMC, 2019 - Mitsubishi M800 Control, Chip Conveyor, Through-Spindle Coolant

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
GANESH
Model:
GEN MILL 5127
Year:
2019
Stock #:
603
Status:
For Sale

Description

GANESH GEN MILL 5127 vertical machining center, 2019, used. Features X: 34.64, Y: 23.62, Z: 25.59, power: 25.0 HP, 12000 RPM, 40 ATC, CT40/BT40 taper. Compact table 12.6x12.6, 5-axis, designed for precise and efficient machining tasks.

X51.27"1,302.3 mm
Y27.56"700.02 mm
Z25.59"649.99 mm
Power35 hp26.1 kW
RPM12,000 RPM12,000 RPM
# ATC3030
TaperCAT 40CAT 40
Table-W27.56"700.02 mm
Table-L57.98"1,472.7 mm
# Axis33
ControlCNCCNC
Dimensions146 x 130 x 119146 x 130 x 119
Weight1984119841

X-Axis: 51.27"
Y-Axis: 27.56"
Z-Axis: 25.59"
Table Size: 57.98" x 27.56"
Max. Table Load: 4,850 lbs
Spindle Taper: CAT 40
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 35 HP
Tool Changer Capacity: 30 Tools
Rapid Traverse: 984 IPM
Coolant Capacity: 134 Gallons
Through-Tool Coolant Pressure: 300 PSI
Machine Weight: 19,841 lbs
Dimensions: 146" x 130" x 119"
Voltage: 220V
Phase: 3 Phase
Frequency: 50/60 Hz
Amperage: 75 Amps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Mitsubishi M800 CNC Control
30-Tool High-Speed Double Arm Automatic Tool Changer
12,000 RPM Direct-Drive Spindle
CAT 40 Big-Plus Spindle
300 PSI Through-Tool Coolant
Spindle Chiller
Chip Conveyor
4th & 5th Axis Wiring
2,700 Block Look-Ahead High-Speed Machining
Roller Bearing Ways
Remote Manual Pulse Generator / Handwheel

Overview

Type:
Vertical Machining Centers
Manufacturer:
GANESH
Model:
GEN MILL 5127
Year:
2019
Stock #:
603
Status:
For Sale

Description

GANESH GEN MILL 5127 vertical machining center, 2019, used. Features X: 34.64, Y: 23.62, Z: 25.59, power: 25.0 HP, 12000 RPM, 40 ATC, CT40/BT40 taper. Compact table 12.6x12.6, 5-axis, designed for precise and efficient machining tasks.

Specifications

Imperial

X51.27"
Y27.56"
Z25.59"
Power35 hp
RPM12,000 RPM
# ATC30
TaperCAT 40
Table-W27.56"
Table-L57.98"
# Axis3
ControlCNC
Dimensions146 x 130 x 119
Weight19841

X-Axis: 51.27"
Y-Axis: 27.56"
Z-Axis: 25.59"
Table Size: 57.98" x 27.56"
Max. Table Load: 4,850 lbs
Spindle Taper: CAT 40
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 35 HP
Tool Changer Capacity: 30 Tools
Rapid Traverse: 984 IPM
Coolant Capacity: 134 Gallons
Through-Tool Coolant Pressure: 300 PSI
Machine Weight: 19,841 lbs
Dimensions: 146" x 130" x 119"
Voltage: 220V
Phase: 3 Phase
Frequency: 50/60 Hz
Amperage: 75 Amps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Equipped With

Mitsubishi M800 CNC Control
30-Tool High-Speed Double Arm Automatic Tool Changer
12,000 RPM Direct-Drive Spindle
CAT 40 Big-Plus Spindle
300 PSI Through-Tool Coolant
Spindle Chiller
Chip Conveyor
4th & 5th Axis Wiring
2,700 Block Look-Ahead High-Speed Machining
Roller Bearing Ways
Remote Manual Pulse Generator / Handwheel
