Peddinghaus Ocean Avenger II MDL-1000/1B CNC Beam Drill, 2015 - 60' Beam Capacity, Conveyor System
Have one to sell?
ConditionUsed
1 available
PEDDINGHAUS MDL-1000/1B used beam drill line available. Ideal for construction and manufacturing projects requiring precise drilling in beams. Reliable make from reputable manufacturer. Contact for more details and pricing.
Make: Peddinghaus / Ocean Machinery
Model: Ocean Avenger II MDL-1000/1B
Type: CNC Beam Drill
Year: 2015
Maximum Profile Size: 60" x 40"
Maximum Profile Weight: 730 lbs/ft
Minimum Drill Diameter: 5/16"
Maximum Drill Diameter: 1-9/16"
Maximum Material Thickness: Up to 10", Limited by Drill Length
Maximum X-Axis Speed: 100 FPM
Maximum Y-Axis Speed: 120 FPM
Spindle Power: 13.5 HP
Drilling Feed Rate: 2-10 IPM, Infinitely Variable
Spindle Stroke: 13"
Total Power: 20 HP
Power Supply: 208-575V, 3-Phase, 60 Hz
Average Output: 200-400 Holes/Hour
Maximum Beam Length: 60'
Overall Table Length: 66'-2"
CNC Control

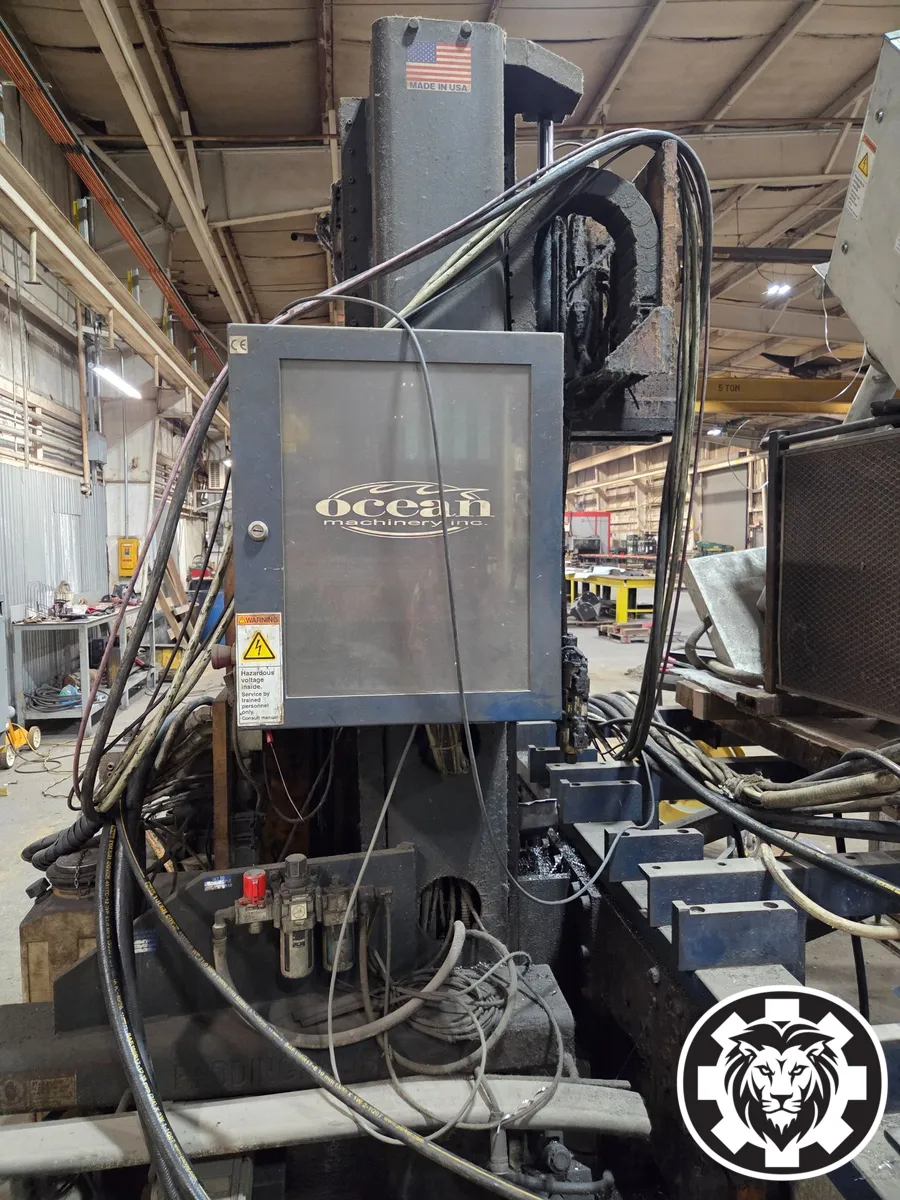

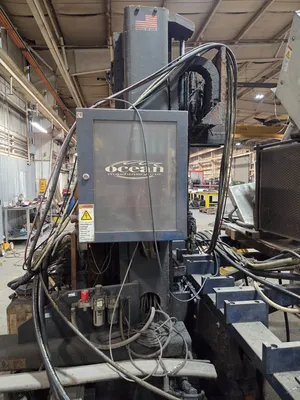

Single-Spindle CNC Drill Head
Heavy-Duty Hydraulic Spindle Motor
Hydraulic Material Clamping

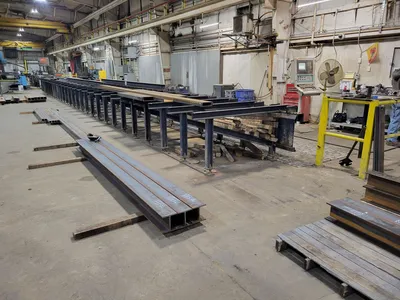

Infeed & Outfeed Roller Conveyor System
60' Maximum Beam Handling Capacity
Power Unit
Laser Beam-End Detection
Y-Axis & Clamp Encoders
UNIST Coolant System
PEDDINGHAUS MDL-1000/1B used beam drill line available. Ideal for construction and manufacturing projects requiring precise drilling in beams. Reliable make from reputable manufacturer. Contact for more details and pricing.
Imperial
| Power | 20 hp |
| Control | CNC (CNC) |
| Dimensions | 66'-2" overall table length |
Make: Peddinghaus / Ocean Machinery
Model: Ocean Avenger II MDL-1000/1B
Type: CNC Beam Drill
Year: 2015
Maximum Profile Size: 60" x 40"
Maximum Profile Weight: 730 lbs/ft
Minimum Drill Diameter: 5/16"
Maximum Drill Diameter: 1-9/16"
Maximum Material Thickness: Up to 10", Limited by Drill Length
Maximum X-Axis Speed: 100 FPM
Maximum Y-Axis Speed: 120 FPM
Spindle Power: 13.5 HP
Drilling Feed Rate: 2-10 IPM, Infinitely Variable
Spindle Stroke: 13"
Total Power: 20 HP
Power Supply: 208-575V, 3-Phase, 60 Hz
Average Output: 200-400 Holes/Hour
Maximum Beam Length: 60'
Overall Table Length: 66'-2"
CNC Control
Single-Spindle CNC Drill Head
Heavy-Duty Hydraulic Spindle Motor
Hydraulic Material Clamping
Infeed & Outfeed Roller Conveyor System
60' Maximum Beam Handling Capacity
Power Unit
Laser Beam-End Detection
Y-Axis & Clamp Encoders
UNIST Coolant System
