105 Ton Peddinghaus Peddiworker 1050 Ironworker - Punch, Shear & Notcher
Have one to sell?
ConditionUsed
1 available

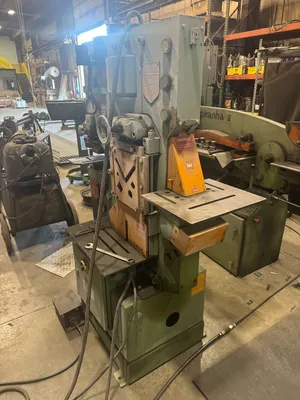

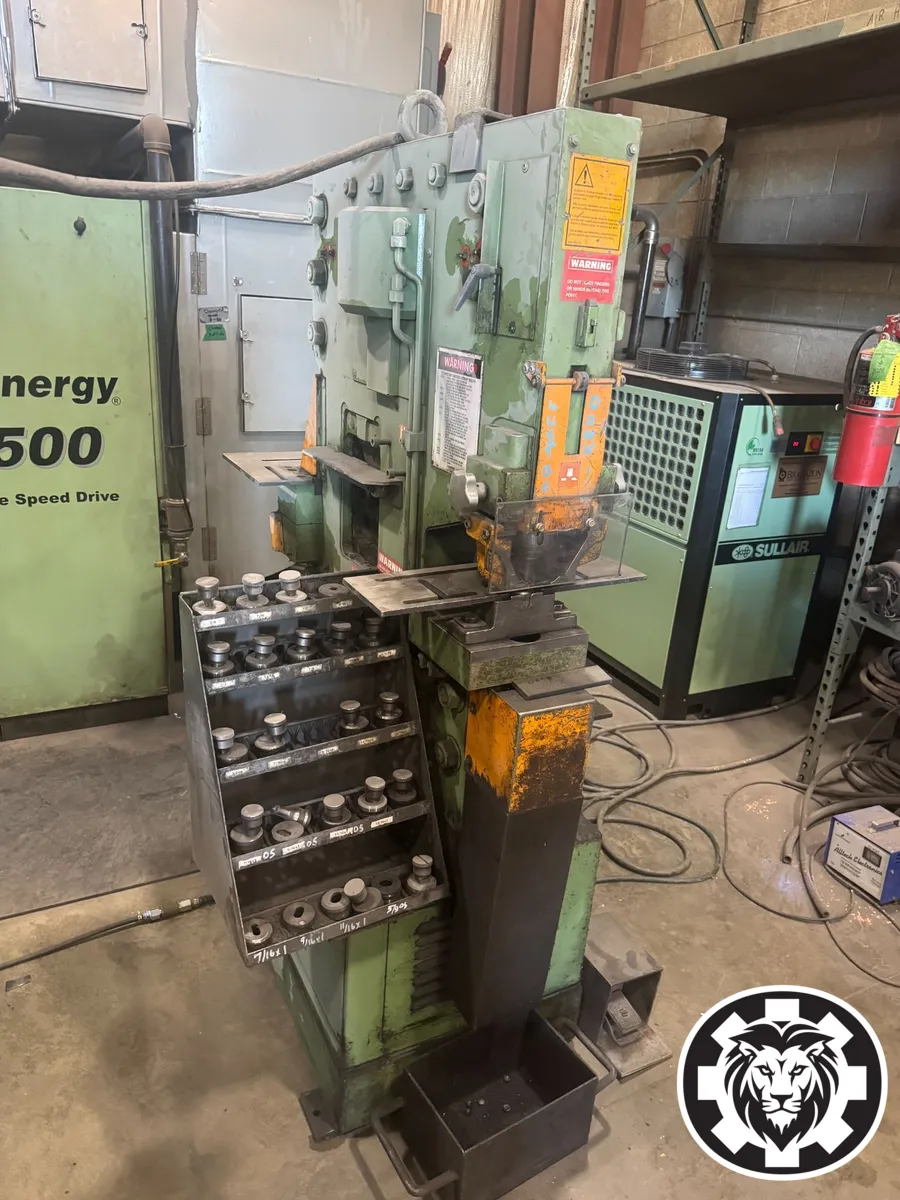

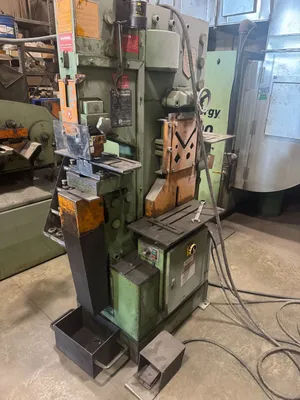

Used PEDDINGHAUS PEDDIWORKER 1050 Ironworker, 105-ton capacity. Features include 5.0 angle (L1 & L2), 0.5 angle (T), and 10.0 throat. Ideal for robust metalworking needs.
Make: Peddinghaus
Model: Peddiworker 1050
Type: Hydraulic Ironworker
Punching Capacity: 105 Ton
Throat Depth: 10"
Punch Capacity: 1-1/4" Dia. thru 3/4" Thick
Punch Capacity: 2-1/2" Dia. thru 3/8" Thick
Angle Shear Capacity: 5" x 5" x 1/2"
Flat Bar Shear Capacity: 16" x 3/4"
Round Bar Shear Capacity: 3/4" & 1-9/16"
Square Bar Shear Capacity: 1" & 1-9/16"
Notcher Width: 2"
Notcher Depth: 2-3/4"
Notcher Thickness: 1/2"
Operating Pressure: 3,550 PSI
Machine Weight: 2,640 lbs
Punching Station
Angle Shear
Flat Bar Shear
Round & Square Bar Shear
Notching Station
Used PEDDINGHAUS PEDDIWORKER 1050 Ironworker, 105-ton capacity. Features include 5.0 angle (L1 & L2), 0.5 angle (T), and 10.0 throat. Ideal for robust metalworking needs.
Imperial
| Tonnage | 105 T |
| Angle (L1) | 5" |
| Angle (L2) | 5" |
| Angle (T) | 0.5" |
| Throat | 10" |
Make: Peddinghaus
Model: Peddiworker 1050
Type: Hydraulic Ironworker
Punching Capacity: 105 Ton
Throat Depth: 10"
Punch Capacity: 1-1/4" Dia. thru 3/4" Thick
Punch Capacity: 2-1/2" Dia. thru 3/8" Thick
Angle Shear Capacity: 5" x 5" x 1/2"
Flat Bar Shear Capacity: 16" x 3/4"
Round Bar Shear Capacity: 3/4" & 1-9/16"
Square Bar Shear Capacity: 1" & 1-9/16"
Notcher Width: 2"
Notcher Depth: 2-3/4"
Notcher Thickness: 1/2"
Operating Pressure: 3,550 PSI
Machine Weight: 2,640 lbs
Punching Station
Angle Shear
Flat Bar Shear
Round & Square Bar Shear
Notching Station
