3" Giddings & Lewis Type 300 Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available

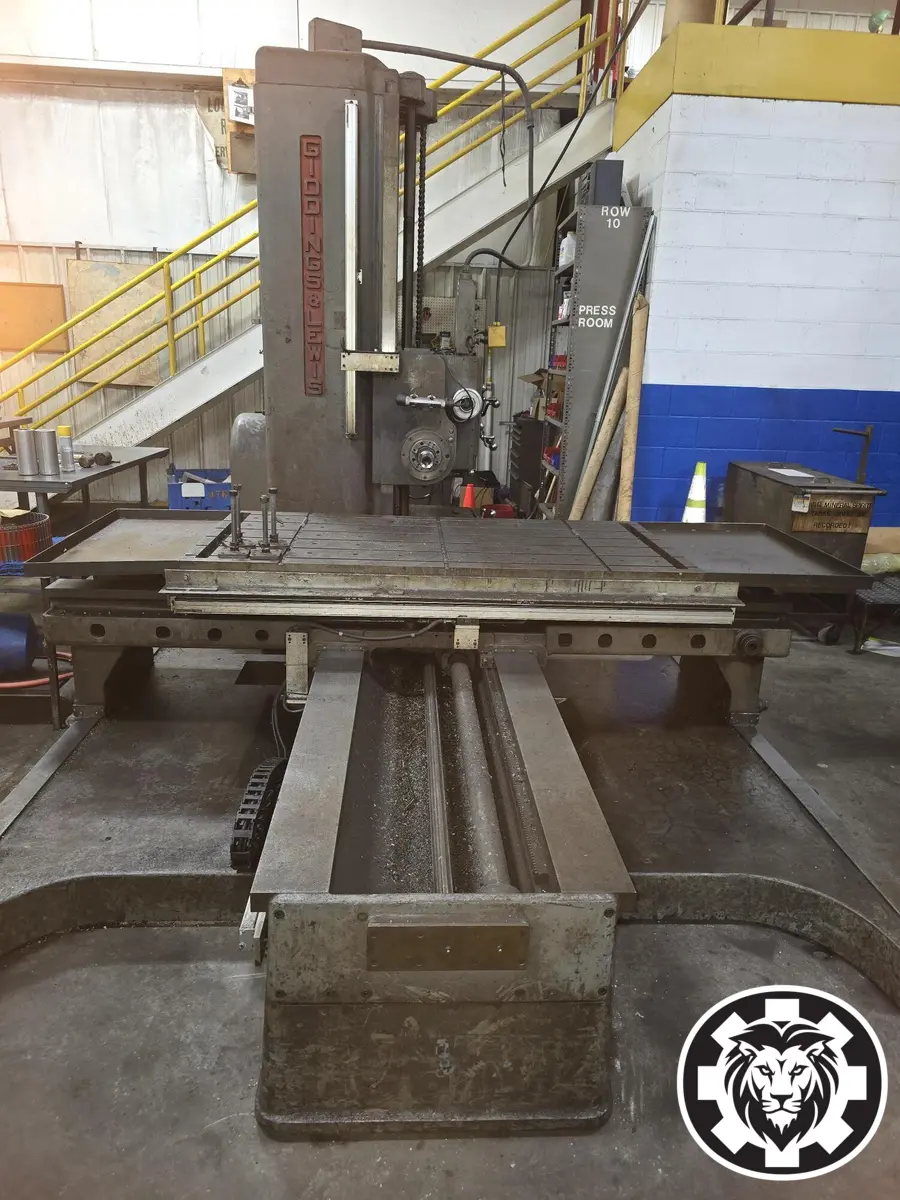

Giddings & Lewis Model 300 Horizontal Table Type Boring Mill available. Pre-owned condition. Ideal for precision machining projects. Contact to discuss suitability for your needs.
Spindle Diameter: 3"
Spindle Taper: MT30 / #5 Morse - Configuration Dependent
Spindle Travel: 24"
Spindle Speed Range: Approx. 22-1,600 RPM
Number of Spindle Speeds: Up to 36
Spindle Feed Range: Approx. 0.0012-0.125 IPR
Table Size: 30" x 48" or 36" x 72" - Configuration Dependent
X-Axis Travel: Approx. 60"
Y-Axis Travel: Approx. 36"-48"
Z-Axis / Saddle Travel: Approx. 57"-58"
Spindle Motor: Approx. 10-15 HP
Electrical: 220/440V, 3-Phase
Approx. Machine Weight: 25,000 lbs
Power Rapid Traverse
T-Slotted Work Table
