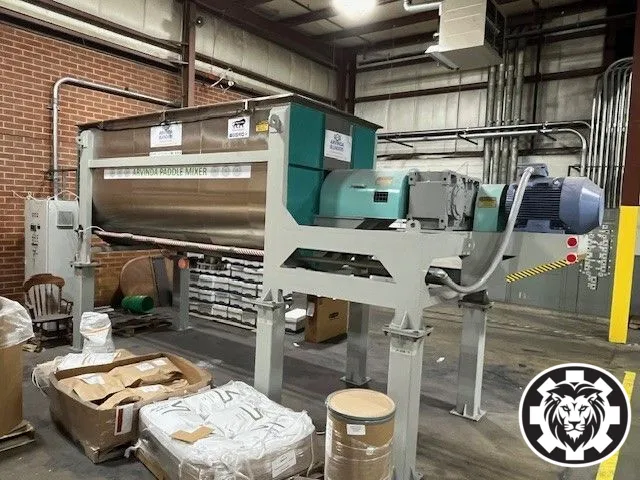

9,000 Liter SS 304 Arvinda Single Shaft Horizontal Paddle Mixer - 75 HP
Have one to sell?
ConditionUsed
1 available
ARVINDA SS 304 Paddle Mixer, single shaft horizontal type, available in used condition. Ideal for efficient and reliable mixing.
Gross Capacity: 9,000 Liters
Working Capacity: 7,500 Liters
Batch Capacity: 3,600 kg
Maximum Feed Weight: 3,750 kg
Mixer Type: Single Shaft Horizontal Paddle
Tank Design: U-Shaped
Contact Parts: SS 304
Non-Contact Parts: Mild Steel
Main Body Thickness: 6 mm
Side Plate Thickness: 10 mm
Paddle Material: SS 304
Mixer Speed: 36 RPM
Operating Speed Range: 20-40 RPM
Motor: 75 HP
Motor Speed: 1,800 RPM
Voltage: 480V
Phase: 3 Phase
Frequency: 60 Hz
Gear Ratio: 50:1
Discharge Size: 10"
Discharge Type: Pneumatic Butterfly Valve
Feed Hopper Internal Opening: 400 x 400 mm
Feed Hopper Upper Opening: 650 x 650 mm
Overall Dimensions: 6,850 x 2,000 x 3,430 mm
Machine Height: 3,190 mm
Discharge Height: 1,230 mm
75 HP Marathon Electric Motor
Heavy Duty VFD
Parallel Shaft Helical Gear Reducer
Direct Gear Motor Drive
Schneider Switchgear Control Panel
10" Pneumatic Butterfly Discharge Valve
SS 304 Feed Hopper
Three-Section Dust-Proof SS 304 Top Lid
Safety Limit Switches
Safety Guards on Rotating Parts
Forward/Reverse Motor Control
Mixer RPM Regulator
Manual Mixing Timer
Valve On/Off Control
