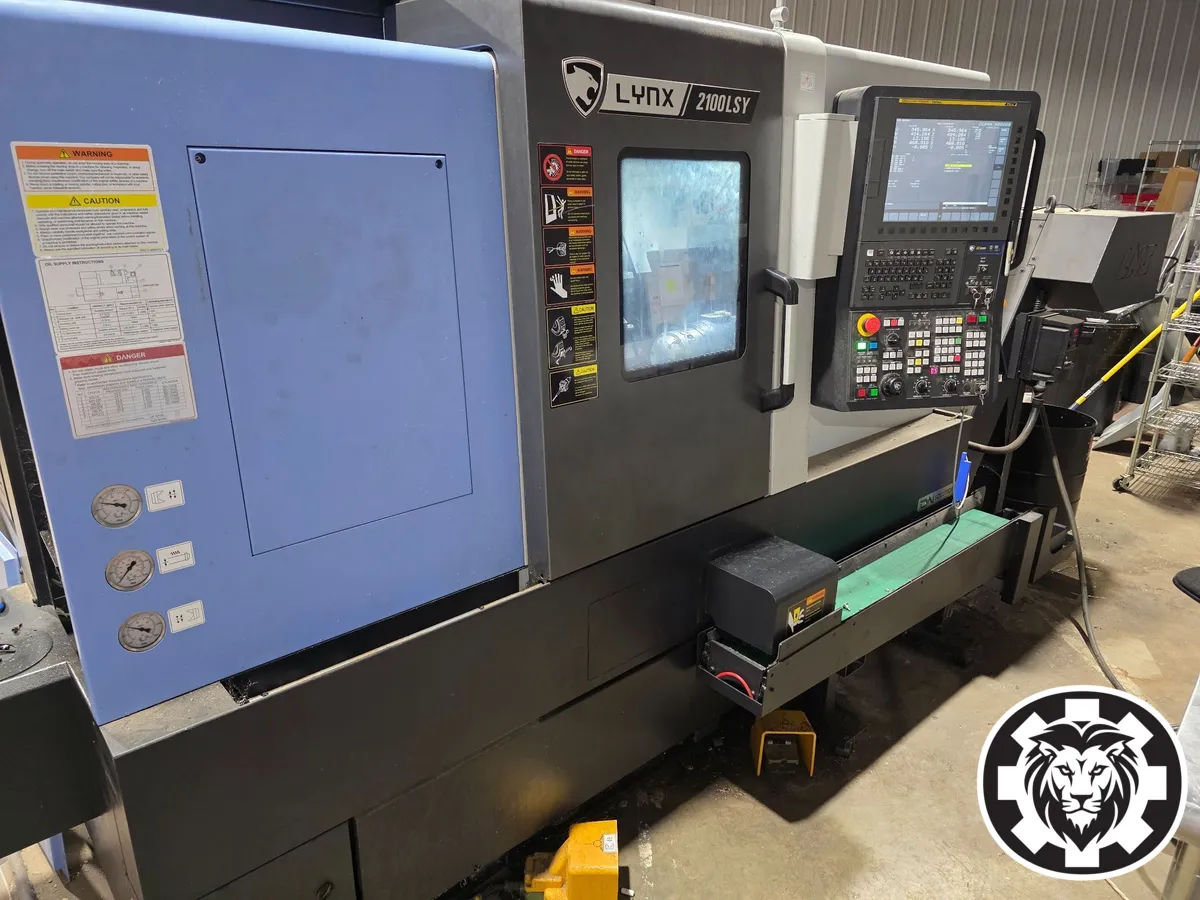

| Swing | 23.6" | 599.44 mm |
| Machining Length | 20" | 508 mm |
| # Axis | 3 | 3 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 11.8" | 299.72 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC | CNC |
| Weight | 9259 lbs | 9259 lbs |
Max. Turning Diameter: 11.8"
Max. Turning Length: 20"
Swing Over Bed: 23.6"
X-Axis Travel: 8.07"
Y-Axis Travel: ±2.065"
Z-Axis Travel: 22"
Main Chuck Size: 8"
Sub-Spindle Chuck Size: 6"
Main Spindle Speed: 4,500 RPM
Sub-Spindle Speed: 6,000 RPM
Bar Capacity: 2.6"
Live Tooling Speed: 6,000 RPM
Turret Capacity: 12 Station / 24 Position
Machine Weight: 9,259 lbs
Sub-Spindle
Y-Axis
Live Tooling
Brand New Chuck for Sub-Spindle Included
2 Radial Live Tools
2 Axial Live Tools
This equipment has been sold. Similar equipment available now is shown below.
