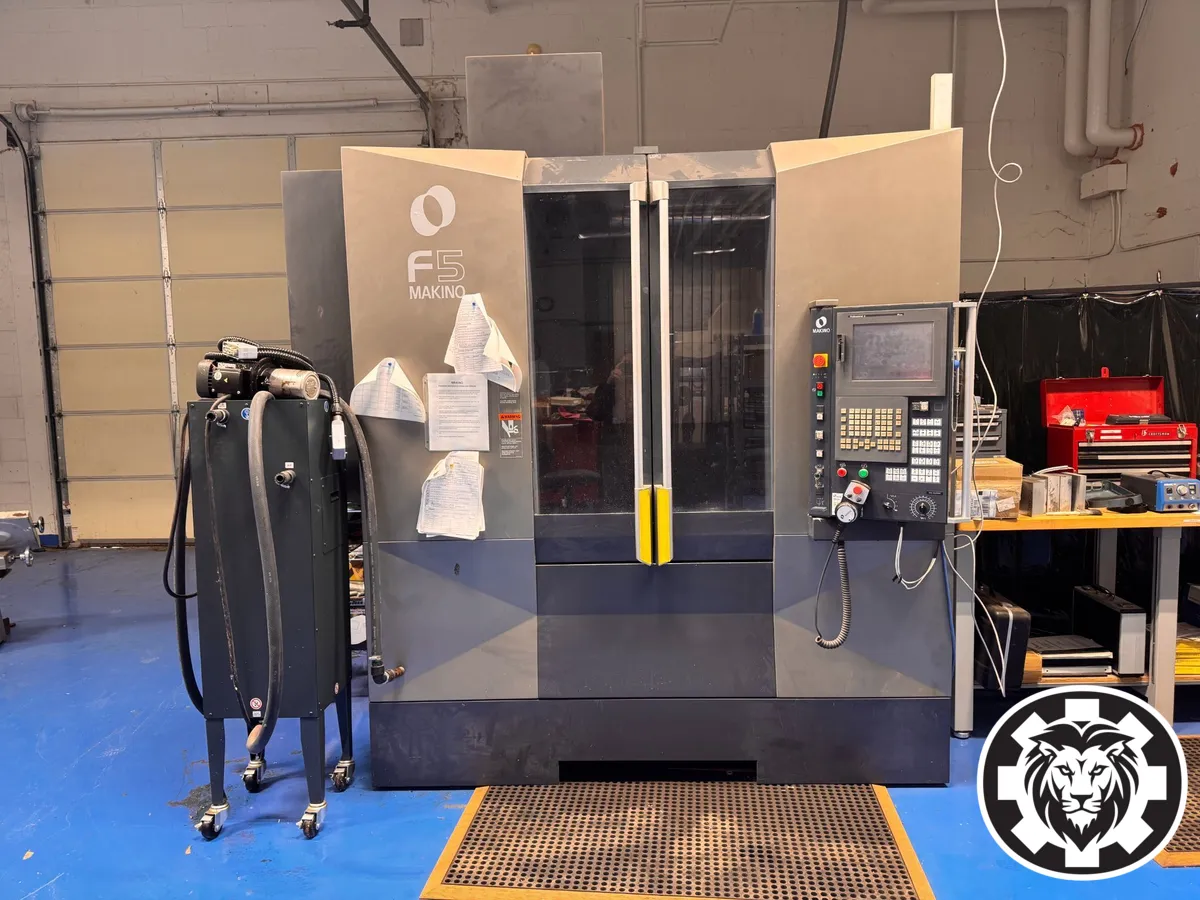

Makino F5 VMC, 2012 - 20,000 RPM, HSK-A63, 30-Tool ATC, Lift-Up Chip Conveyor
Sold

Makino F5 VMC, 2012 - 20,000 RPM, HSK-A63, 30-Tool ATC, Lift-Up Chip Conveyor

Vertical Machining Centers
Manufacturer:
MAKINO
Model:
F5
Year:
2012
Stock #:
551
MAKINO F5 Vertical Machining Center, 2012 model, 3-axis, used. Specs: X: 35.4", Y: 19.7", Z: 17.7", RPM: 20000, 30 automatic tool changers, Table: 19.7"x39.4". Ideal for precision manufacturing needs.
X35.4"899.16 mm
Y19.7"500.38 mm
Z17.7"449.58 mm
RPM20,000 RPM20,000 RPM
# ATC3030
Table-W19.7"500.38 mm
Table-L39.4"1,000.8 mm
# Axis33

Table Size: 39.37" x 19.69"
Spindle Speed: 20,000 RPM
Spindle Taper: HSK-A63
Spindle Motor: 20.1 HP Duty Rated / 14.8 HP Continuous
Max. Spindle Torque: 23.6 ft-lbs
Tool Capacity: 30 ATC
Tool Offsets: 64 Total
Additional Work Offsets: 48
Electrical: 60 Hz
Energized Time: 2,150 Hours
Operation Time: 652 Hours
Cutting Time: 529 Hours
Spindle Spin Time: 697 Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Makino Professional 5 Control
20,000 RPM HSK-A63 Spindle
30-Tool ATC
Lift-Up Scraper Chip Conveyor, Left Discharge
Rear Coolant Tank with Chip Augers
Nozzle Coolant
Through Spindle Air
Automatic Air Blow
Scale Feedback for X, Y, and Z Axes
Rigid Tapping
Super GI.4 Control
Die-Mold Package
High Precision Specification
Centralized Auto Grease
Air Dryer
Fully Enclosed Splash Guard
Splashguard / ATC Door Interlock
Portable MPG
Signal Light
Fluorescent Work Light
Transformer
4th Axis Rotary Table / Fixture Shown in Photos

This equipment has been sold. Similar equipment available now is shown below.
