Amera-Seiki VTC-5 VMC, 2022

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
AMERA SEIKI
Model:
VTC-5
Year:
2022
Stock #:
549
Status:
For Sale

Description

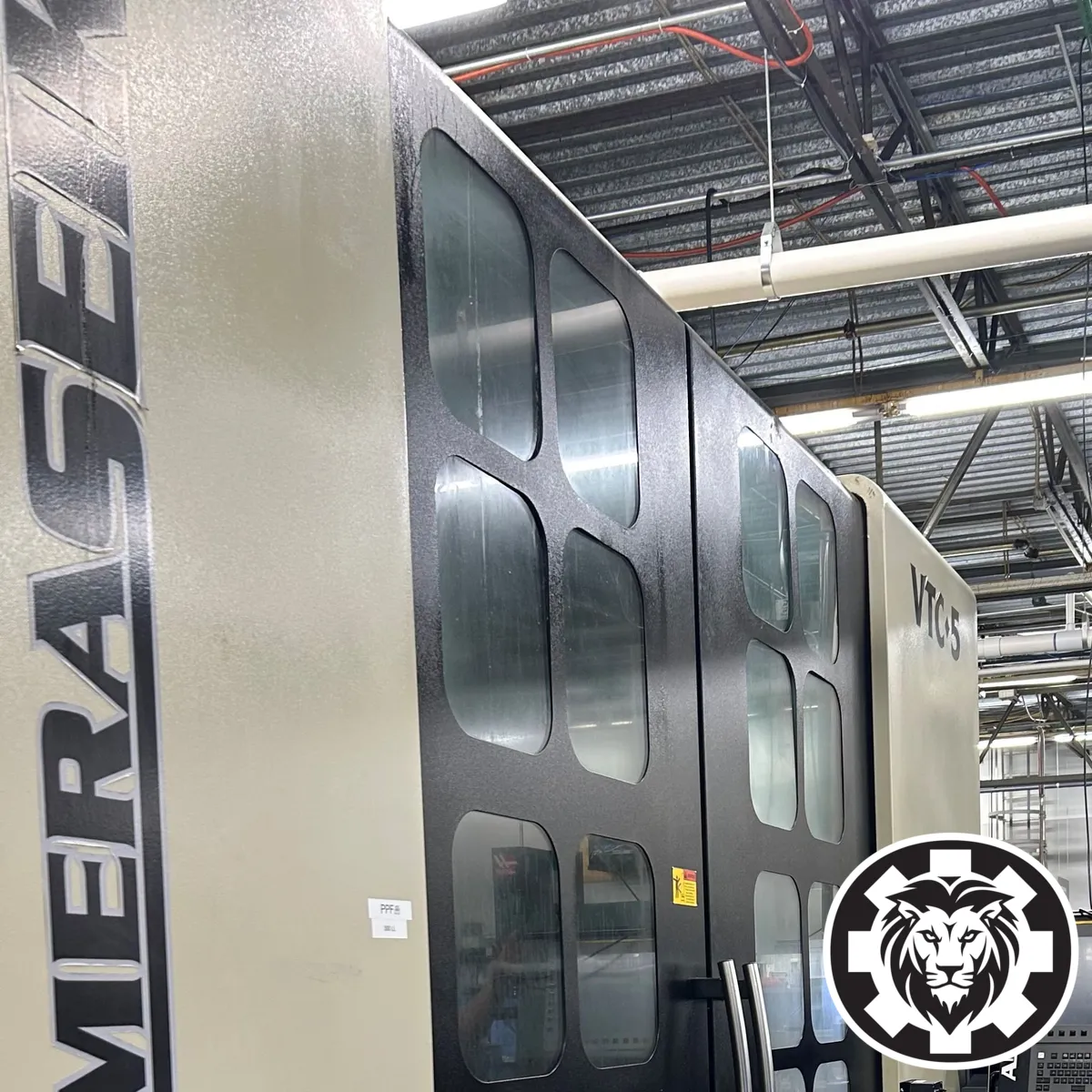

2022 AMERA SEIKI VTC-5 Vertical Machining Center, used. Specs: X 86.6", Y 24.4", Z 24.4", 20.0 HP, 10,000 RPM, CT-40 taper, 32-tool ATC, 3-axis. Ideal for precision machining tasks with ample power and capacity.

X86.6"2,199.6 mm
Y24.4"619.76 mm
Z24.4"619.76 mm
Power20 hp14.9 kW
RPM10,000 RPM10,000 RPM
# ATC4040
TaperBT 40 / CAT 40BT 40 / CAT 40
# Axis33
ControlCNCCNC
Dimensions160 x 229 x 118160 x 229 x 118
Weight3128331283

X-Axis Travel: 86.6"
Y-Axis Travel: 24.4"
Z-Axis Travel: 24.4"
Table Size: 98.4" x 23.6"
Max. Table Load: 3,968 lbs
Spindle Taper: BT 40 / CAT 40
Max. Spindle Speed: 8,000 RPM, optional 10,000 RPM
Rapid Traverse: 1,260 IPM
Cutting Feedrate: 394 IPM
Spindle Motor: 14.7 / 20 HP
Tool Capacity: 24 / 32 / 40 ATC
Max. Tool Diameter: 2.76"
Max. Tool Length: 11.8"
Max. Tool Weight: 15.4 lbs
Machine Weight: 31,283 lbs
Machine Dimensions: 160" x 229" x 118"
Control: Fanuc Oi-MB

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Full Enclosure Guard
Rigid Tapping
Remote Handwheel
Halogen Work Light
Beacon Light
Auto Power Off
Auto Lube System
Spindle Air Purge System
Spindle Air Blow System
Coolant System
Heat Exchanger for Electrical Box
