Haas VF-2SS VMC, 2023 - Thru-Spindle Coolant Ready, 4th Axis Wiring, Chip Auger, Renishaw WIPS
Sold

Haas VF-2SS VMC, 2023 - Thru-Spindle Coolant Ready, 4th Axis Wiring, Chip Auger, Renishaw WIPS

Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-2SS
Year:
2023
Stock #:
543

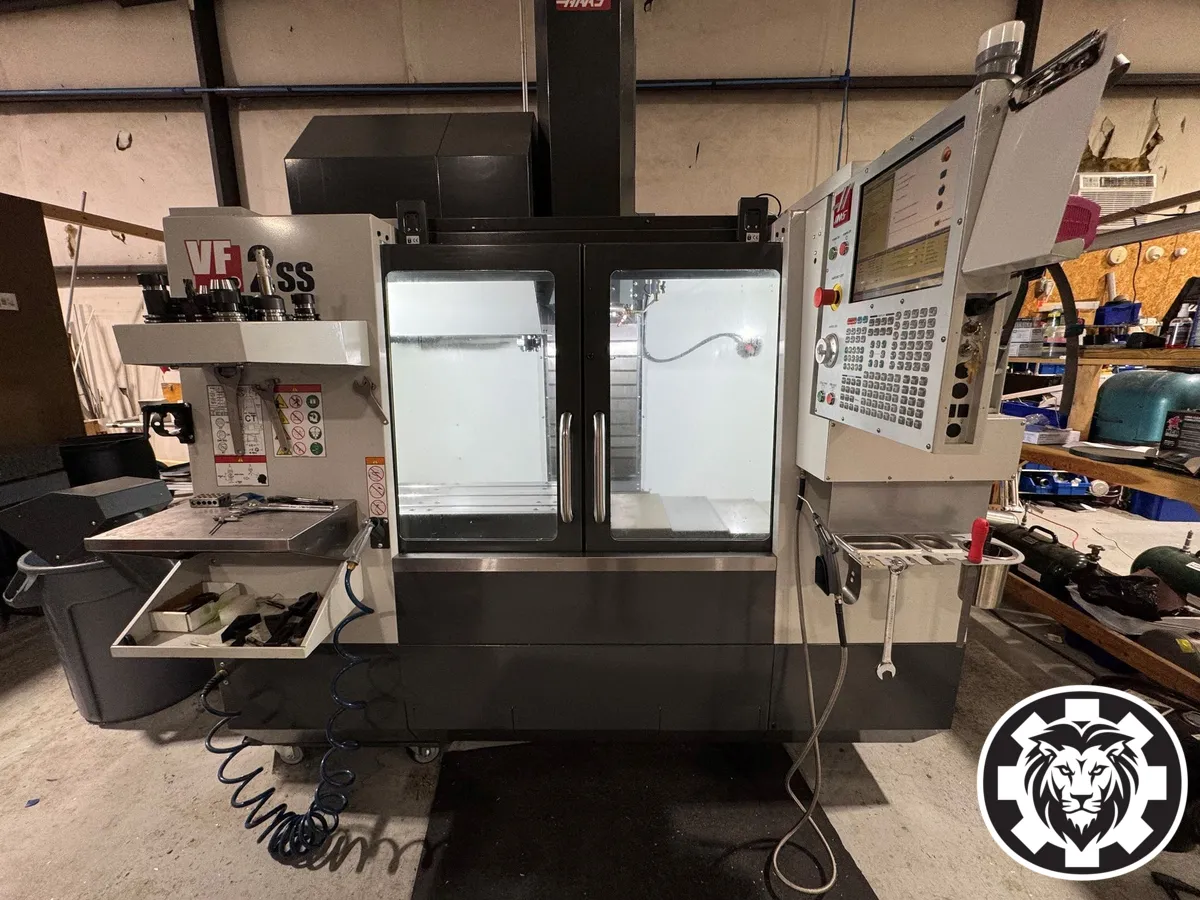

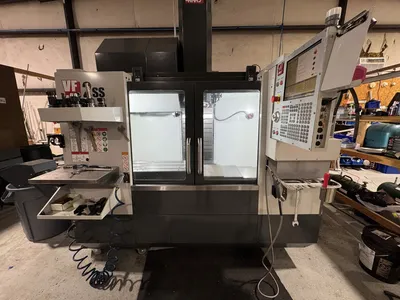

2023 HAAS VF-2SS Vertical Machining Center featuring 30"x16"x20" travel, 30 HP, 12000 RPM, 24-tool ATC, supporting CT/BT 40 taper. Compact 14"x36" table design, robust used equipment ideal for precision tasks.
X30"762 mm
Y16"406.4 mm
Z20"508 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC301301
Taper4040
Table-W14"355.6 mm
Table-L36"914.4 mm
Weight78007800

Specs:
Year: 2023
Make: Haas
Model: VF-2SS
Machine Type: VMC
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Table Size: 36" x 14"
Max. Table Weight: 1,500 lbs
Spindle Taper: 40 Taper
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Drive: Inline Direct-Drive
Max. Spindle Torque: 90 ft-lbf @ 2,000 RPM
Tool Changer Capacity: 30+1
Max. Cutting Feedrate: 833 IPM
Rapid Traverse Rate: 1,400 IPM
Coolant Capacity: 55 Gallons
Air Required: 4 SCFM @ 100 PSI
Electrical: 220 VAC, 3 Phase
Full Load Amps: 70 Amps
Approx. Machine Weight: 7,800 lbs
Approx. Weight w/ Conveyor: 8,380 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

WIPS (Wireless Intuitive Probing System)
Through Spindle Coolant Ready
4th Axis Prewire
Chip Auger
High Speed Machining
Early Power Failure Detection Module
Ethernet Interface
Rigid Tap
Power Surge Protection
WiFi
Custom Macros
Spindle Orientation
Coordinate Rotation and Scaling
(THIS MACHINE DOES NOT HAVE A COOLANT PUMP)

This equipment has been sold. Similar equipment available now is shown below.
