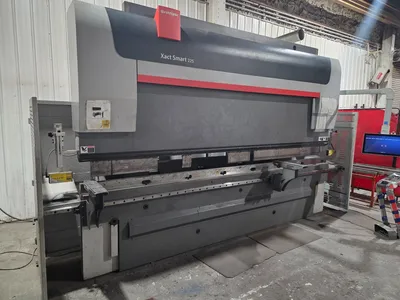

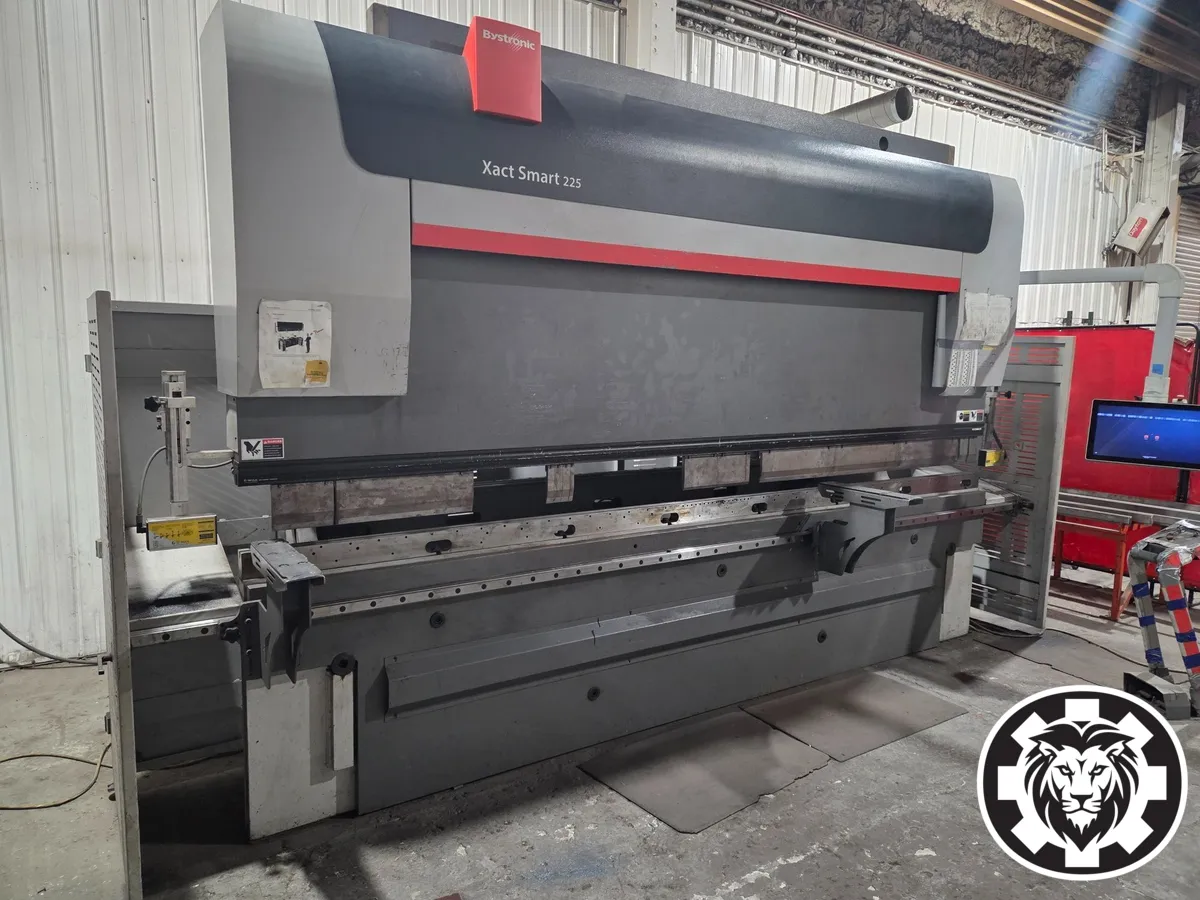

248 Ton x 13' Bystronic Xact Smart 225/4100 CNC Press Brake, 2016 - 5-Axis, Tooling Included
Have one to sell?
ConditionUsed
1 available
BYSTRONIC XACT SMART 225/4100 press brake, 2016 model, used condition, 225-ton hydraulic capacity. Features a 4100mm overall length with a 3420mm space between housings and a 200mm stroke, suitable for various bending applications.
Model: Xact Smart 225/4100
Year: 2016
Tonnage: 248 Tons
Overall Length: 13'
Control: ByVision 22" Touchscreen CNC Control
Backgauge: 5-Axis CNC Backgauge
Main Motor: 20 HP / 15 kW
Operating Voltage: 480V AC, 3 Phase
Frequency: 60 Hz
Control Voltage: 24V DC
Total FLA: 50A
Largest Motor FLA: 31A
Short Circuit Rating: 65 kA
Machine Weight: 36,000 lbs
Bystronic ByVision Touchscreen Controller
5-Axis CNC Backgauge
Separate Computer with Bystronic Modeling / Programming Software
4 Full Sets of Sectionalized Upper Tooling
6 Full Sets of Sectionalized Lower Tooling
Tooling for Thin Gauge Through 1/2" Mild Steel
Under Power
Low Usage Since New
Excellent Condition
