Haas UMC-500 5-Axis VMC, 2021 - 30+1 ATC, 300 PSI Coolant Through Spindle, Chip Conveyor, WIPS
Have one to sell?
ConditionUsed
1 available

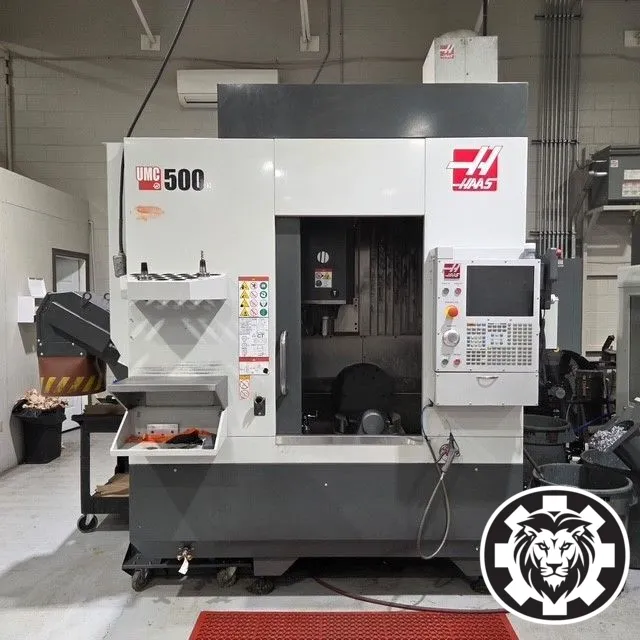

HAAS UMC-500 Universal Machining Center, 2021, used. 5-axis capability with 24" X, 16" Y, 16" Z travel. Power: 30 HP, 8100 RPM, 31-tool ATC, CT/BT 40 taper. Suitable for complex machining needs.
Table Size: 15.7" Platen Diameter
X-Axis Travel: 24"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Table Load Capacity: 500 lbs.
Spindle Nose to Platter: 4" - 20"
Max. Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Rapid Feedrate: 1,200 IPM
Max. Cutting Feedrate: 833 IPM
Max. Tool Weight: 12 lbs.
Tool Changer: 30+1 Side Mount
Machine Weight: 11,900 lbs.
Dimensions: 98" L x 128" D x 110" H
Electrics: 220V / 3 Phase / 60 Hz
Haas CNC Control
1 GB Memory
300 PSI Coolant Through Spindle
Belt-Type Chip Conveyor
Auxiliary Coolant Filter
Chip Strainer Filter Kit
CABCOOL Cabinet Cooler
Dynamic Work Offset
Tool Center Point Control
Enclosure Exhaust
Ethernet Interface
Haas Connect
Second Home Position
High Speed Machining
Hydraulic Vise Ready
Media Display M-Code
Programmable Coolant
Remote Jog Handle XL
Rotary Scales
Rigid Tapping
Top Cover
WiFi
WiFi Camera
WIPS / Renishaw Probing System
Coordinate Rotation & Scaling
Spindle Orientation
Macro
