Equipment
CNC Machining Centers
Vertical Machining Centers
Haas VF-2YT VMC, 2015 - 1000 PSI Through Spindle Coolant, Multi-Auger Chip Removal, 40 ATC

Haas VF-2YT VMC, 2015 - 1000 PSI Through Spindle Coolant, Multi-Auger Chip Removal, 40 ATC

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-2YT
Year:
2015
Stock #:
539
Status:
For Sale

Description

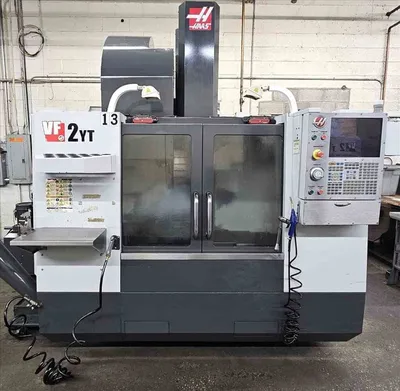

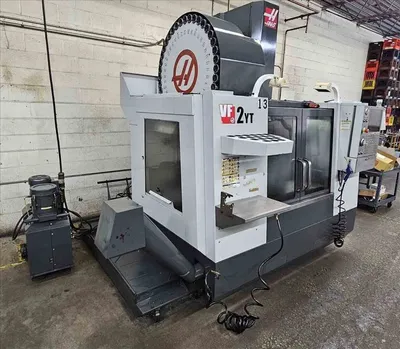

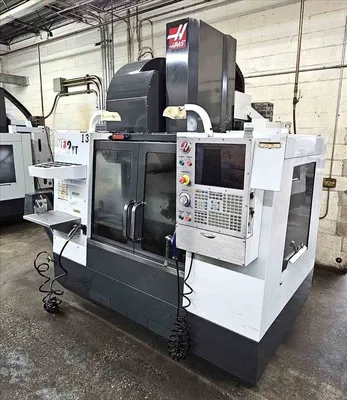

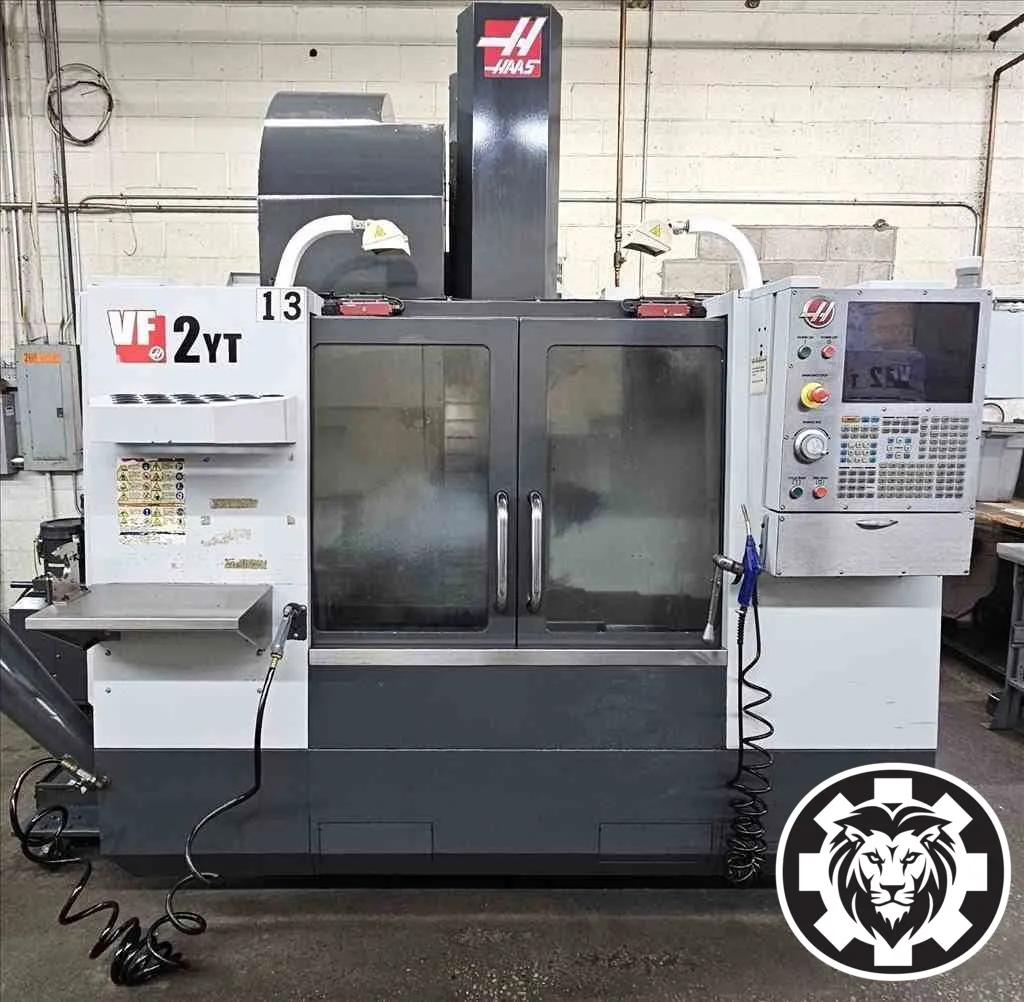

HAAS VF-2YT Vertical Machining Center, 2015 model in used condition. Features XYZ travel of 30" x 20" x 20", 30 HP, 8100 RPM, 20-tool ATC, and CT/BT 40 taper. Table size: 18" x 36". Ideal for precise machining needs.

X30"762 mm
Y20"508 mm
Z20"508 mm
Power30 hp22.4 kW
RPM8,100 RPM8,100 RPM
# ATC2020
TaperCT or BT 40CT or BT 40
Table-W18"457.2 mm
Table-L36"914.4 mm

X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 36" x 18"
Spindle Taper: 40
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Tool Changer: 40 ATC
Rapid Traverse X-Axis: 1,000 IPM
Rapid Traverse Y-Axis: 1,000 IPM
Rapid Traverse Z-Axis: 1,000 IPM
Approximate Weight: 7,800 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

1000 PSI Through Spindle Coolant
High Pressure Flood Coolant
Multi-Auger Chip Removal System
95-Gallon Coolant Tank
