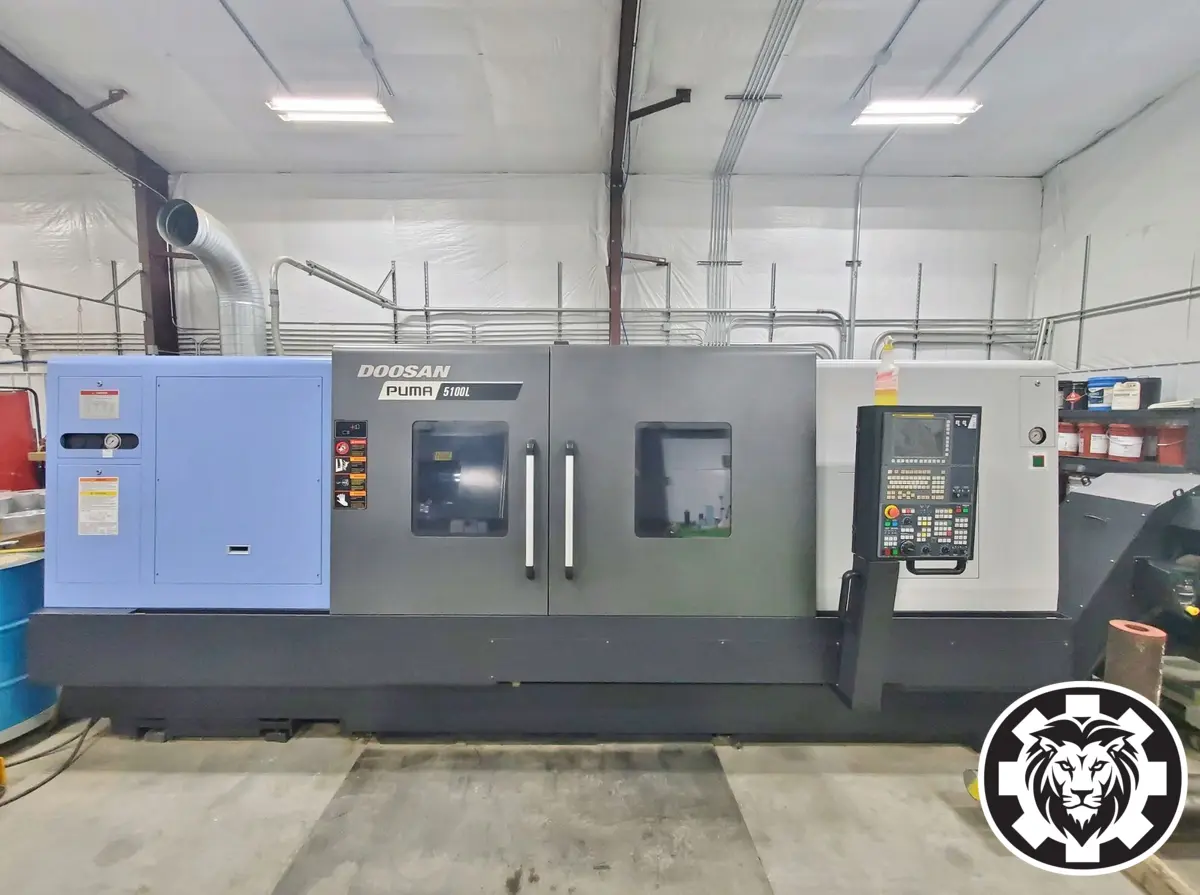

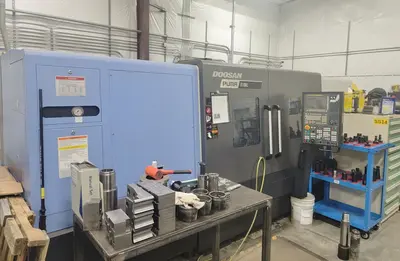

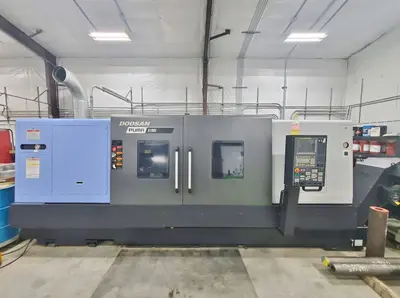

Doosan Puma 5100LC CNC Lathe, 2018 - 24" Chuck, Big Bore, Tailstock, Chip Conveyor
Have one to sell?
ConditionUsed
1 available
Doosan PUMA 5100LC CNC Lathe, 2018, used. Features a 35" swing and 84" machining length. Ideal for precision tasks requiring robust performance.
Max Swing: 35.4"
Max Cutting Diameter: 25.6"
Max Cutting Length: 80.4"
X-Axis Travel: 14.3"
Z-Axis Travel: 84.8"
Chuck Size: 24"

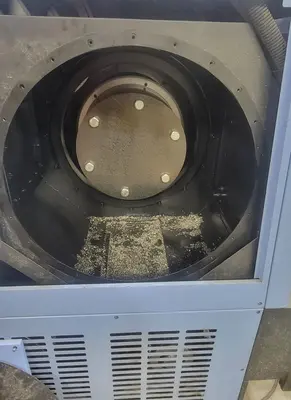

Spindle Bore: 10.8"
Spindle Nose: ISO 702-4 No. 20
Spindle Motor: 60 HP
Spindle Speed: 1,000 RPM
Rapid Traverse Rate X-Axis: 629 IPM
Rapid Traverse Rate Z-Axis: 787 IPM

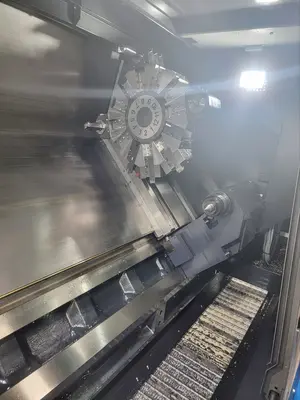

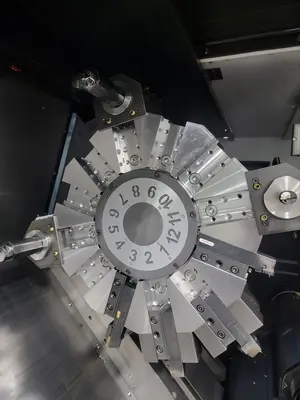

Turret Positions: 12
Turret Type: BMT
Dimensions: 270" x 90" x 90"
Weight: 27,000 LBS

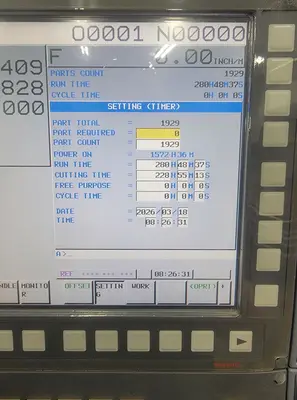

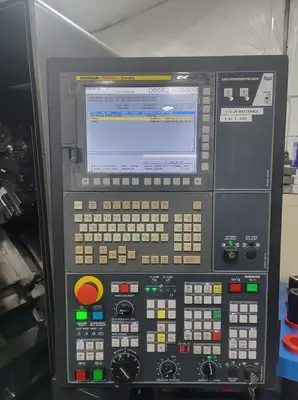

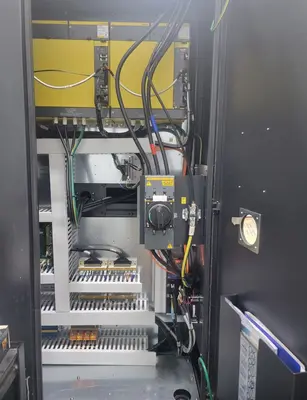

Fanuc 0i-TF Control (EZ-Guide i)
2-Speed Gearbox (60 HP Peak)
Box Ways

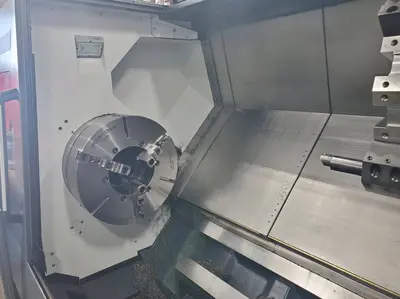

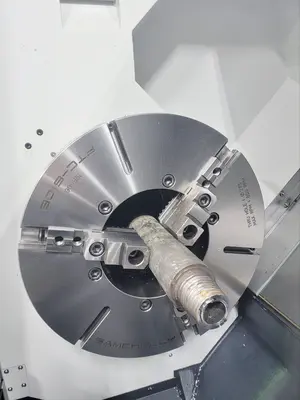

24" 3-Jaw Samchully FTC-610B Manual Chuck
Big Bore 10.8" Spindle Bore
Long Bed (80.4" Turning Length)

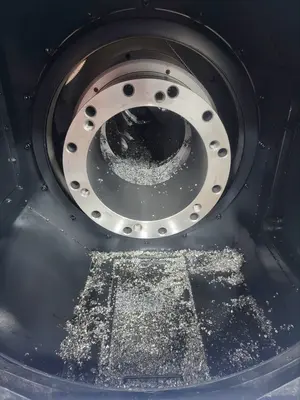

Rear Chuck Adapter

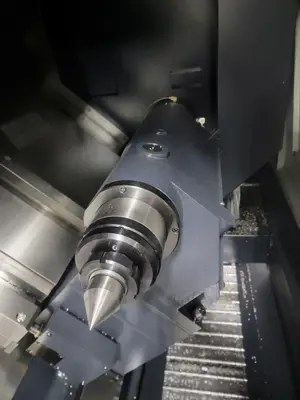

Programmable Tailstock
Chip Conveyor
High-Pressure Coolant Interface
Arbitrary Speed Threading
Ethernet & USB
