Haas VF-2B CNC VMC, 2007 - Chip Conveyor, Through Spindle Coolant

Haas VF-2B CNC VMC, 2007 - Chip Conveyor, Through Spindle Coolant

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-2B
Year:
2007
Stock #:
524
Status:
For Sale

Description

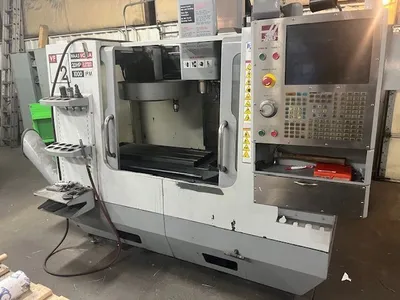

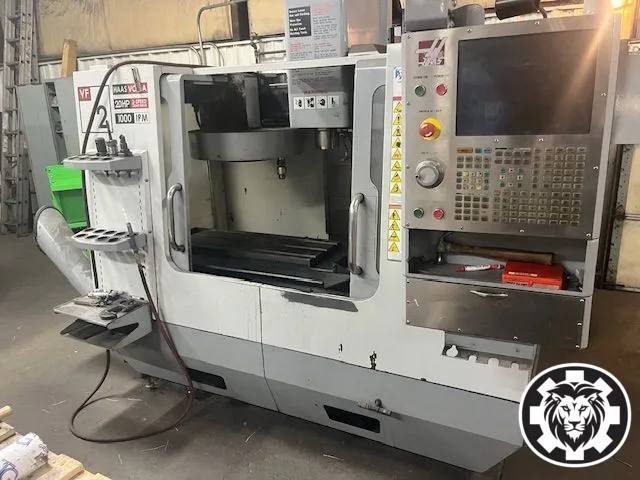

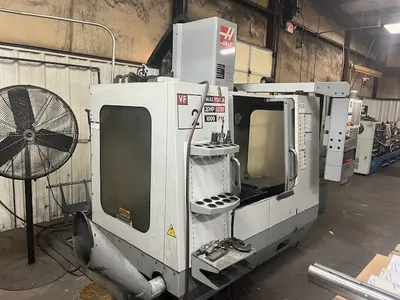

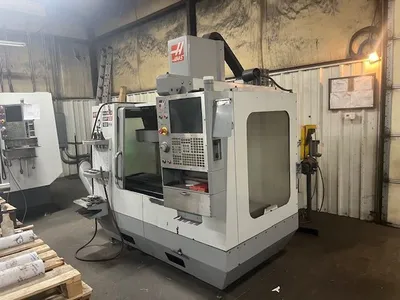

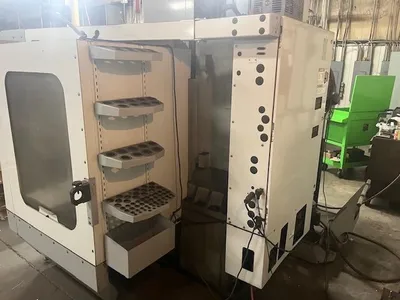

2007 HAAS VF-2B Vertical Machining Center in used condition. Key specs: X/Y/Z travels 30"/16"/20", power 20 HP, 7500 RPM, 24-tool ATC, 14"x36" table size. Ideal for precision machining tasks needing robust performance.

X30"762 mm
Y16"406.4 mm
Z20"508 mm
Power20 hp14.9 kW
RPM10,000 RPM10,000 RPM
# ATC2020
TaperCAT 40CAT 40
Table-W14"355.6 mm
Table-L36"914.4 mm
ControlCNCCNC
Dimensions88 x 93 x 10688 x 93 x 106
Weight85008500

X-Axis Travels: 30"
Y-Axis Travels: 16"
Z-Axis Travels: 20"
Table Size: 36" x 14"
Max Table Load: 3,000lbs
Spindle Nose to Table: 4" - 24"
Spindle Taper: CAT 40
Spindle Speed: 10,000 RPM
Spindle Motor: 20 HP
ATC: 20 Tools
Max Tool Weight: 12lbs
Max Tool Length: 11"
Max Tool Diameter: 3.5"

Approximate Machine Dimensions: 88" x 93" x 106"
Approximate Machine Weight: 8,500lbs
Electrical: 208V, 3-Phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Chip Conveyor
Through Spindle Coolant
