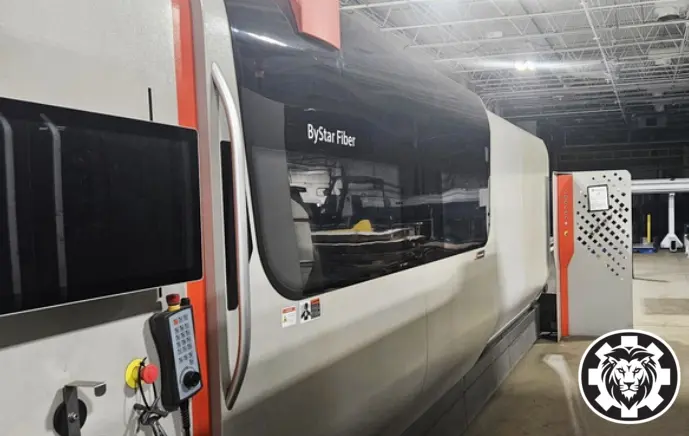

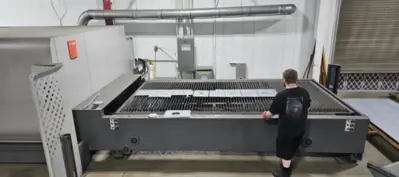

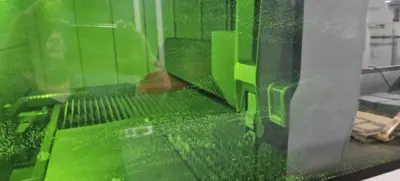

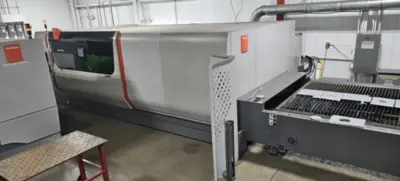

Bystronic Bystar 4020 Fiber Laser 2018 - Fiber 6000 Laser source, Automatic Nozzle Changer
Have one to sell?
ConditionUsed
1 available
2018 Bystronic Bystar 4020 Fiber Laser Cutter. Features 6000W fiber laser source, automatic nozzle changer with 64 positions, and detection eye. Sheet capacity 80"x160". Ideal for large-scale precision cutting. Machine weight 32,000 lbs.
Sheet Width: 80”
Sheet Length: 160”
Power: 6,000W
Max Workpiece Weight: 4,190 Lbs
Max Positioning Speed Simultaneous: 6,650 In/ Min
Max Position Speed Parallel Axis X/Y: 4,700 In/Min
X - Axis Travel: 162”
Y - Axis Travel: 83”
Z - Axis Travel: 4”
Machine Weight: 32,000 Lbs
Fiber 6000 Laser Source
"Version 2” Head
Automatic Nozzle Changer w/ 64 Positions
Detection Eye
Dust Extraction
Observer Hardware
2018 Bystronic Bystar 4020 Fiber Laser Cutter. Features 6000W fiber laser source, automatic nozzle changer with 64 positions, and detection eye. Sheet capacity 80"x160". Ideal for large-scale precision cutting. Machine weight 32,000 lbs.
Imperial
| Sheet-W | 80" |
| Sheet-L | 160" |
| Wattage | 6000 w |
| IPM | 84 mpm |
| X | 162" |
| Y | 83" |
| Z | 4" |
| Weight | 32000 Lbs |
Sheet Width: 80”
Sheet Length: 160”
Power: 6,000W
Max Workpiece Weight: 4,190 Lbs
Max Positioning Speed Simultaneous: 6,650 In/ Min
Max Position Speed Parallel Axis X/Y: 4,700 In/Min
X - Axis Travel: 162”
Y - Axis Travel: 83”
Z - Axis Travel: 4”
Machine Weight: 32,000 Lbs
Fiber 6000 Laser Source
"Version 2” Head
Automatic Nozzle Changer w/ 64 Positions
Detection Eye
Dust Extraction
Observer Hardware
