| Tonnage | 190 T | 172.365 t |
| Type | HYD | HYD |
| Overall Length | 13.42" | 0.3 m |
| Between Housings | 14.45" | 0.4 m |
| Stroke | 13.78" | 350.01 mm |
| Control | CNC | CNC |
| Weight | 33100 | 33100 |
Tonnage: 190 Tons
Bending Length: 161"
Width Between Columns: 173.4"
Max. table/press beam distance: 24.4"
Usable open height with manual and hydraulic
tool clamp: 19.7"
Usable open height with TRUMPF QuickClamp: 22.8"
Working Height: 41.3"
Stroke: 13.78"
X axis traverse path: 23.6"
R axis traverse path: 5.9"
Machine Weight: 33,100 LBS
T300 CNC Control with 3-D Visualization Control

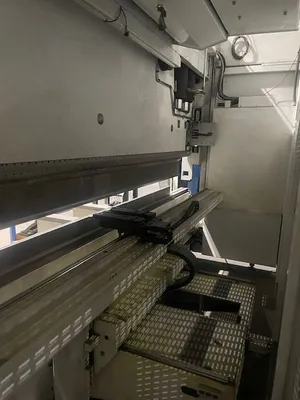

4- Axis Backgauge System

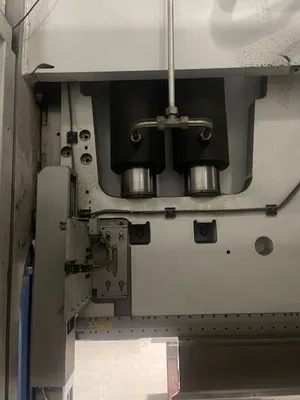

Electro Hydraulic Down Stroking Drive with 4-Cylinder Technology
Spherical Ram Suspension, with Ram Tilt
Glass Scale Measuring System
Oil Cooler
Long Life Synthetic Hydraulic Oil

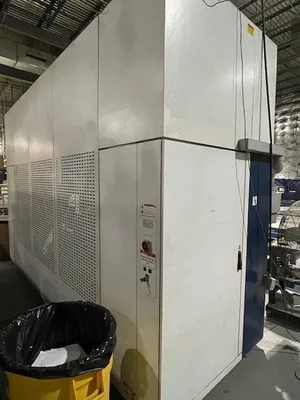

Switch Cabinet Air Conditioning
Multifunction Foot Switch
CNC Hydraulic and Self-Regulating Crowning System

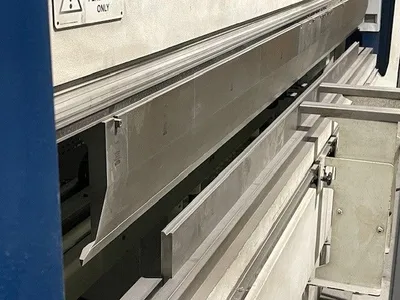

Upper and Lower Pneumatic Clamping System
BendGuard Safety Device
Rear Area Work Lighting
Networking
