52″ King VTL, Ram/Turret Head and Side Head – Under Power
Sold

52″ King VTL, Ram/Turret Head and Side Head – Under Power

Vertical Boring Mills (incld VTL)
Manufacturer:
KING
Model:
52
Year:
1953
Stock #:
492

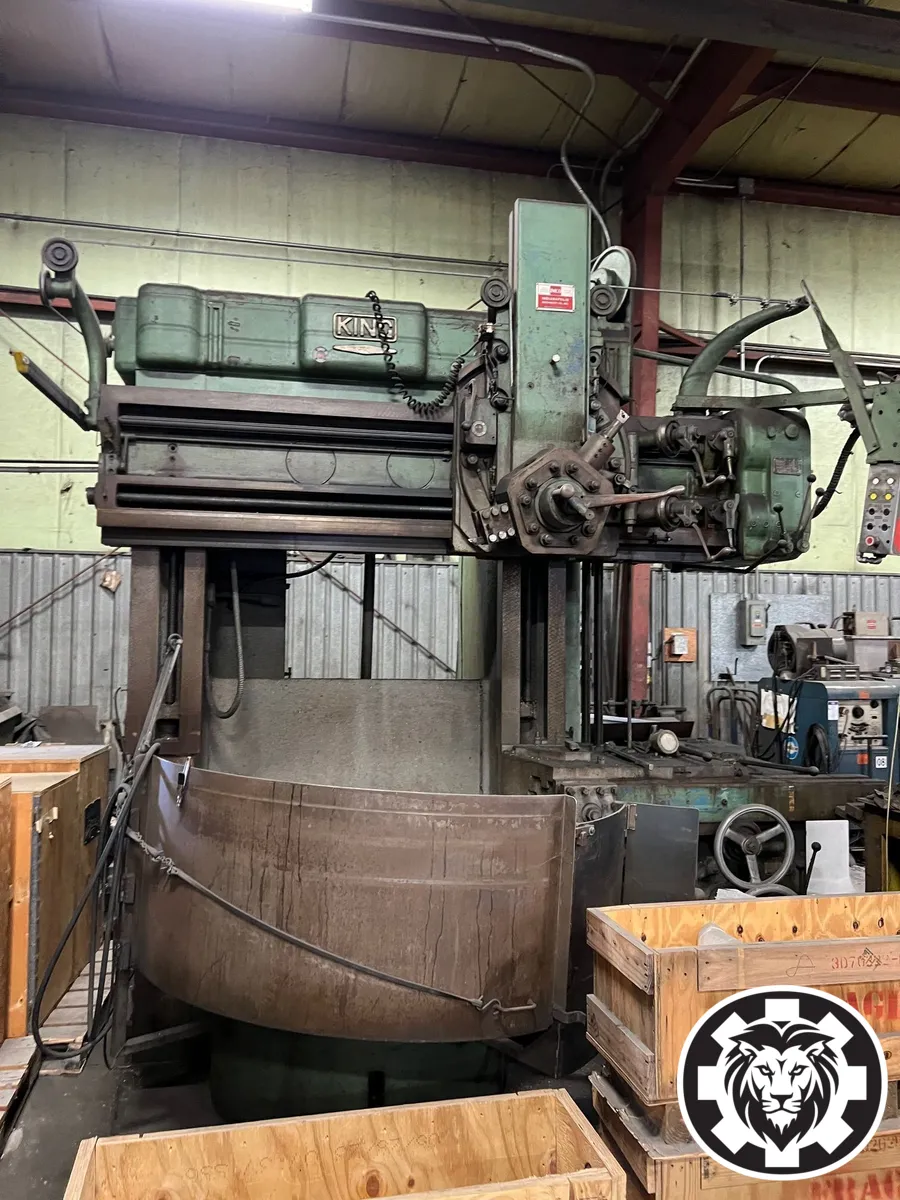

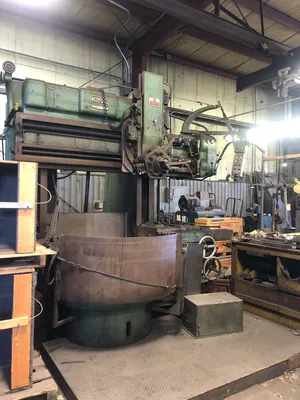

KING Model 52 Vertical Boring Mill. Features a 52" table diameter, 58" swing, 40" work height, and 25 HP power. Ideal for heavy-duty machining operations. Used condition, great piece for operations needing robust equipment.
Table Dia52"1,320.8 mm
Swing58"1,473.2 mm
Work Ht-U/R44"1,117.6 mm
Power25 hp18.6 kW
RPM72 RPM72 RPM
Dimensions118 x 118118 x 118
Weight32500 Lbs32500 Lbs

4-Jaw Chuck: 52"
Max Swing with Side Head Below Table: 58"
Height Under Rail: 44"
Cross Rail Travel: 25"
Table Speed:3 To 72 RPM
Feeds:003 To 500 IPR
Main Motor: 25 Hp.
Turret Head Travel Left To Right: 30-3/8"
Turret Head Swivel: 30 Degrees
Turret Ram Head Turret Travel Up & Down: 37"
Max. Distance Table To Turret Face: 48.25"
Turret Head Position: 5
Side Head Travel In & Out: 24"
Side Head Travel Up & Down: 37"
Machine Weight: 32,500 Lbs.
Machine Floor Space: 118" x 118"
Machine Height:11'-2"
Power Elevation Of Rail: Yes
Rapid Traverse To Both Head: Yes
4 Way Tool Post On Side Head: Yes
Side Head: Yes
Turret Head: Yes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
