| Swing | 21.65" | 549.91 mm |
| Machining Length | 22.13" | 562.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
Max Swing Over Bed: 21.65"
Max Swing Over Carriage: 15.35"
X-Axis Travel: 19.53"
Z-Axis Travel: 22.83"
Max Machining Length 22.13"
Turning Diameter: 13.78"
Spindle Speed: 4,500 RPM
Spindle Bore / Bar Capacity: 2.99" / 2.5"
Spindle Motor: 20 H.P.
Spindle Nose: A2-8

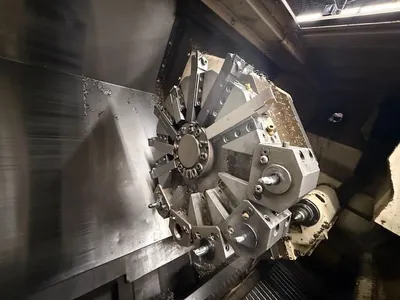

Turret Stations: 12
Tailstock Taper MT#4
Air Chuck
Parts Catcher

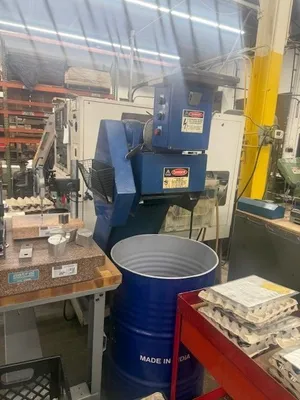

Chip Conveyor
Tool Holders
