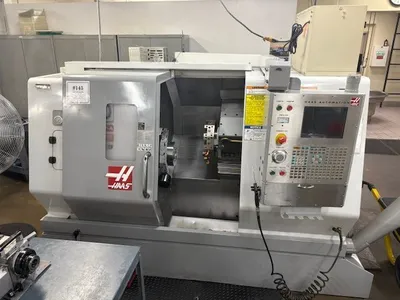

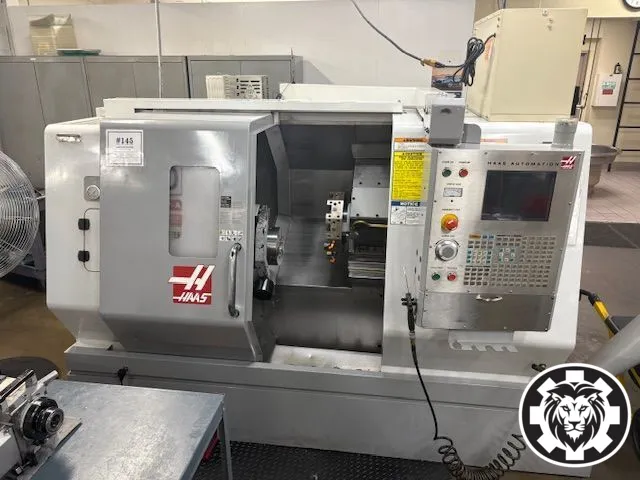

Haas SL20 CNC Lathe, 2005

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
HAAS
Model:
SL-20
Year:
2005
Stock #:
463
Status:
For Sale

Description

HAAS SL-20 CNC Lathe, 2005, used. Features: 23" swing, 24" machining length, 8" chuck size, 2" bar capacity, 20 HP, 4000 RPM max speed, 10.3" turning diameter. Tailstock not included. Ideal for precision machining tasks.

Swing31.75"806.45 mm
Machining Length20"508 mm
# Axis22
Chuck Size8"203.2 mm
Bar Capacity2"50.8 mm
Power20 hp14.9 kW
Max RPM3,400 RPM3,400 RPM
Turning Dia10.3"261.62 mm
TailstockNoNo
ControlCNCCNC
Dimensions112 x 64 x 73112 x 64 x 73
Weight75007500

Max Turning Diameter: 10.3"
Max Turning Length: 20.0"
Swing Over Front Apron: 31.75"
Swing Over Cross Slide: 20.00"
X-Axis Travel: 9.0"
Z-Axis Travel: 20.0"

Max Spindle Speed: 3,400 RPM
Spindle Nose: A2-6
Bar Capacity: 2"
Spindle Bore: 2.312"
Spindle Motor: 20 HP
Spindle Torque: ~150 ft-lbs at 600 RPM

Chuck Size: 8"
Chuck Type: 3-Jaw Hydraulic

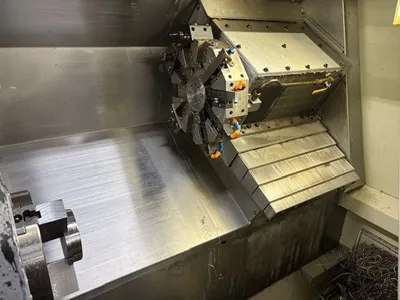

Turret Stations: 10-Station Bolt-On Turret
Max Cutting Feed: 500 IPM

Electrical: 360-480V, 3-Phase
Approximate Machine Dimensions: 112" x 64" x 73"
Approximate Machine Weight: 7,500lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
