| Swing | 30" | 762 mm |
| Machining Length | 34" | 863.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
Swing Front Apron: 30"
Cross Slide: 14.5"
Distance Between Centers: 39"
Max Turning Diameter: 16"
Max Turning Length: 34"
X Axis Travel: 11.3"
Z Axis Travel: 34"
C Axis Contouring: 0.001ยบ
B Axis Travel (Sub Spindle): 33.5"
Max Spindle Speed: 3400 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6
Spindle Bore: 3.5"
Bar Capacity: 3.0"
Max Sub Spindle Speed: 4000 RPM
Sub Spindle Motor: 8 HP
Max Live Tooling Speed: 3000 RPM

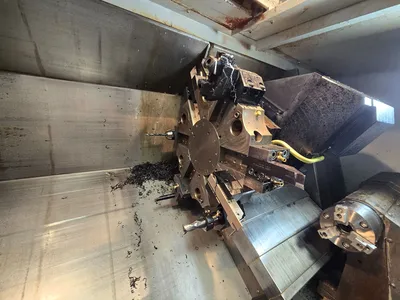

Turret Positions: 12

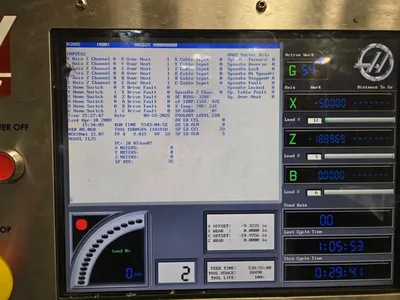

Haas CNC Control
Full C Axis
Sub Spindle
Tool Presetter

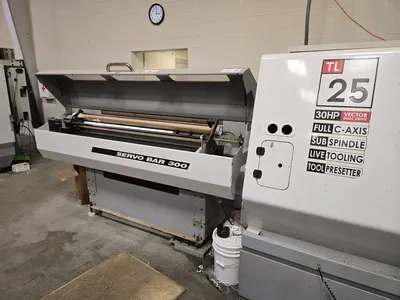

Servo Bar 300 Bar Feeder
Air Blast
Chip Conveyor
High Pressure Pump
