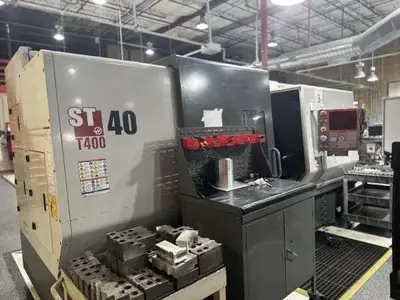

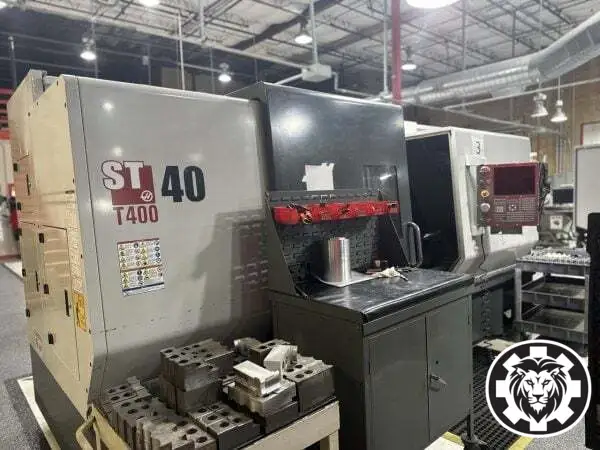

Haas ST-40 CNC Lathe, 2013 - Chip Auger, Programmable Tailstock, Automatic Tool Presetter
Have one to sell?
ConditionUsed
1 available
2013 HAAS ST-40 CNC Lathe for sale. Features include a 34.5" swing, 1118.0 mm machining length, 15.0" chuck size, 4.0" bar capacity, and 40.0 HP power. Max RPM of 2400.0 and 25.5" turning diameter. Tailstock not included.

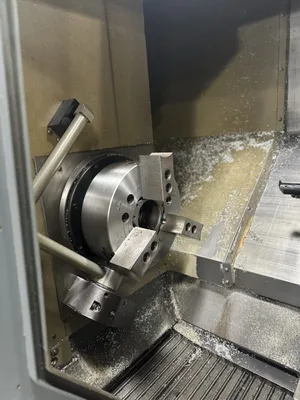

Chuck Size: 15"
Max Part Swing: 35"
Max Cutting Diameter: 30"
Max Cutting Length: 44"
Bar Capacity: 4"
X-Axis: 20"
Z-Axis: 44"
Rapid Speeds: 710 IPM
Spindle Speed: 2,400 RPM
Spindle Nose: A2-8
Spindle Motor: 40 HP
Spindle Bore: 4.62"

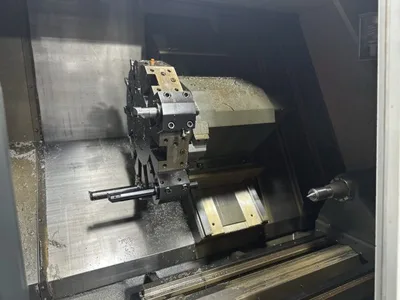

Turret Capacity: 12 Station
Spindle Time: 3,057 hours
Dimensions: 216"x98"x120"
Weight: 21,740 lbs

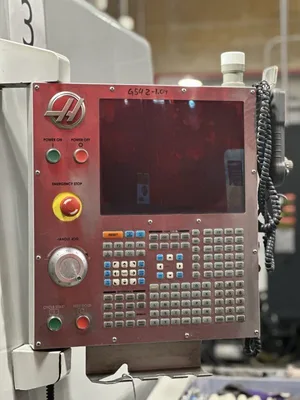

Haas Control

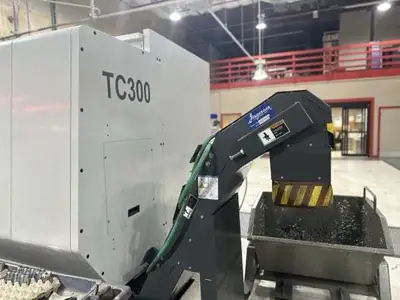

Chip Auger
Programmable Tailstock
Automatic Tool Presetter
