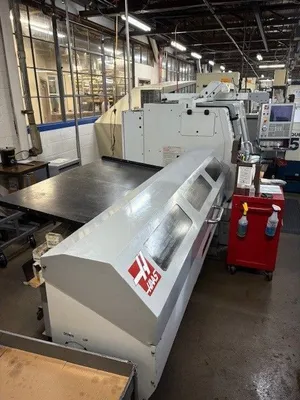

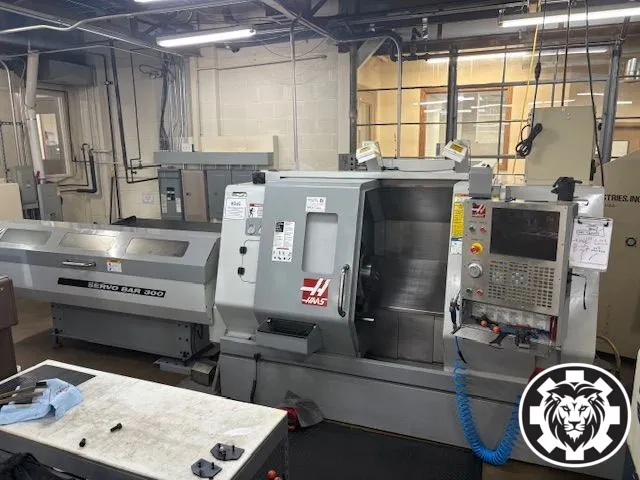

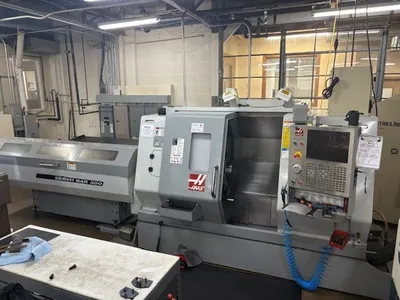

Haas SL20TB CNC Lathe, 2006 - Tailstock, Bar Feeder
Have one to sell?
ConditionUsed
1 available
HAAS SL-20TB 2006 CNC Lathe for sale: 23" swing, 24" machining length, 10" chuck, 2.5" bar capacity, 30 HP, 3400 RPM max, 10.3" turning diameter, with tailstock. Ideal for precision machining tasks.
Swing Over Front Apron: 31.75"
Swing Over Cross Slide: 20"
Max Turning Diameter: 10.30"
Max Turning Length: 20"
X-Axis Travels: 9"
Z-Axis Travels: 20"
Spindle Type: Big-Bore
Spindle Nose: A2-6
Max Bar Capacity: 2.5"
Spindle Speed: 3,400 RPM
Spindle Motor: 20 HP
Turret Type: Servo-Driven

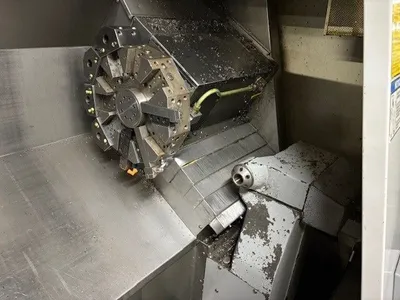

Stations: 12-Station Bolt-On Turret
Tailstock Quill Diameter: 3.15"
Tailstock Quill Travel: 4"
Max Cutting Feed: 500 IPM
Electrical: 208/230V, 3-Phase
Approximate Machine Weight: 7,500lbs
Approximate Machine Dimensions: 112" x 64" x 73"
