Haas TL-1 CNC Lathe, 2010

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
HAAS
Model:
TL-1
Year:
2010
Stock #:
454
Status:
For Sale

Description

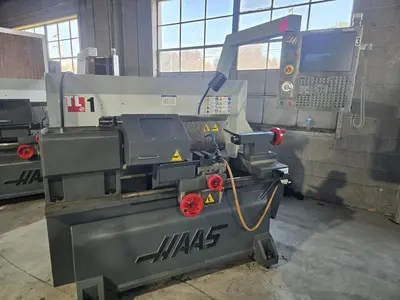

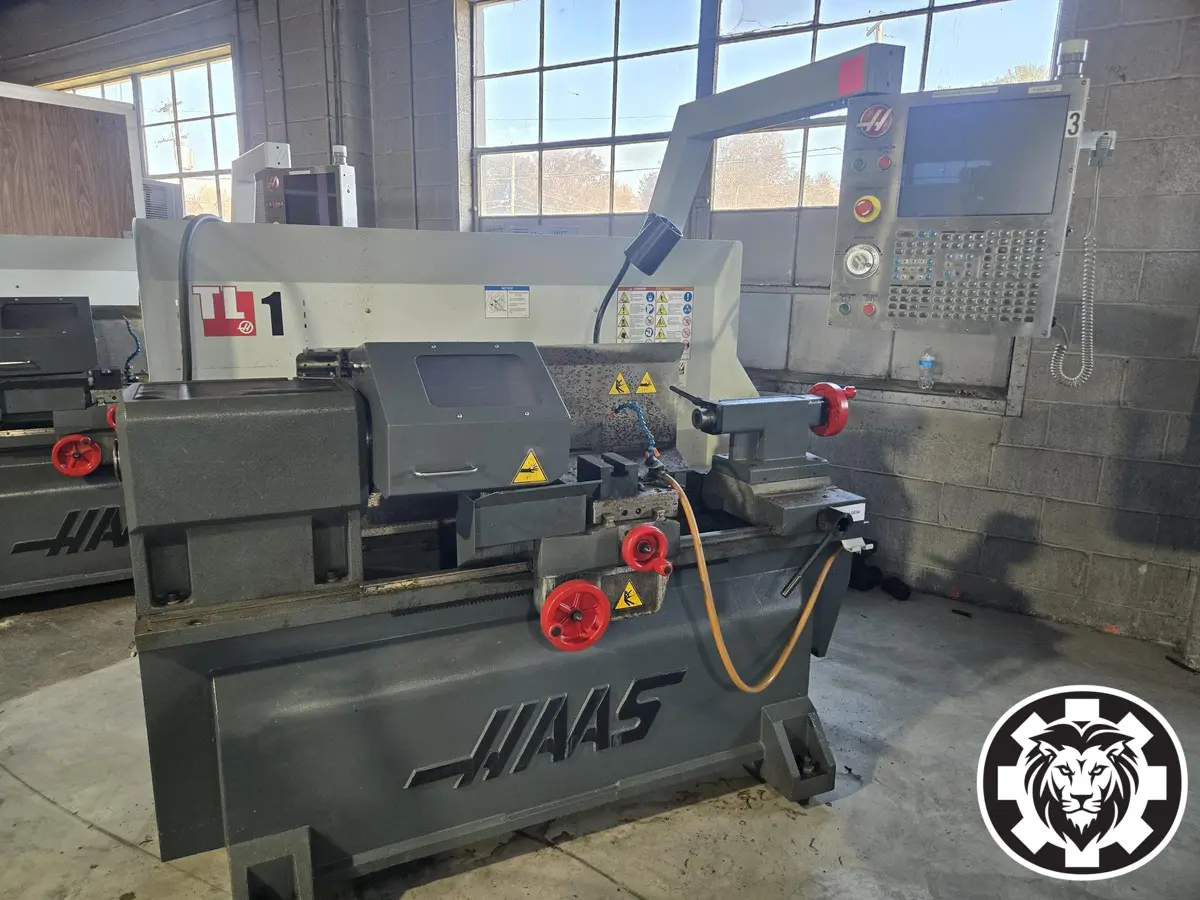

HAAS TL-1 CNC Lathe, 2010 model, in used condition. Features a 20" swing, 762mm machining length, 8" chuck, and 12 HP power. Max RPM of 2000, with a 16" turning diameter—ideal for precision machining tasks.

Swing16"406.4 mm
Machining Length762 mm30"
# Axis22
Chuck Size8"203.2 mm
Bar Capacity2.25"57.15 mm
Power10 hp7.5 kW
Max RPM1,800 RPM1,800 RPM
Turning Dia16"406.4 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (Haas CNC Control)CNC (Haas CNC Control)
Dimensions78" × 55"78" × 55"
Weight4500 lbs4500 lbs

Power Requirement: 220V/3 phase
Spindle Motor Power: 10hp
Spindle Speed: 1,800 rpm
Spindle Nose: A2-5 S
Spindle Bore: 2.5"
Bar Capacity: 2.25″
X-Axis Travel: 8"
Z-Axis Travel: 30"
Maximum Cutting Diameter: 16"
Maximum Swing: 16"
Chuck Size: 8"
Machine Dimensions: 78" × 55"
Machine Weight: 4,500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Equipped With:

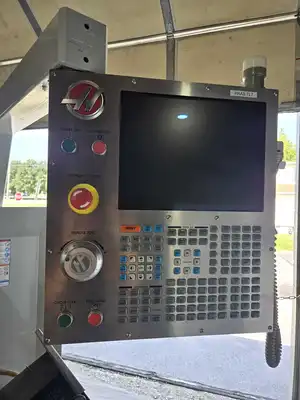

Haas CNC Control

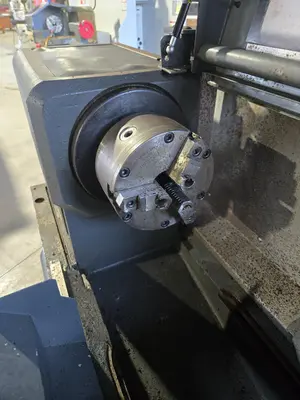

8″ Chuck

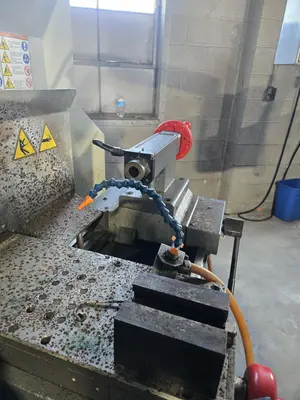

Tailstock
Chuck Cover
Coolant Pump Kit
Memory Lock Switch
USB Port
15" Color LCD
1 MB of Memory
Intuitive Programming System
