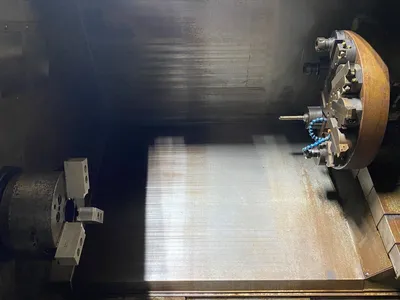

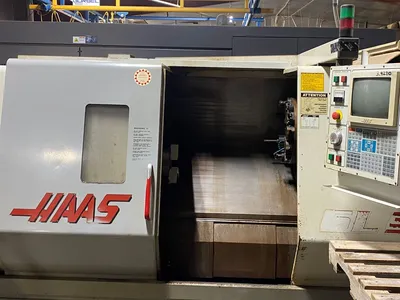

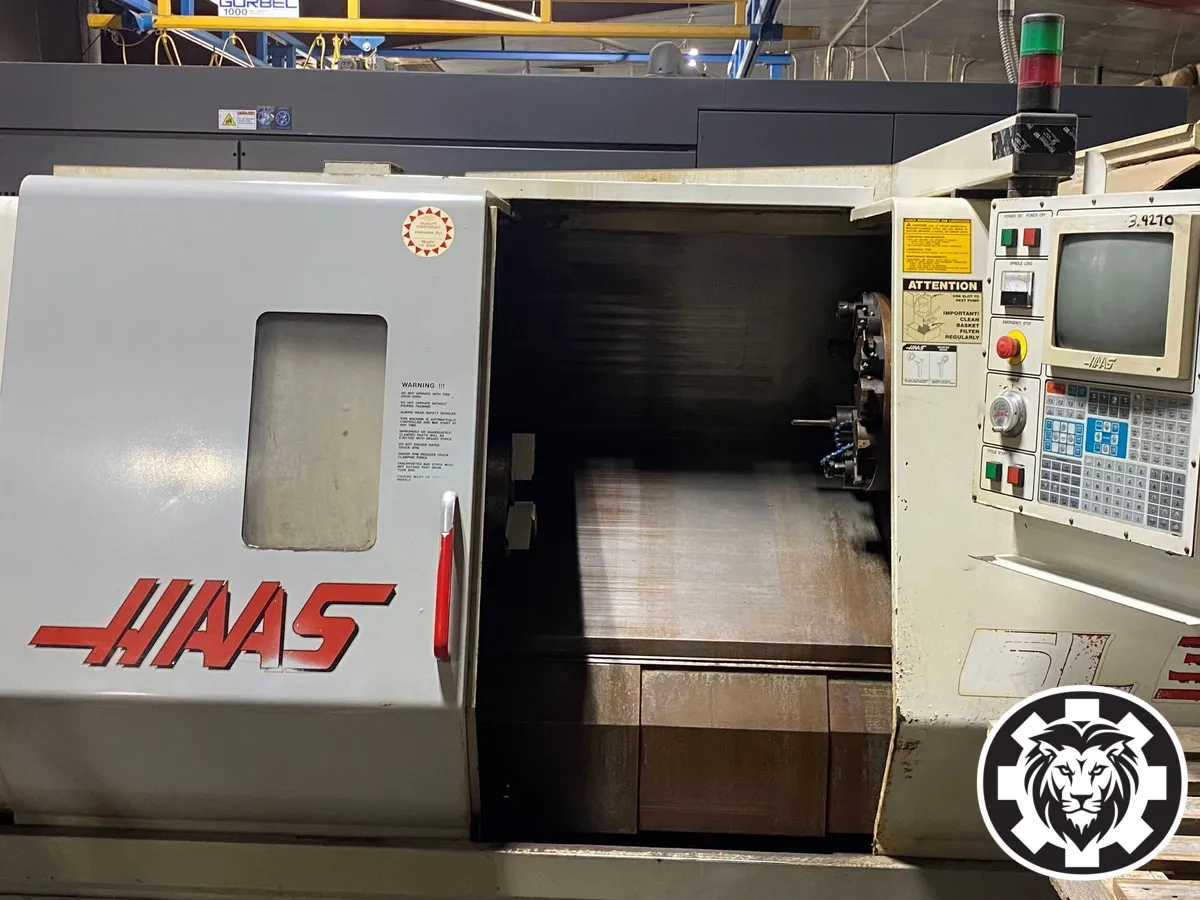

Haas SL-30T CNC Lathe, 1999 - Tool Presetter, Chip Conveyor
Have one to sell?
ConditionUsed
1 available
HAAS SL-30T CNC Lathe for sale. Features include a 30.0 swing, 32.0 machining length, 10.0 chuck size, 3.0 bar capacity, and 3400 max RPM. Equipped with a tailstock, 30.0 power, and 17.0 turning diameter. Ideal for precision machining needs.
X-Axis: 12.5"
Z-Axis: 26"
X & Z Axis Rapid Traverse Rates: 710 IPM
Swing over Bed: 30"
Swing over Cross-Slide: 20"
Max. Cutting Diameter: 17"
Max. Cutting Length: 39"
Spindle Speeds: 100-3,400 RPM
Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6
Spindle Bore: 3"
Turret Tool Capacity: 12
Dimensions: 162" x 77" x 74"
Weight: 16,000 lbs.
Equipped With:
Tool Presetter
Chip Conveyor
HAAS SL-30T CNC Lathe for sale. Features include a 30.0 swing, 32.0 machining length, 10.0 chuck size, 3.0 bar capacity, and 3400 max RPM. Equipped with a tailstock, 30.0 power, and 17.0 turning diameter. Ideal for precision machining needs.
Imperial
| Swing | 30" |
| Machining Length | 39" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,400 RPM |
| Turning Dia | 17" |
| Tailstock | Yes |
| Live Tooling | No |
| Sub Spindle | No |
| Control | CNC |
| Dimensions | 162 x 77 x 74 |
| Weight | 16000 |
X-Axis: 12.5"
Z-Axis: 26"
X & Z Axis Rapid Traverse Rates: 710 IPM
Swing over Bed: 30"
Swing over Cross-Slide: 20"
Max. Cutting Diameter: 17"
Max. Cutting Length: 39"
Spindle Speeds: 100-3,400 RPM
Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6
Spindle Bore: 3"
Turret Tool Capacity: 12
Dimensions: 162" x 77" x 74"
Weight: 16,000 lbs.
Equipped With:
Tool Presetter
Chip Conveyor
