Haas TM-2 VMC, 2006 - Through Spindle Coolant
Have one to sell?
ConditionUsed
1 available
2006 HAAS TM-2 Vertical Machining Center available. Features include X/Y/Z: 40/16/16 inches, RPM: 4000, 7.5 HP power, 10-tool ATC, CAT-40 taper, and 57.75 x 10.5-inch table. Ideal for precision manufacturing.
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Table Size: 54" x 10"
Max Table Load: Approx. 350 lbs
Spindle Speed: 6,000RPM
Spindle Motor: 7.5 HP vector drive
Drive Type: Belt-driven

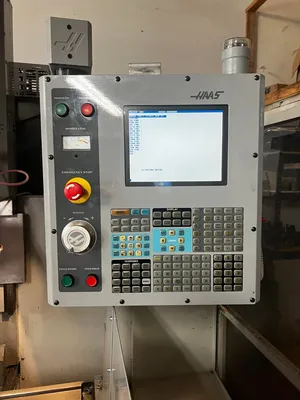

Controller: Haas
Machine Weight: ~4,200 lbs
Electrical: 208V, 3Phase.

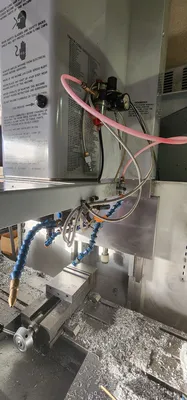

Cool Through Spindle
2006 HAAS TM-2 Vertical Machining Center available. Features include X/Y/Z: 40/16/16 inches, RPM: 4000, 7.5 HP power, 10-tool ATC, CAT-40 taper, and 57.75 x 10.5-inch table. Ideal for precision manufacturing.
Imperial
| X | 40" |
| Y | 16" |
| Z | 16" |
| Power | 7.5 hp |
| RPM | 6,000 RPM |
| # ATC | 10 |
| Taper | CAT-40 |
| Table-W | 10" |
| Table-L | 54" |
| Control | CNC (HAAS) |
| Weight | 4200 |
X-Axis Travel: 40"
Y-Axis Travel: 16"
Z-Axis Travel: 16"
Table Size: 54" x 10"
Max Table Load: Approx. 350 lbs
Spindle Speed: 6,000RPM
Spindle Motor: 7.5 HP vector drive
Drive Type: Belt-driven
Controller: Haas
Machine Weight: ~4,200 lbs
Electrical: 208V, 3Phase.
Cool Through Spindle
