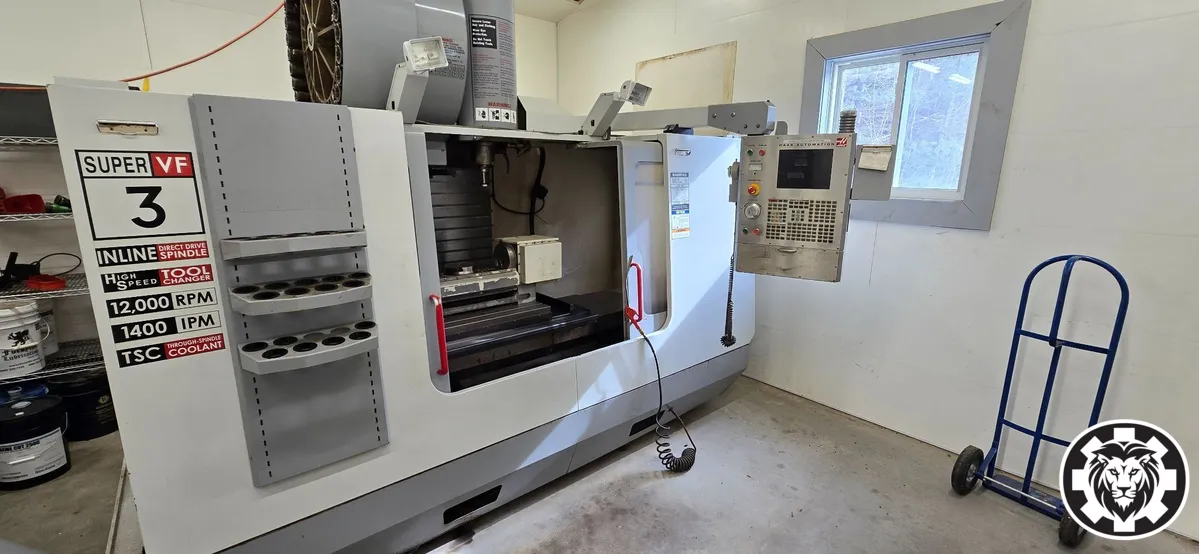

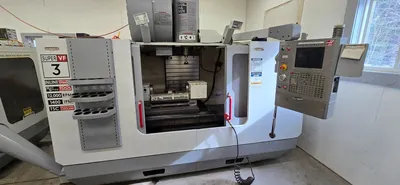

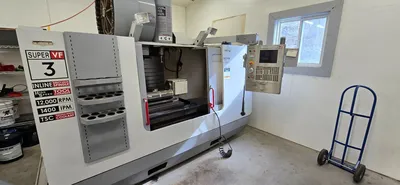

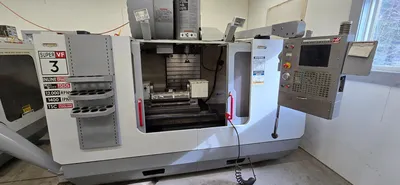

Haas VF-3SS VMC, 2005 - 5 Axis w/ Haas Rotary, TSC
Have one to sell?
ConditionUsed
1 available
2005 HAAS VF-3SS Vertical Machining Center for sale. Features include X: 40", Y: 20", Z: 25" travels, 30 HP, 12000 RPM, 24-tool ATC, and CT/BT 40 taper. Table dimensions: 18" x 48". Excellent choice for precision machining needs.
X-Axis Travel: 40”
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Tool Changer: 24 ATC
Spindle Taper: CAT 40
Max Tool Diameter: 3.0”
Tool to Tool / Chip to Chip: 1.6 sec / 2.2 sec
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Table Size: 48″ x 18”
Maximum Weight on Table: 1,750 lbs
Max Torque: 75 ft-lb @ 2,100 RPM
Feedrate Rapid on (X,Y,Z): 1400 IPM
Max Cutting Feedrate: 833 IPM
Approx. Machine Dimensions: 118” x 110” x 119.5”
Approx. Machine Weight: 12,5000 lbs
Equipped With:

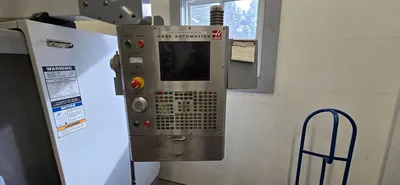

Haas CNC Control

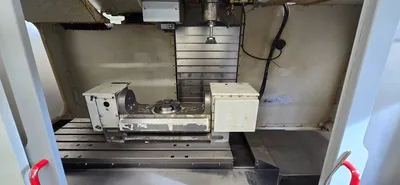

Haas TR-160 Rotary Table
Chip Auger
Through Spindle Coolant
