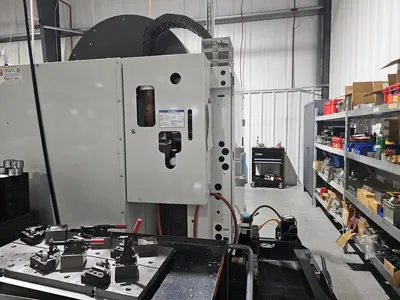

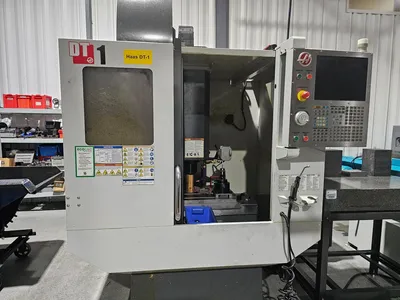

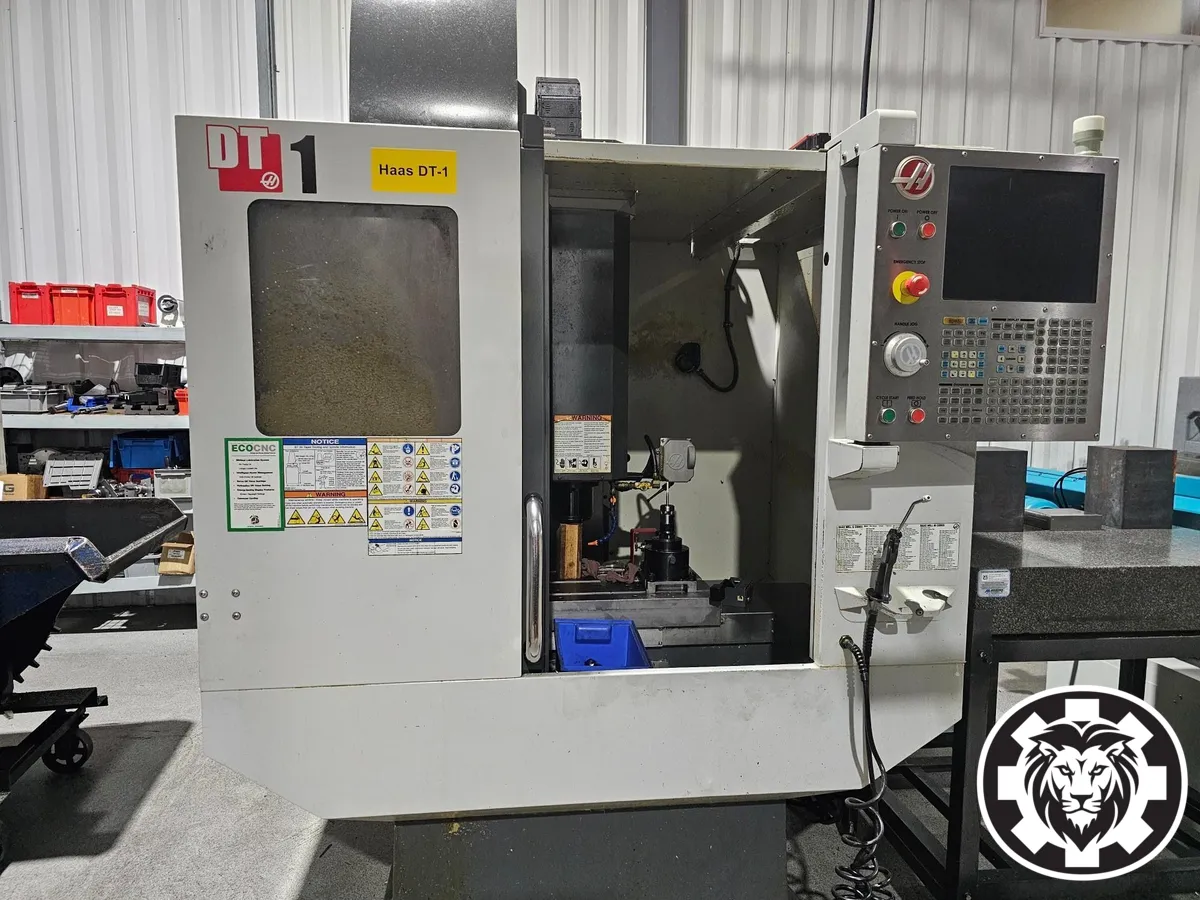

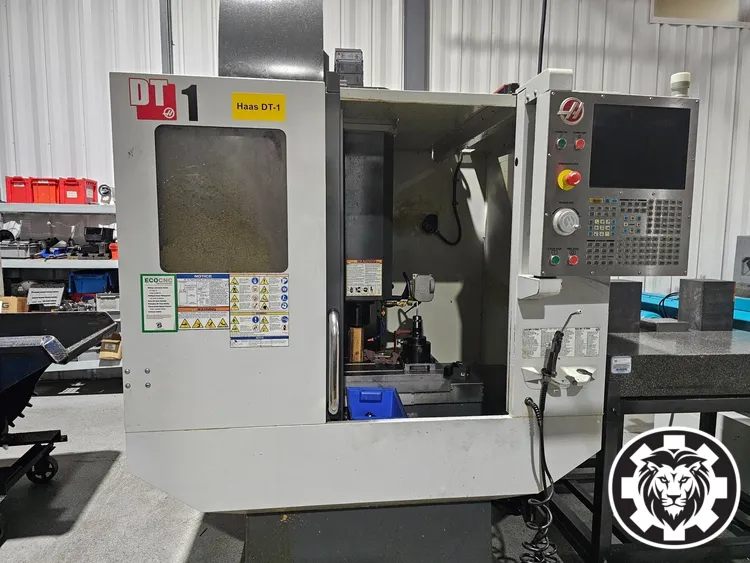

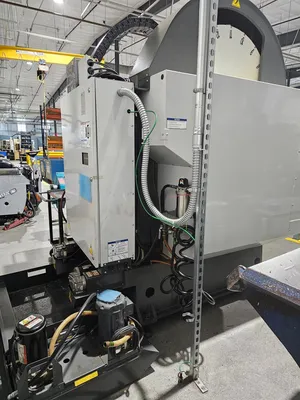

Haas DT-1 VMC, 2011 - TSC, WIPS, Rigid Tapping
Have one to sell?
ConditionUsed
1 available
2011 HAAS DT-1 Drilling & Tapping Center. Used condition with 20"x16"x15.5" XYZ travel, 15 HP, 15000 RPM, BT30 taper, and 20 ATC. Perfect for precision drilling and tapping projects.
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Table Size: 26" x 15"
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 15,000 RPM
Spindle Taper: BT 30
Tool Changer: 20 ATC
Max Torque 46 ft-lbf
Max Cutting 1200 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 2"
Max Tool Length 7"
Chip-to-Chip (avg) 2.4 s
Tapping Speed 5000 rpm
Coolant Capacity 55 gal
Dimensions: 80 in x 100 in x 98 in
Weight: 5,150 LBS
Equipped With:
-WIPS Probing
-Rigid Tapping
-TSC
