| X | 50" | 1,270 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 301 | 301 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 5 | 5 |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 152 x 99 x 106 | 152 x 99 x 106 |
| Weight | 11720 | 11720 |
X-Axis Travel: 50"
Y-Axis Travel: 20"
Z-Axis Travel: 25"

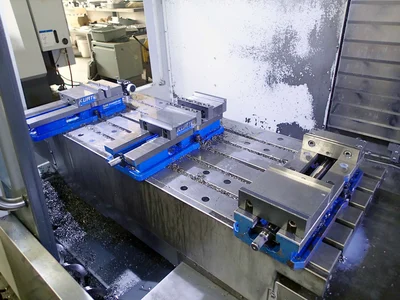

Table Size: 52" x 18"
A-Axis Tilt: +/- 120 degrees
B-Axis Indexing: 360 degrees
Rotary Platter Size: 7.87" (200mm)
Spindle Speed: 12,000 RPM
Spindle Power: 30 HP
Auto Tool Changer: 30 + 1 Positions
Spindle Taper: CAT 40
Max Table Load: 1750 pounds
Electrical Requirements: 220 V; 3 Ph; 50/60 Hz
Approx Dimensions: 152″ x 99″ x 106″
Approx Weight: 11,720 lbs
Trunnion Rotary Table- Haas TR-200Y
Platter Size: 7.87" (200mm)
Max Weight: 80 lbs
Max Part Swing: 8.1"
Max Table Tilt (A-Axis): +/- 120 degrees
Max Tilt Speed: 100 degrees/second
Rotary Indexing (B-Axis): 360 degrees
Max Index Speed: 130 degrees/second
A/B-Axis Rotation Resolution: 0.001 degrees

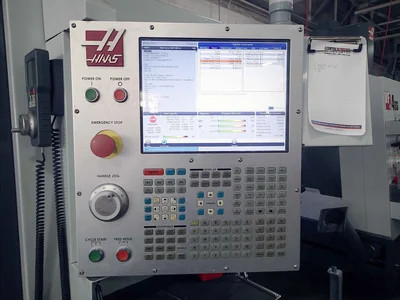

Haas CNC Control
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Haas TR-200Y Trunnion Rotary 5th Axis Table
Through Spindle Coolant
Programmable Coolant Nozzle & Coolant Maintenance Package
WIPS- Wireless Intuitive Probing System
TCPC & DWO- Tool Center Point Control & Dynamic Work Offsets
High Speed Machining

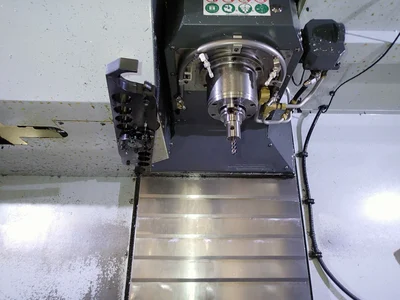

12,000 RPM Spindle
30 + 1 Automatic Side Mount Tool Changer

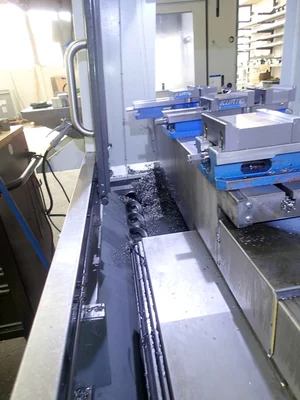

Chip Auger
Mist Collector
Automatic Doors
Wi-Fi Camera

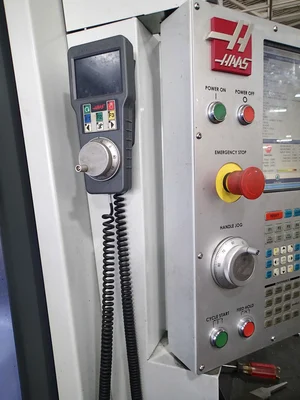

Remote Jog Handle
Coolant Tank
Electrical Transformer Additionally Available

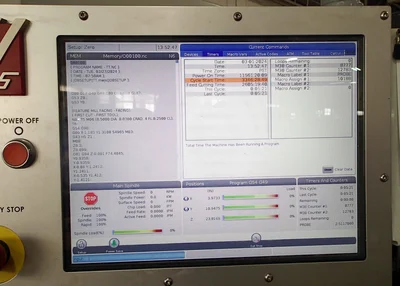

Feed Cutting Time: Approx 2,605 Hours
