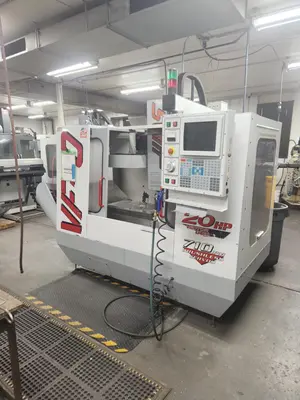

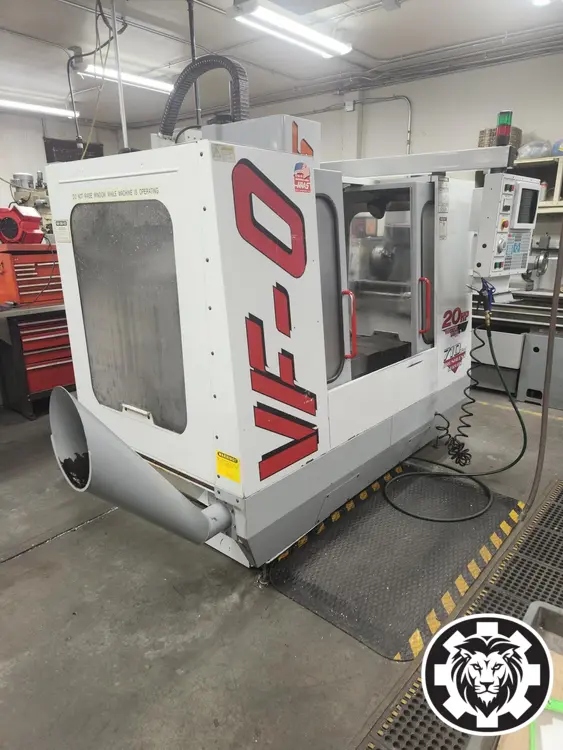

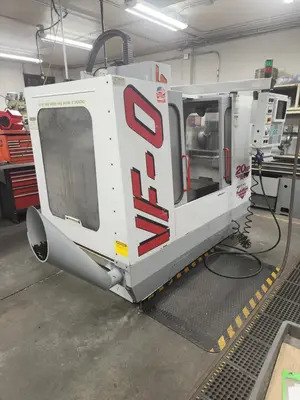

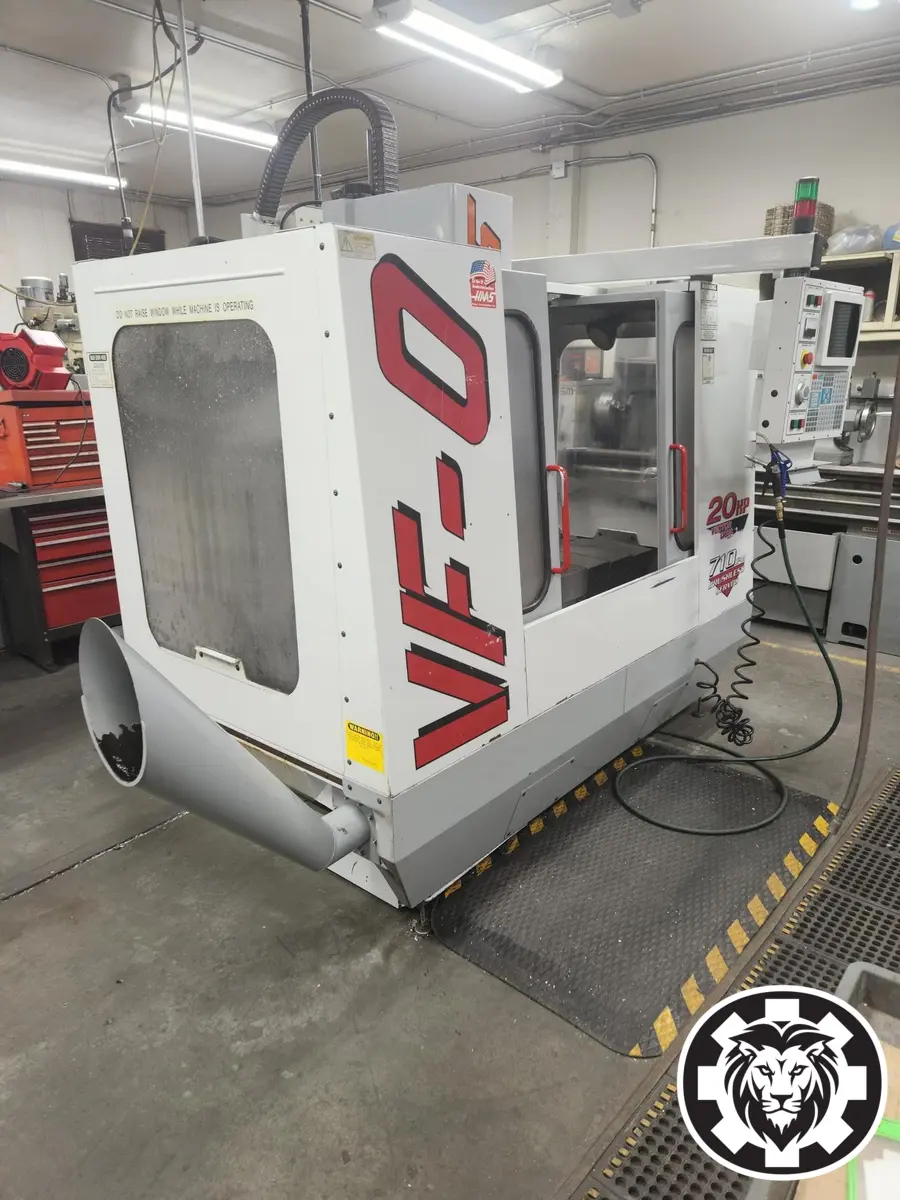

Haas VF-0 VMC, 1999 - Chip Auger, 20 Tool ATC, Recently Serviced, Video Available

Haas VF-0 VMC, 1999 - Chip Auger, 20 Tool ATC, Recently Serviced, Video Available

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-0
Year:
1999
Stock #:
415
Status:
For Sale

Description

HAAS VF-0 used vertical machining center (1999) with 20"x16"x20" XYZ travel, 20 HP, 7500 RPM, and CAT-40 taper. Features a 14"x26" table, 20 ATC, and 3-axis capability. Ideal for precision tasks.

X20"508 mm
Y16"406.4 mm
Z20"508 mm
Power20 hp14.9 kW
RPM7,500 RPM7,500 RPM
# ATC2020
TaperCAT-40CAT-40
Table-W14"355.6 mm
Table-L26"660.4 mm
# Axis33
ControlCNC (Haas CNC Control)CNC (Haas CNC Control)
Dimensions90 x 88 x 9090 x 88 x 90
Weight7500 lbs7500 lbs

Table Size: 26" x 14"
X Axis: 20"
Y Axis: 16"
Z Axis: 20"
Max. Weight on Table: 1,500 lbs
Spindle: 20 HP
Spindle Speed: 0-7,500 RPM
Dimensions: 90" x 88" x 90"
Weight: 7,500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Equipped With:

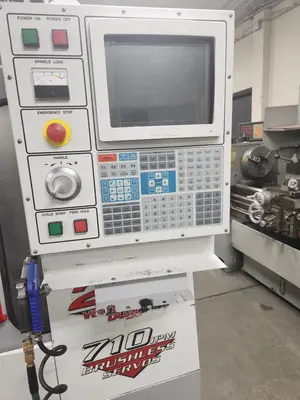

Haas CNC Control
Chip Auger
20 Tool ATC
