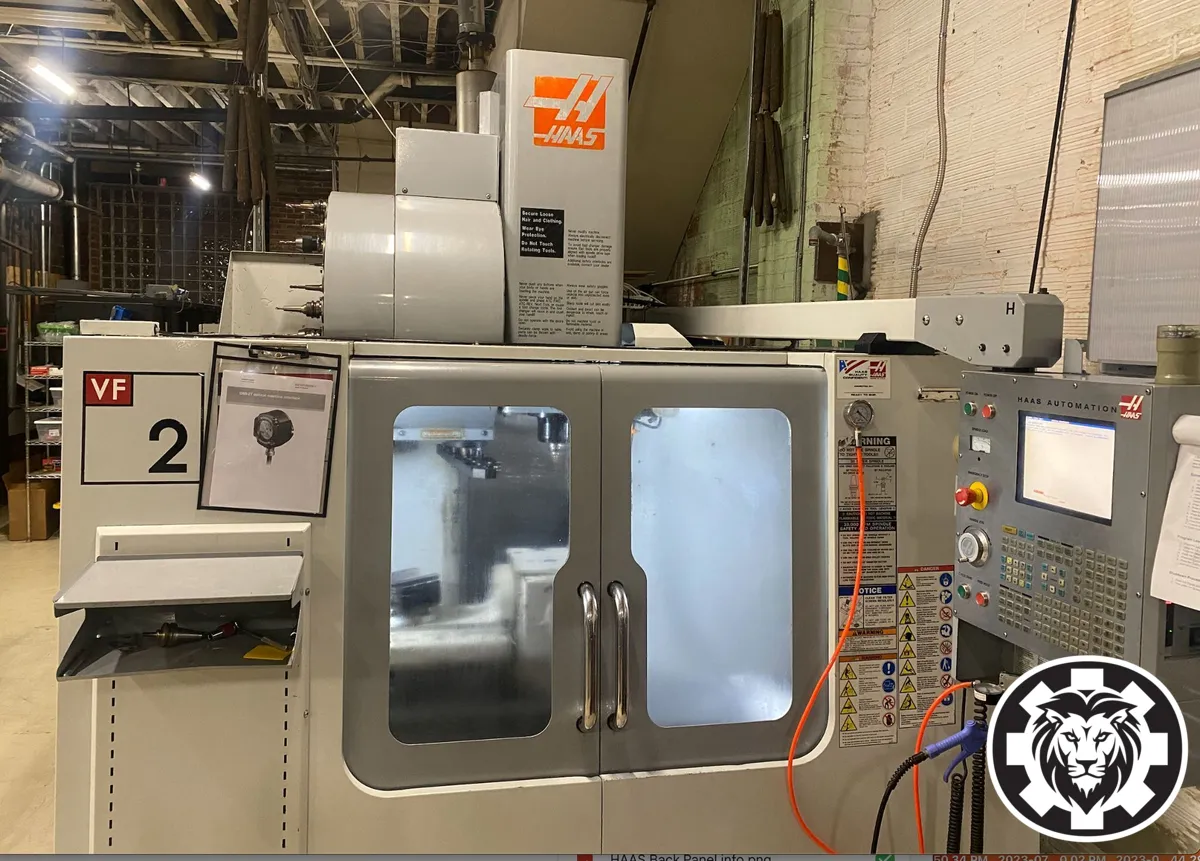

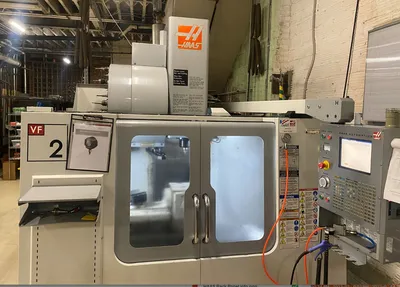

Haas VF-2 VMC, 2006 - 5-Axis Trunnion Table, 30K Spindle
Have one to sell?
ConditionUsed
1 available
2006 HAAS VF-2 Vertical Machining Center, used condition. Specs: X 30", Y 16", Z 20", Power 30 HP, 8100 RPM, 20-tool ATC, CT/BT 40 taper, table 14" x 36". Ideal for precision machining tasks.
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Table Size: 36" x 14"
Maximum Weight on Table: 3500 lbs (1588 kg)
Spindle Nose to Table Surface: 4" - 24"
X/Y-Axis Rapid Traverse Rates: 1,000 IPM (25.4 m/min)
Z-Axis Rapid Traverse Rates: 800 IPM (20.3 m/min)
Spindle Speed: 30,000 RPM
Spindle Motor: 30 hp (22.4 kW)
Spindle Taper: CAT 30

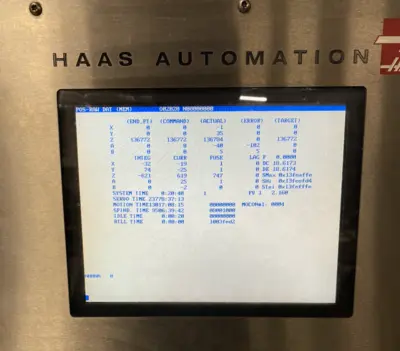

Haas CNC Control
30K RPM Vector Drive Spindle

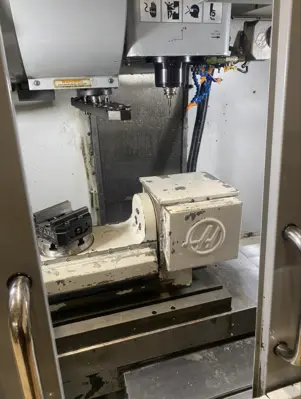

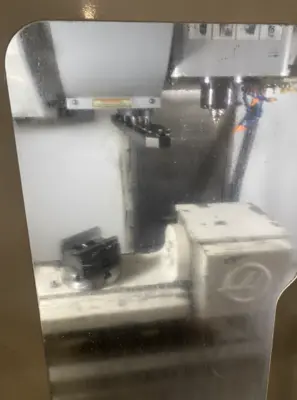

5th Axis Trunnion Rotary Table
Renishaw Probing Kit
Chiller Unit
55 Gallon Coolant Tank & Pump
Chip Auger & Chute
Available Cat 30 Tool Holders
