| Sheet-W | 60" | 1,524 mm |
| Sheet-L | 120" | 3,048 mm |
| Wattage | 4000 w | 4,000 W |
| X | 128" | 3,251.2 mm |
| Y | 60" | 1,524 mm |
| Z | 4" | 101.6 mm |
| Control | CNC | CNC |
| Dimensions | 60 x 120 x 0.75 | 60 x 120 x 0.75 |
| Weight | 23000 | 23000 |
Maximum Output: 4.0 kW
Power Required: 96 KVA
X-Axis Travel: 128″
Y-Axis Travel: 60″
Z Axis Travel: 4″
Maximum Sheet Size: 60 x 120, 0.75″, 2000 lbs
Weight: Approximately 23,000 LBS
Maximum material thickness:
Carbon steel: 0.875″
Stainless steel: 0.500″ “CleanCut”
Aluminum: 0.375″
Equipped With:

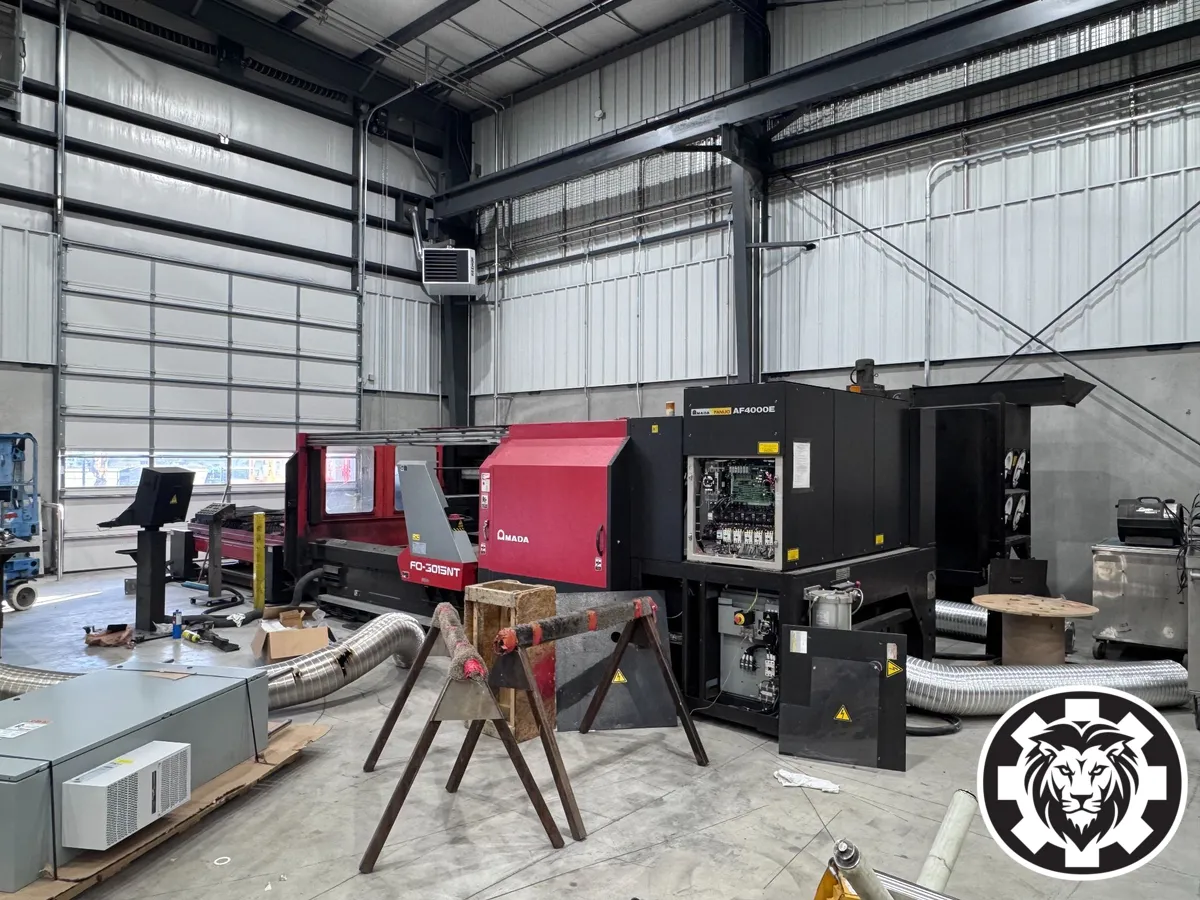

Amada Resonator Fanuc Laser C4000
Dual pallet Amada shuttle table
Orion beam purge
Orion chiller
Robovent Dust Collector
Note: The following parts have about 2000 hours on them: Turbo, Vacuum pump, Internal optics, and external optics.
