| X | 19.7" | 500.38 mm |
| Y | 15.7" | 398.78 mm |
| Z | 13" | 330.2 mm |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT30 | BT30 |
| Table-W | 15.7" | 398.78 mm |
| Table-L | 25.6" | 650.24 mm |
| Control | CNC | CNC |
X-Axis Travel: 19.7" (500 mm)
Y-Axis Travel: 15.7" (400 mm)
Z-Axis Travel: 13.0" (330 mm)
Table Size: 25.6" × 15.7" (650 × 400 mm)
Max Table Load: 661 lbs (300 kg)
Spindle Speed: Up to 24,000 RPM
Spindle Taper: BT30
Rapid Traverse (X/Y/Z): 54 m/min

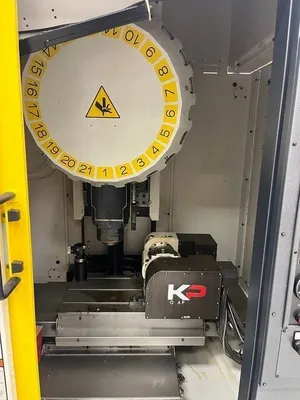

Tool Capacity: 21 ATC
Tool Change Time: 1.6 sec (2 kg tool)
Positioning Accuracy: < 0.006 mm
Repeatability: < 0.004 mm

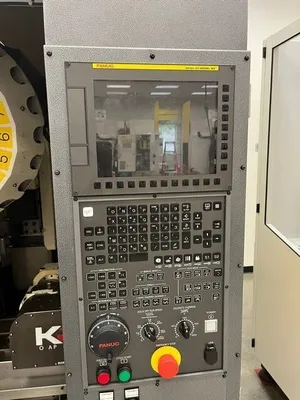

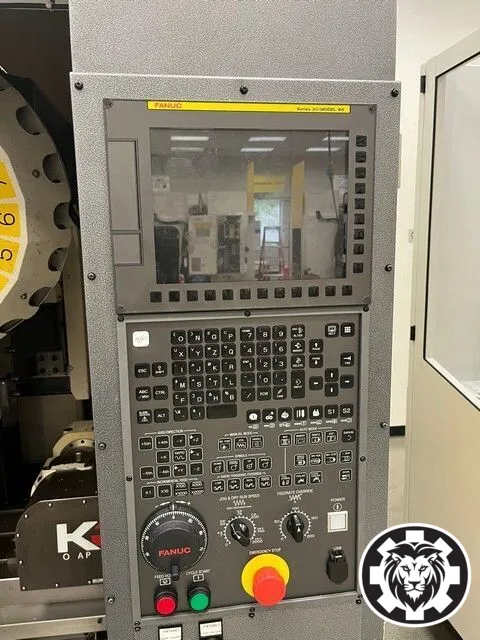

Controller: FANUC 31i-B5 Plus

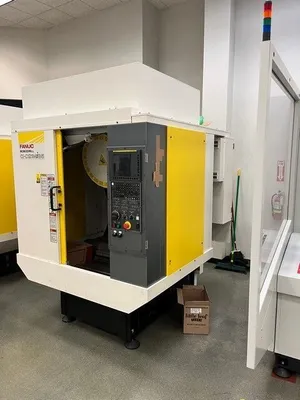

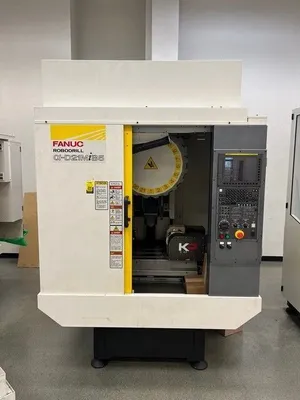

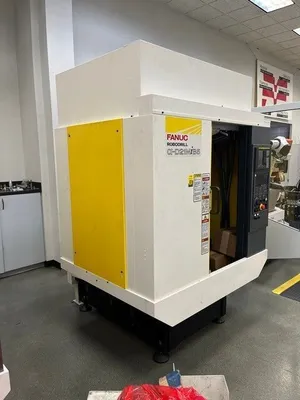

Machine Type: High-speed Vertical CNC Machining Center
Year: 2021
