| Tonnage | 400 T | 362.874 t |
| Stroke | 12" | 304.8 mm |
| Daylight | 21" | 533.4 mm |
| Power | 40.2 hp | 30 kW |
| Bed W | 140" | 3,556 mm |
| Bed L | 160" | 4,064 mm |
| IPM | 3.0 | 3.0 |
| Control | CNC | CNC |
| Dimensions | 240 x 105.3 x 132.6 | 240 x 105.3 x 132.6 |
| Weight | 49500 lb | 49500 lb |
Press Force: 400 Tons
Bending Length: 160 inches (4060 mm)
Distance Between Housings: 140 inches (3550 mm)
Daylight: 21 inches (533 mm)
Throat Depth: 16 inches (406 mm)
Stroke: 12 inches (305 mm)

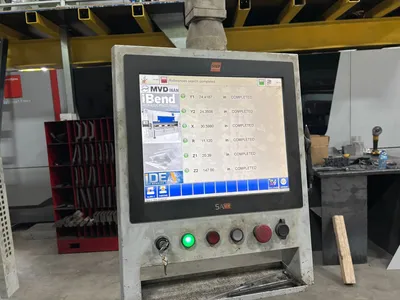

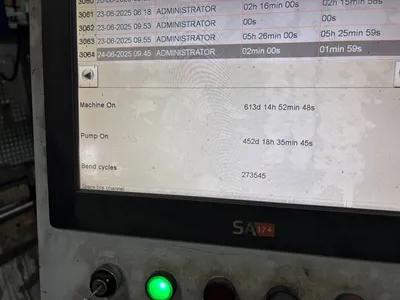

CNC Control: ESA S650 or similar unit
CNC Axes: Y1, Y2, X, R (4-axes)
Back Gauge Accuracy: ±0.03 mm

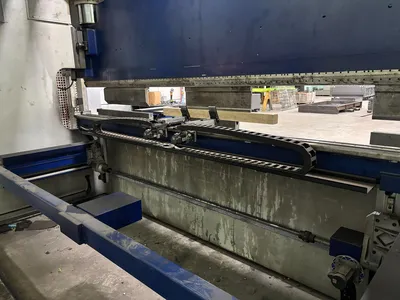

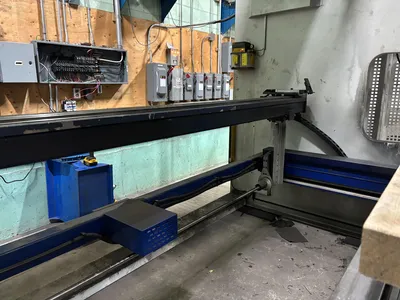

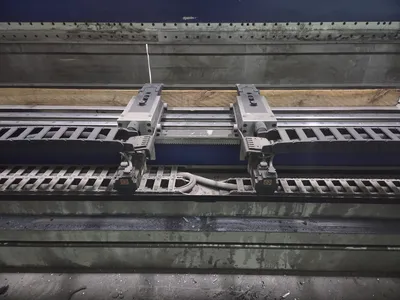

Back Gauge Range: X: 750 mm, R: 250 mm
Hydraulic Clamping: On the ram
Crowning System: Motorized anti-deflection crowning system with Wila wedges

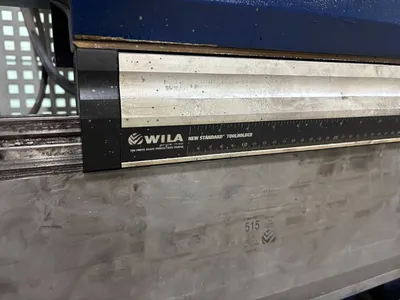

Tool Clamping: Promecam-type quick clamp punch holder

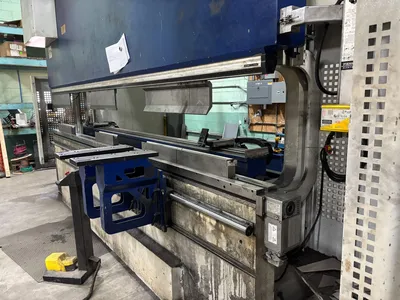

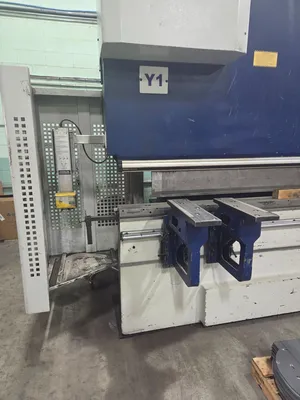

Front Support Arms: Sliding front sheet support arms

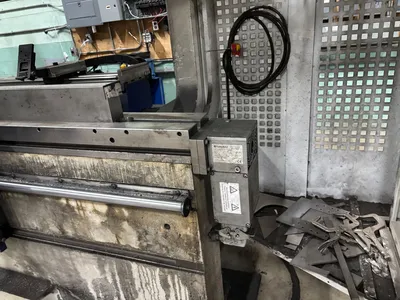

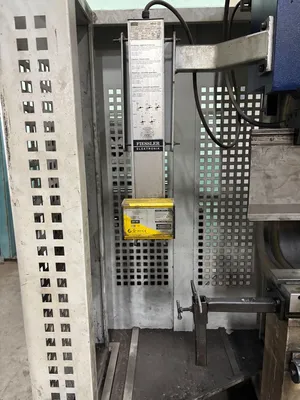

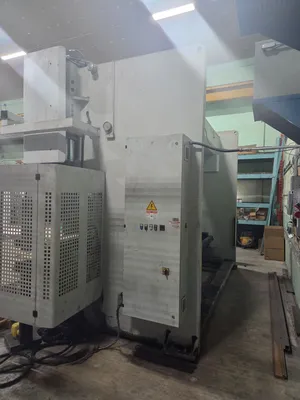

Safety: Rear side protection covers and rear light barriers
TABLE HEIGHT:38.4″
MACHINE DIMENSIONS:240″ X 105.3″ X 132.6″ HIGH
SPEED
APPROACH SPEED: 3.9 IPM
RETURN SPEED: 3.12 IPM
BENDING SPEED:0.312 IPM
WEIGHT:22,500 KG
MAIN MOTOR:30KW
