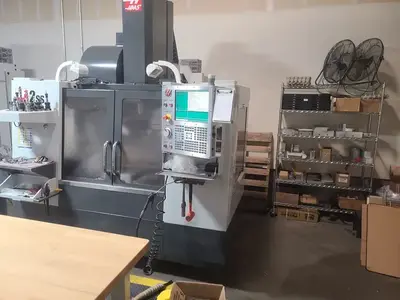

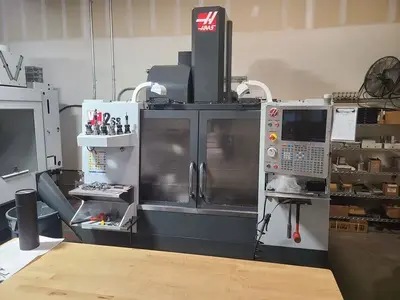

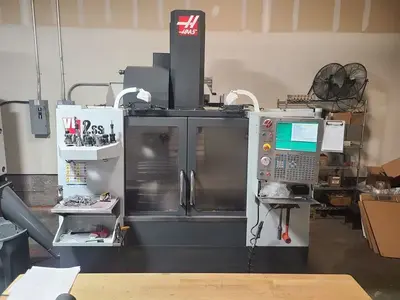

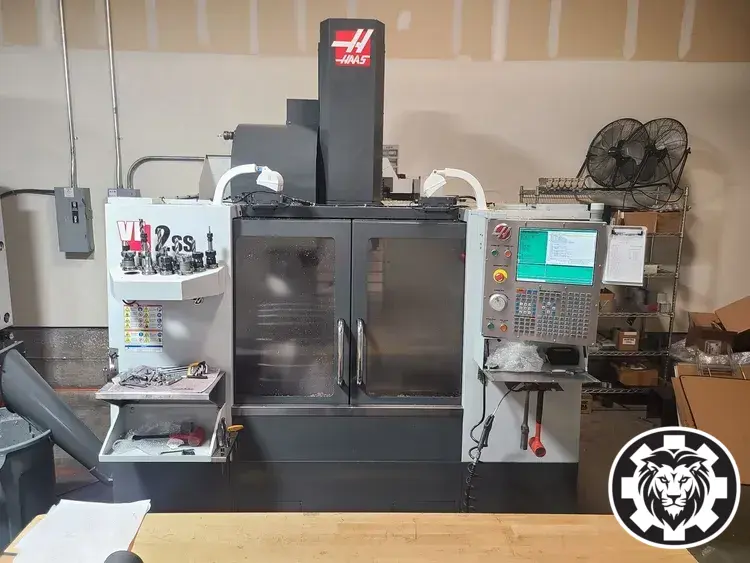

Haas VF-2SS VMC, 2012 - High Speed Machining, WIPS, High Intensity Lighting, Chip Auger

X-AXIS TRAVEL...................30"
Y-AXIS TRAVEL...................16"
Z-AXIS TRAVEL...................20"
SPINDLE NOSE TO TABLE...........4" MINIMUM - 24" MAXIMUM

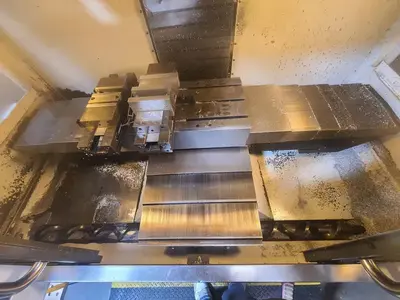

TABLE SIZE......................36" X 14"
T-SLOT WIDTH....................5/8"
T-SLOT CENTER DISTANCE..........4.92"
MAXIMUM WEIGHT ON TABLE.........1500 LBS
MOTOR...........................30 HP
MAXIMUM SPINDLE SPEED...........12000 RPM
SPINDLE TAPER...................40 TAPER
FEEDRATES ON X, Y, AND Z-AXIS...1400 IPM

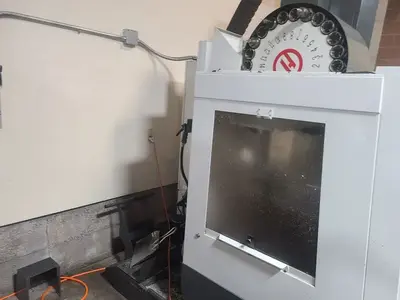

NUMBER OF TOOLS.................24 SIDE MOUNT ATC
MAXIMUM TOOL DIAMETER...........5" (ADJACENT EMPTY) / 3" (FULL)
MAXIMUM TOOL WEIGHT.............12 LBS
TOOL TO TOOL CHANGE TIME........1.6 SEC
DIMENSIONS (APPROX).............92" X 93" X 106"
WEIGHT (APPROX).................9,200 LBS
