| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 24" | 609.6 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 64 | 64 |
| Taper | 40 Big Plus | 40 Big Plus |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| # Axis | 3 | 3 |

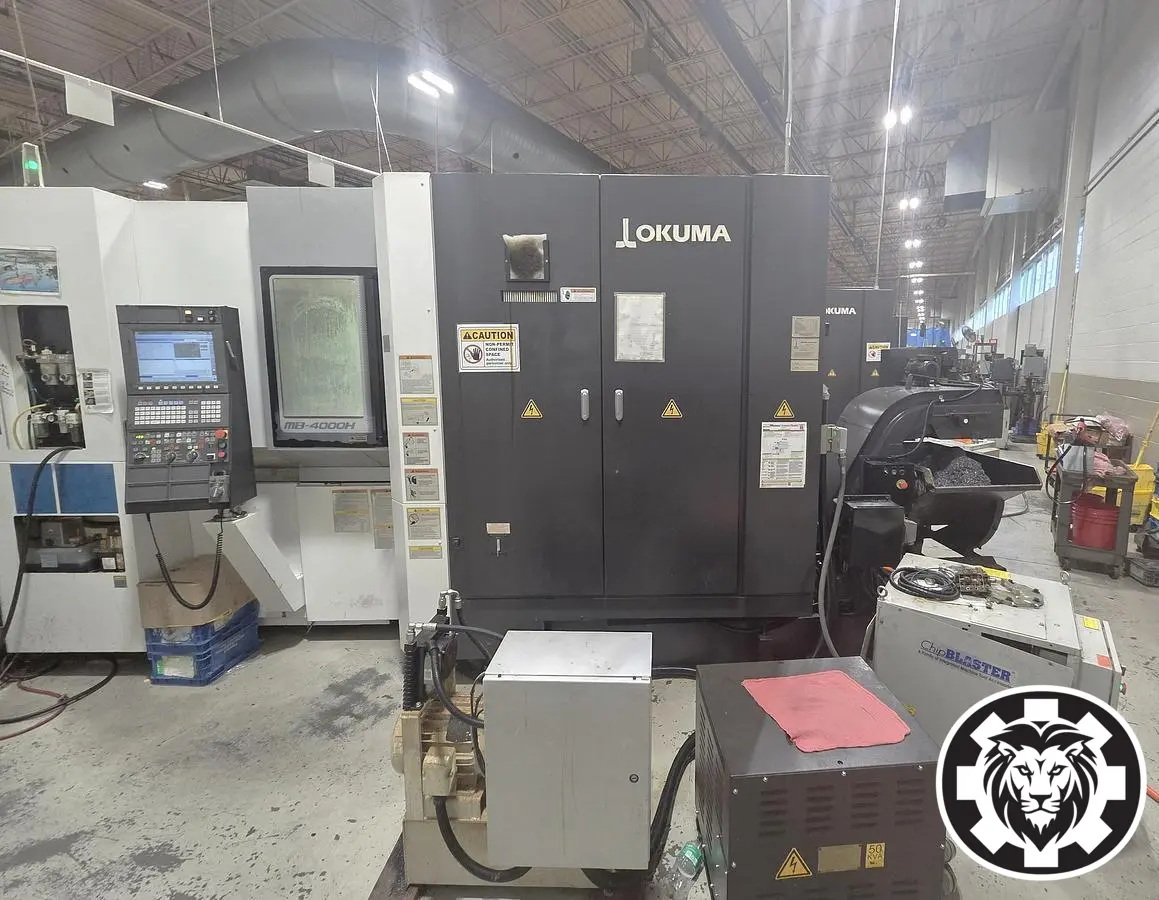

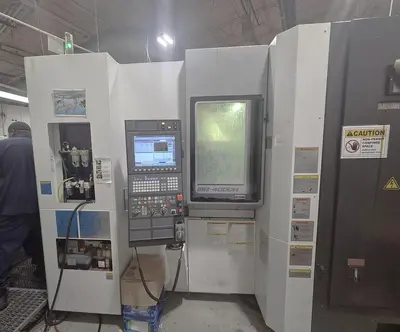

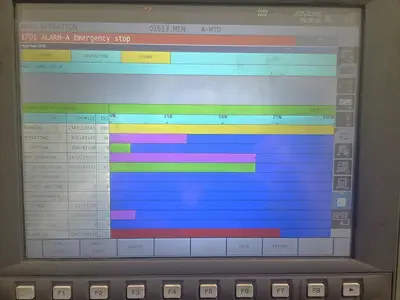

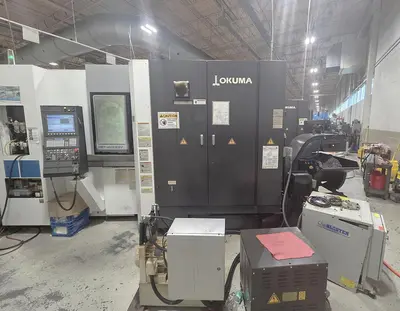

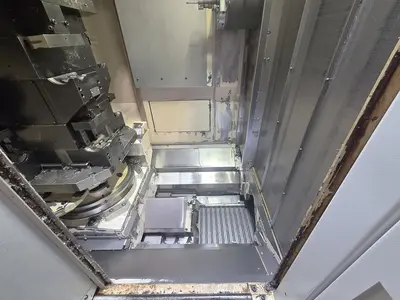

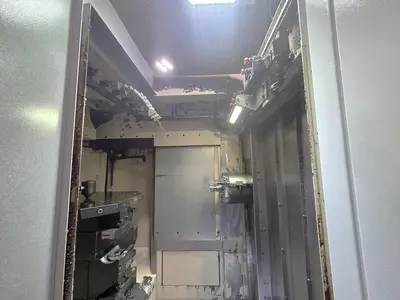

Machine Control Okuma OSP P-300MA Control
Table Size / Number of Pallets 15.75" x 15.75" / 2 Pallet Changer
Maximum Workpiece Dimensions 23.62" x 35.43"
Maximum Table Load 880 lbs
Pallet Indexing .001 Degrees Full 4th
X-Axis Travel 22.05"
Y-Axis Travel 22.05"
Z-Axis Travel 24.61"
Spindle Speed 50 - 15,000 RPM
Spindle Taper CAT 40 Taper
Spindle Motor 35 HP
Spindle Center to Table Top 1.97" - 24.02"
Spindle Nose to Pallet Center 3.35" - 27.95"

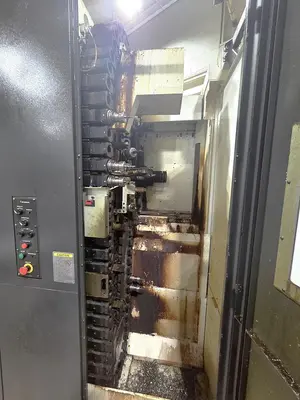

Tool Magazine Capacity 64 Station Tool Changer
Maximum Tool Diameter / Length / Weight 5.91" / 11.81" / 22 lbs.
Rapid Traverse Rates 2,362 IPM
Cutting Feedrates 2,362 IPM
Machine Dimensions LxWxH 186" x 96" x 106"
Machine Weight 21,000 lbs
2 Pallet Changer System

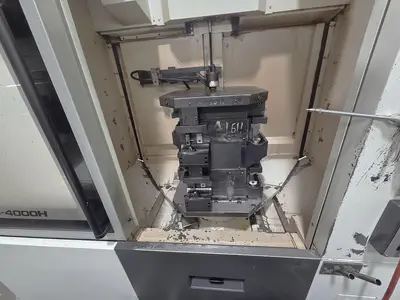

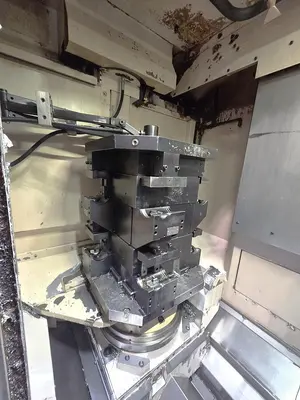

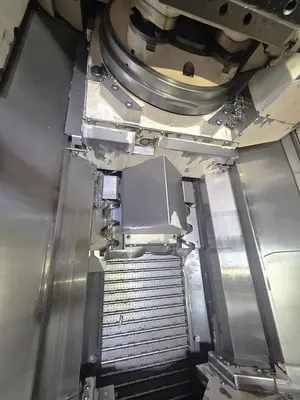

Full 4th Axis Rotary Table
64 Station Tool Changer
Chip Blaster High Pressure Coolant Through the Spindle
15,000 RPM Spindle
Tool Probing

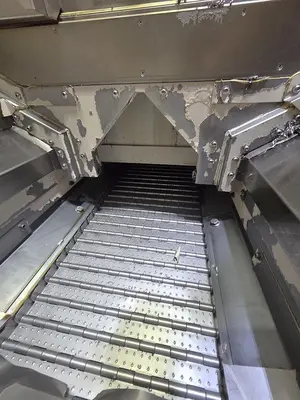

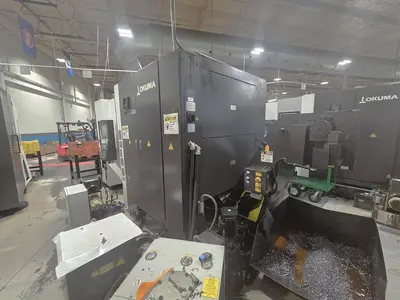

Chip Conveyor
Flood Coolant
Tool Breakage Detection
Rigid Tapping
Spindle Chiller Unit with Filters
Remote Jog Handle
USB Port Interface
RS 232 Port Interface
Wired 220/480V Electrics
Linear Guide Rail Design
All Available Manuals
**Spindle Replaced in 2022**
**Had an Axis Drive Replaced in mid 2024**
**Manufactured New in January of 2019**
**(3) Units Available from Same Plant, The Other (2) are 2013's Equipped the Same
Way**
**All Units Have Exclusively Run the Same Part. Materials Cut Include SAE1126M,
86L20 and 8620H**
