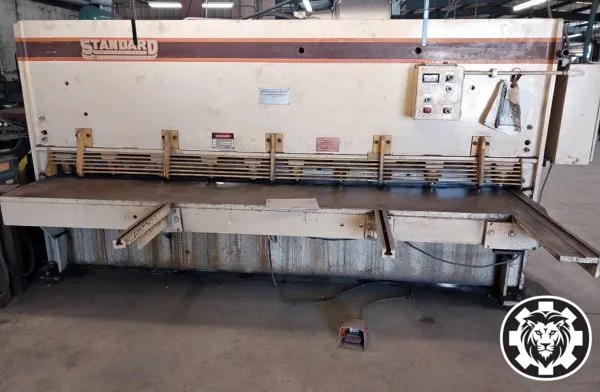

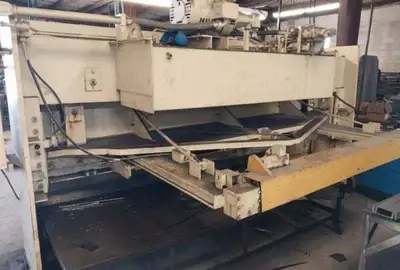

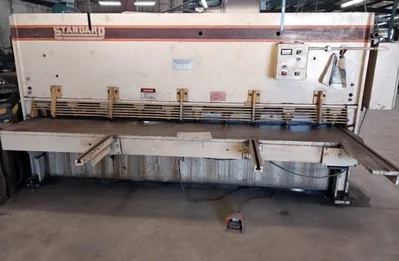

1/4” X 10’ Standard AS250-10 Hydraulic Shear, 1993 - Adjustable Blade Gap, Squaring Arm, Backgauge
Have one to sell?
ConditionUsed
1 available
For sale: STANDARD AS250-10 Shear, manufactured in 1993. This reliable unit is pre-owned and available now. Ideal for precise cutting tasks.
Capacity: 1/4″ x 10′
Available Shearing Force: 36 tons
Hold Downs: 11 cylinders
Hold-Down Force: 31 tons total
Blade Size: 1″ × 3″ × 124″
Rake Angle: 0.25″ per foot (≈ 3° rake)
Ram Speed: 110 IPM (down), 173 IPM (up)
Strokes Per Minute: 16 full‑width strokes; 36 at 12″ width
Motor Power: 20 HP
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Adjustable Blade Gap
Squaring Arm
Powered Backgauge
