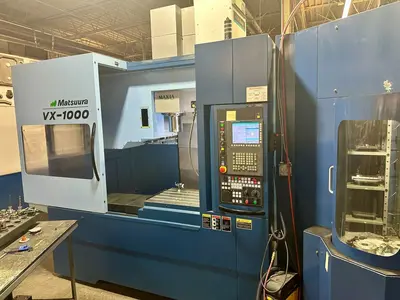

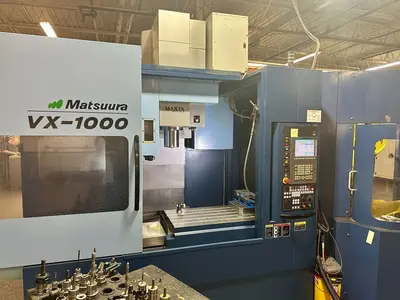

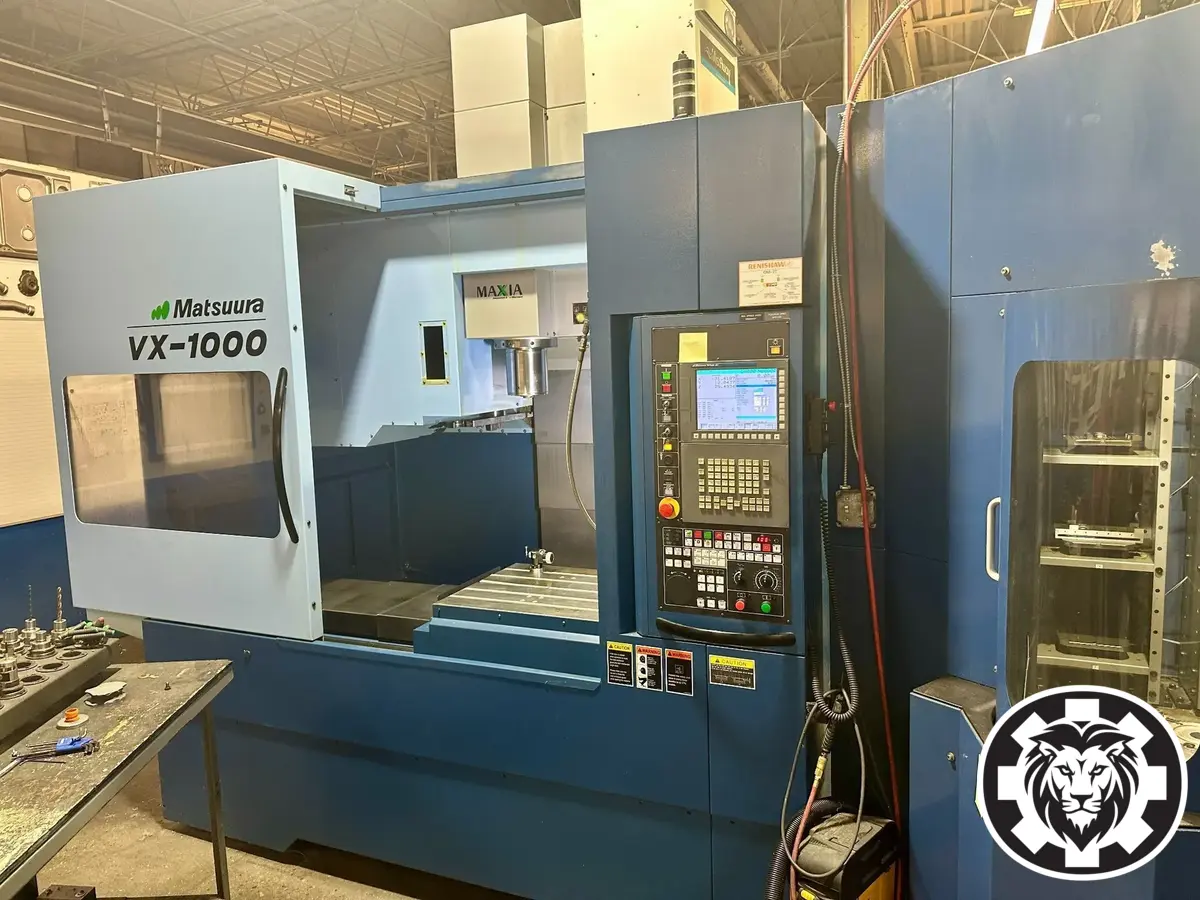

Matsuura VX-1000 CNC Vertical Machining Center, 2018 - w/ Pallet Shuttle System, Matsuura G-Tech 31i CNC Control

Matsuura VX-1000 CNC Vertical Machining Center, 2018 - w/ Pallet Shuttle System, Matsuura G-Tech 31i CNC Control

Have one to sell?
1-630-366-3546
lana@lionmachinery.net
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MATSUURA
Model:
VX-1000
Year:
2018
Stock #:
324
Status:
For Sale
Country:
Canada

Description

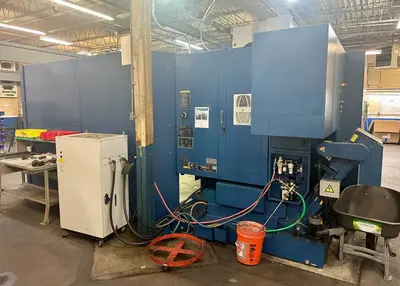

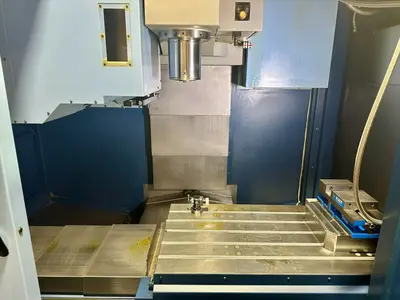

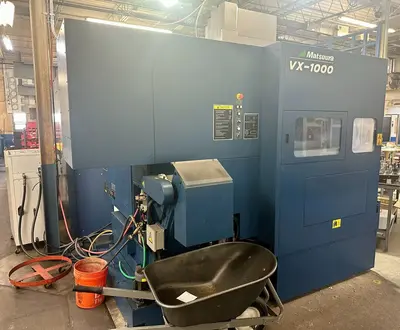

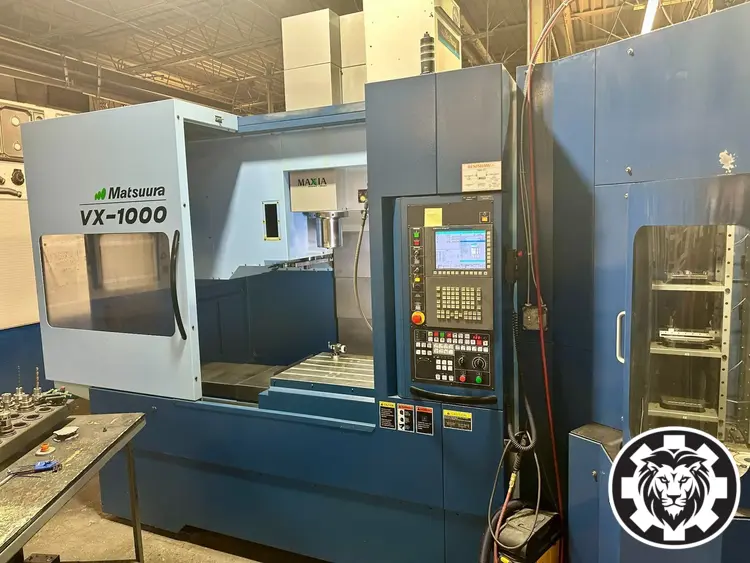

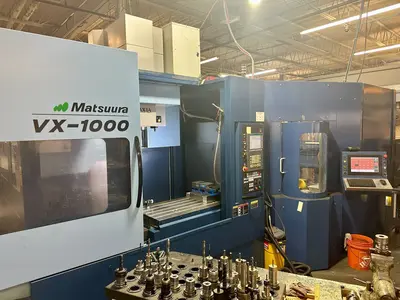

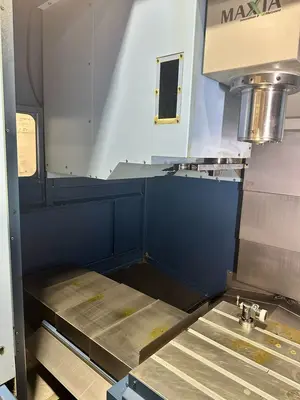

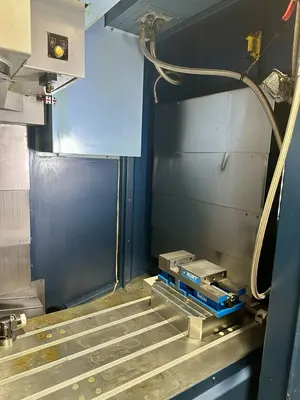

Matsuura VX-1000 CNC Vertical Machining Center w/ Pallet Shuttle System, Matsuura G-Tech 31i CNC Control, 47" x 23.6" Table, X=40.15", Y=24.01", Z=24.01", 24 Station Pallet Shuttle System w/ Fanuc Robot, CAT 40 Taper, 20000 Max Spindle RPM, 30 ATC, TSC, Chip Conveyor, New 2018.

X1,020 mm40.158"
Y610 mm24.016"
Z610 mm24.016"
RPM15,000 RPM15,000 RPM
# ATC3030
TaperBT40BT40
Table-W600 mm23.622"
Table-L1,200 mm47.244"
# Axis33

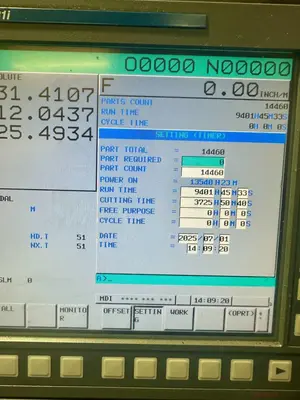

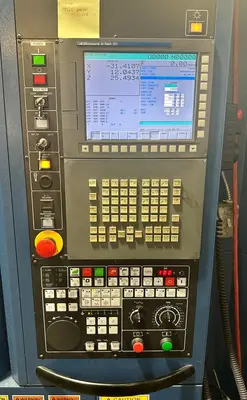

CNC Control Matsuura G-Tech 31i CNC
# Axis 3
Table-L 47.24"
Table-W 23.62"
Max Table Load Capacity 1,100 lb
X-Axis (Longitudinal Travel) 40.15"
Y-Axis (Cross Travel) 24.01"
Z-Axis (Vertical Travel) 24.01"
X-Axis Rapid Traverse Rate 1,574.8 in/min.
Y-Axis Rapid Traverse Rate 1,574.8 in/min.
Z-Axis Rapid Traverse Rate 1,417.3 in/min.
Max Spindle Speed 20,000 RPM
Spindle Taper CAT 40
Coolant Through Spindle Yes
Automatic Tool Changer Capacity (ATC) 30
Electrics 220/3/60

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

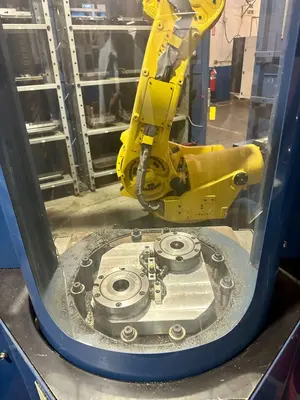

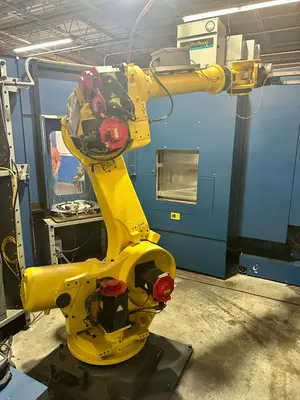

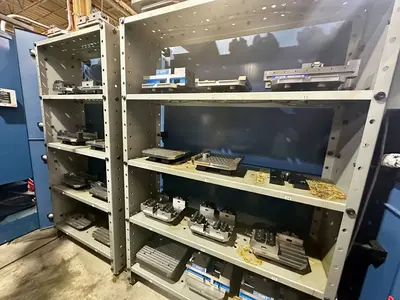

24 Station Pallet Shuttle System w/ Fanuc Robot, Matsuura G-Tech Fanuc 31i CNC Control, 20000 RPM Spindle-Cat 40, Through Spindle Coolant & Flush Coolant, Renishaw Part & Touch Probe, Mist Collector, Spindle Chiller, Coolant System & Chip Conveyor.

* New Replacement Cost 700k
