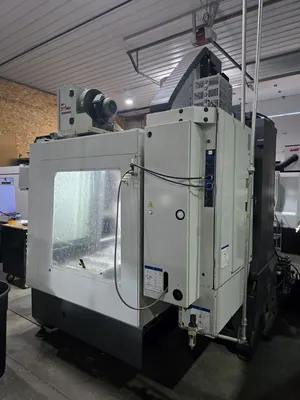

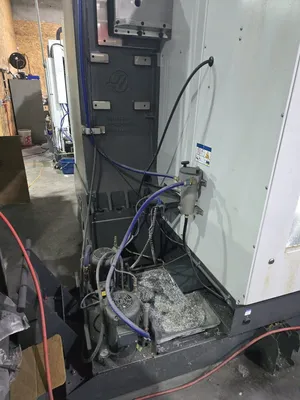

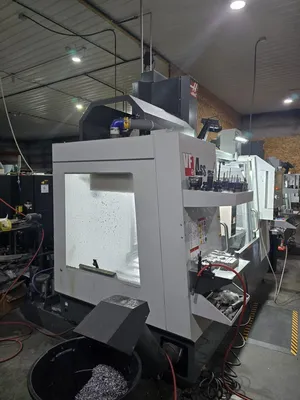

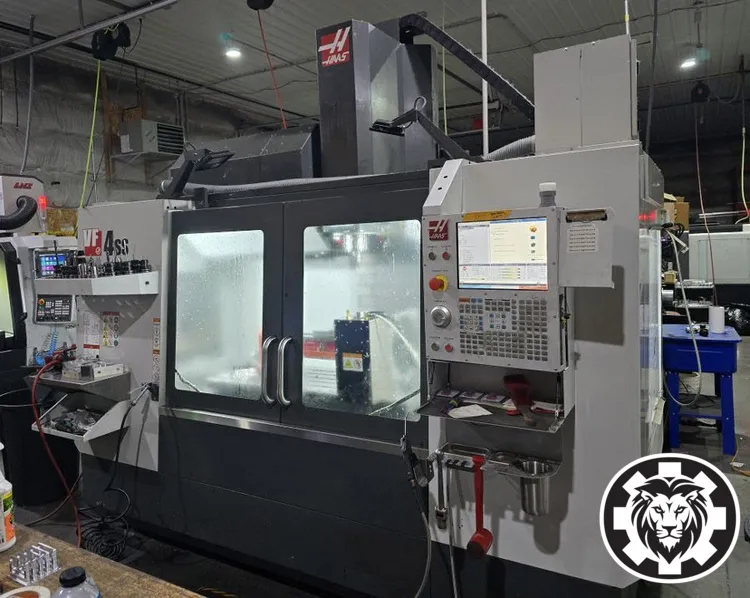

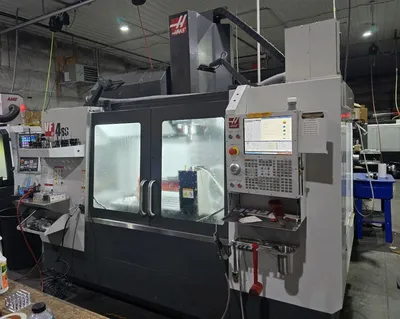

Haas VF-4SS CNC Vertical Machining Center, 2022 - 4th Axis Rotary Table, TSC, WIPS, Chip Auger

Travels
X Axis 50.00 in
Y Axis 20.00 in
Z Axis 25.00 in
Spindle Nose to Table (~ max) 29.2 in
Spindle Nose to Table (~ min) 4.2 in
Spindle
Max Rating 30.0 hp
Max Speed 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper CT40 |
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled
Table
Length 52.0 in
Width 19.5 in
T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance 3.15 in
Number of Std T-Slots 5
Max Weight on Table (evenly distributed) 1750 lb
Feedrates
Max Cutting 833 ipm
Rapids on X 1400 ipm
Rapids on Y 1400 ipm
Rapids on Z 1400 ipm
Tool Changer
Type SMTC
Capacity 30+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 13 in
Max Tool Weight 12.0 lb
Tool-to-Tool (avg) 1.80 s
Chip-to-Chip (avg) 2.40 s
Dimensions - Shipping
Domestic Pallet 152.0 in x 99.0 in x 106.0 in
Weight 11720 lb
