X Axis Travel: 41.34″
Y Axis Travel: 22.05″
Z Axis Travel: 18.11″
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,262 IPM
Max Table Load: 1,980 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: CatBIGPlus#40 CT
Tool Changer: 32 ATC
Max. Workpiece Weight 1,980 lbs
Spindle Nose To Table (Max) 24.02″
Spindle Nose To Table (Min) 5.91″
Max. Tool Length 11.8″
Max. Tool Diameter 4.9″
Max. Tool Weight 18″

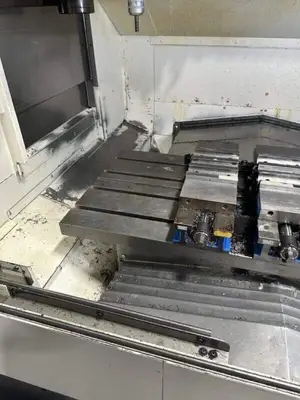

Table Size: 51.18″ x 22.05″
Dimensions: 122″ x 99″ x 108″
Weight: 16,500 LBS

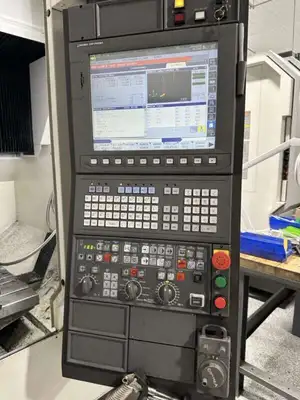

Okuma OSP-P300MA THiNC Control
Renishaw OMP400/OTS Probing

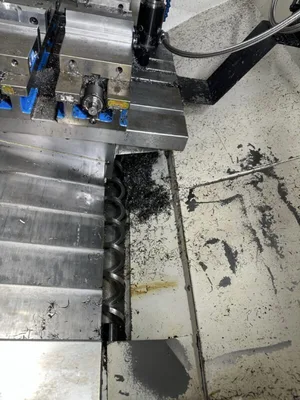

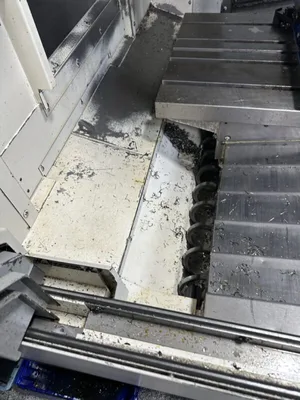

LNS Hinge Belt Conveyor, 44″ Right Hand Discharge
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
