Ficep 1001 DDB Drill & Saw Line, 2013 - OPEN TO OFFERS, Material Handling/Automation, 3 Sides Work Capacity
Have one to sell?
ConditionUsed
1 available

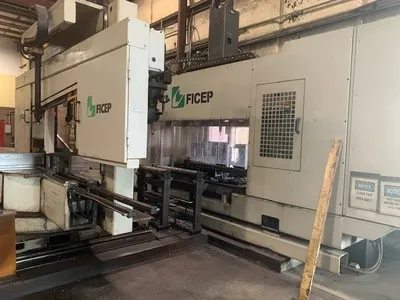

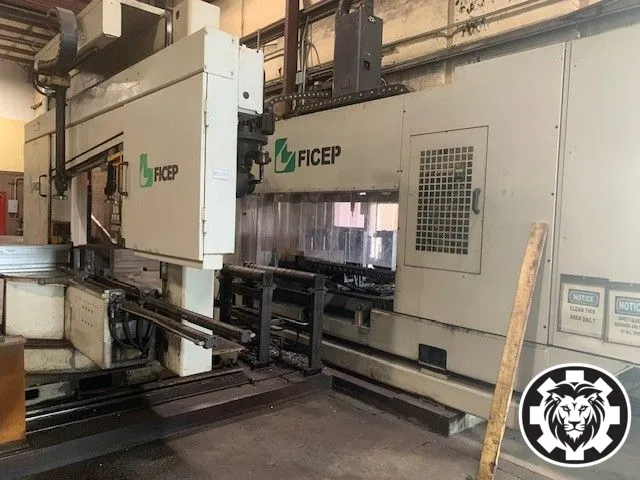

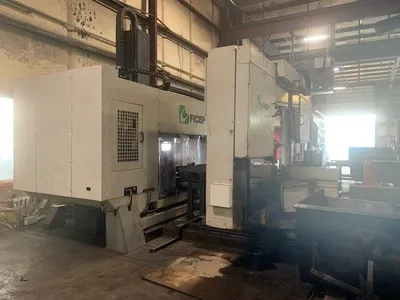

FICEP 1001 DDB Beam/Drill Line, year 2013, purchased + installed in mid 2014. Spindle is equipped with a 22.0 horse power system and 2500 RPM capacity. Recently replaced spindle, spindle motor, axis motor, gripper arm, and camera on the gripper. Fully taken care of and ready to find a new home.
- No. Of Spindles, Rotating - 1
- Beam Depth, Min - Max - 3-1/8" - 40"
- Flange Height, (Min - Max) -3/8" - 17-3/4"
- Maximum Drill Diameter - 1-9/16"
- Maximum Drill Thickness - 4"
- Spindle Motor - 22 HP
- Spindle Speed - 180 - 2500 RPM
FICEP K100 BAND SAW:
- Max. Sawing Capacity at 90°
40" x 17-3/4"
- Sawing Capacity at 45°
24-3/8" x 17-3/4""
- Sawing Capacity at 60°
13-3/4" x 13-3/4"
- Blade Speed - 196 - 557 FPM
- Motor Power - 12 HP
FEATURES

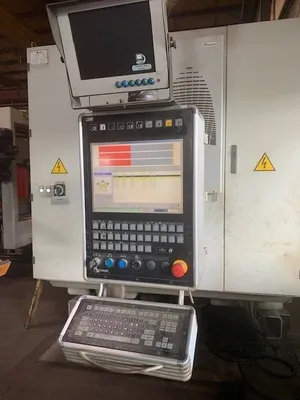

- Ficep Pegaso CNC Control
- (1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On
3-Sides
- (6) Position Tool Changer
- Scribing
- Carriage Feed

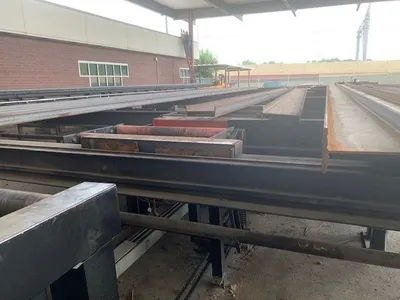

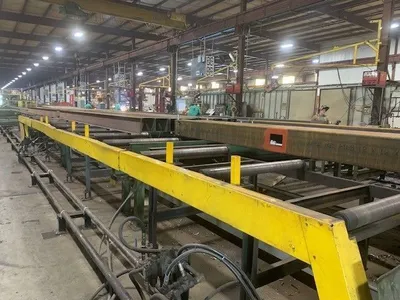

- 65' Powered Infeed Conveyor With Transfers
- 40' Outfeed Powered Conveyor
Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On
3-Sides
(6) Position Tool Changer
Scribing On 3-Sides
Carriage Feed
65' Powered Infeed Conveyor With Transfers
40' Outfeed Powered Conveyor
