242 Ton x 14' AMADA HFB 2204 Press Brake
Have one to sell?
ConditionUsed
1 available

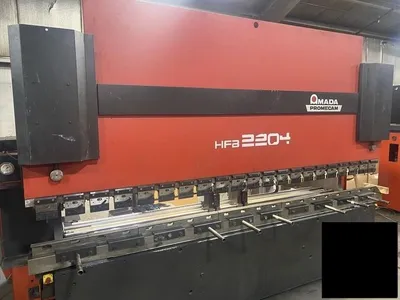

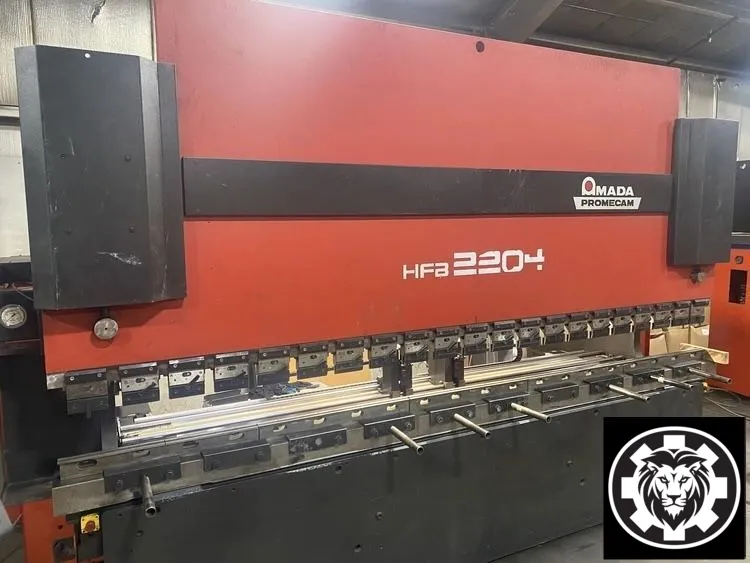

AMADA HFB 2204 1993 Press Brake available. Features: 242T hydraulic tonnage, 168" length, 148" between housings, 8-axis. Ideal for precision sheet metal work. Contact for further information.
Capacity: 242 Tons
Overall length of Bed & Ram: 168”
Distance Between Housings: 148”
Stroke: 7.8”
Open Height: 18.5”
Closed Height: 10.7”
Throat Clearance: 16.5”
Speeds
Approach: 236 IPM
Form: 2.4 – 47 IPM
Return: 2.4- 189 IPM
Distance, Floor to Top of Bed: 36”
Main Motor Horsepower: 460/3/60
CONTROL FEATURES

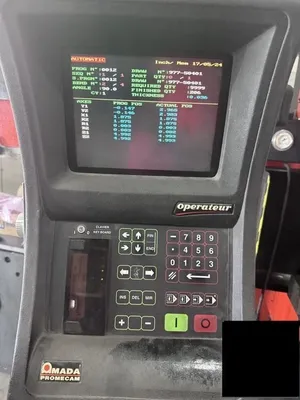

Amada Operatuer CNC Control
12” Color CRT
Punch & Die Library
Self Diagnostics
Graphical Interface
6 Axis CNC Heavy Duty Programmable Back Gauge Controlling ( X/X2, R/R2, Z1/ Z2)
Off Center Load Compensation
Full Tonnage Throughout Stroke

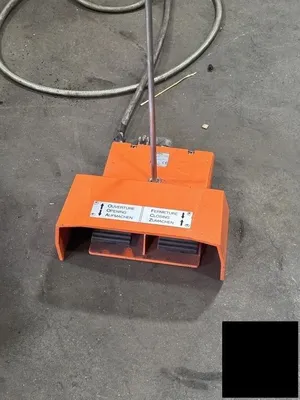

Electric Foot Switch
