| X | 30" | 762 mm |
| Y | 22" | 558.8 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 41 | 41 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 24.8" | 629.92 mm |
X-Axis Travel: 30″
Y-Axis Travel: 20″
Z-Axis Travel: 20″

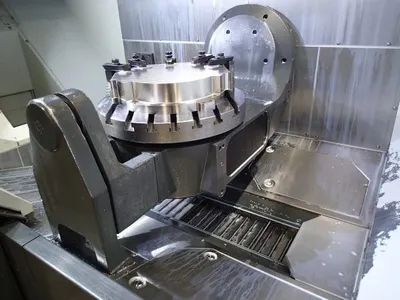

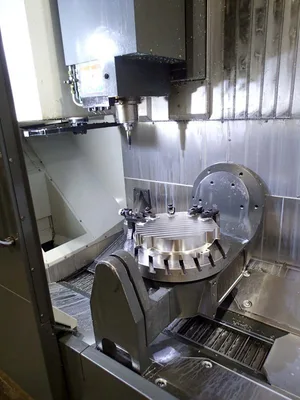

B-Axis Trunnion Tilt: +120° to -35°
C-Axis Table Rotation: 360°
Trunnion Platter Diameter: 19.7″
Max Weight on Platter: 660 lb
Table Top to Spindle Nose: 4” – 24”
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Tool Changer: 40 + 1 Positions, Side Mount
Spindle Taper: Cat 40

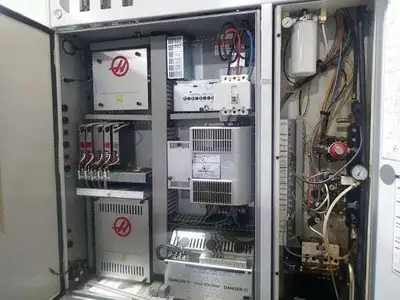

Electrics: 220 V; 3 Ph; 50/60 Hz
Approximate Machine Dimensions: 168” x 110″ x 110″
Approximate Machine Weight: 14,250 lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.

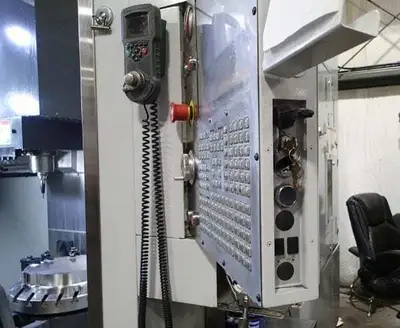

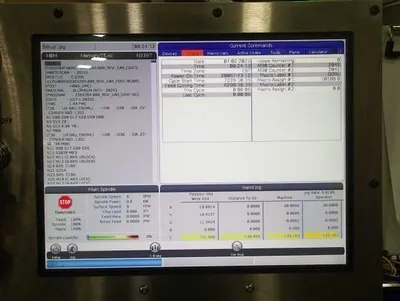

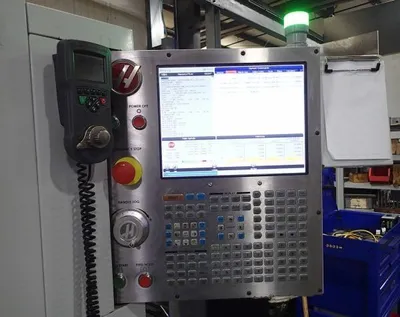

Haas CNC Next Gen Control
High Speed Machining
Wireless Intuitive Probing System- WIPS
Thru Spindle Coolant
Thru Tool Air Blast
Programmable Coolant Nozzle
40 + 1 Position ATC
Cat 40 Taper

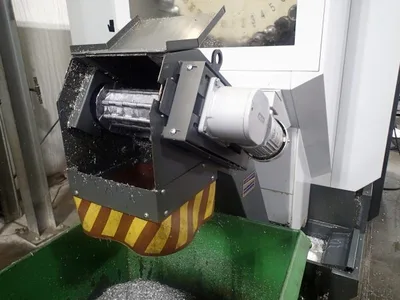

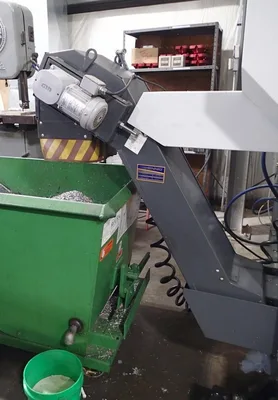

Chip Conveyor
Auxiliary Coolant Filter
Approx. 6,300 Feed Cutting Time
