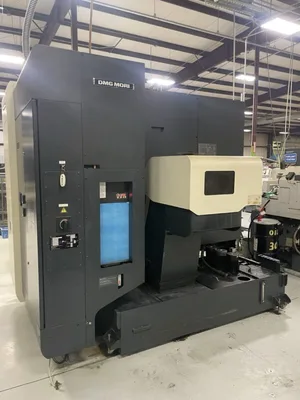

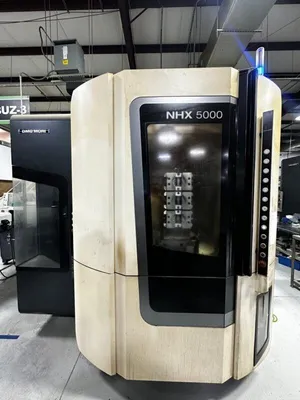

DMG Mori NHX 5000 HMC, 2017 - Full 4th Axis, Chip Conveyor
Sold

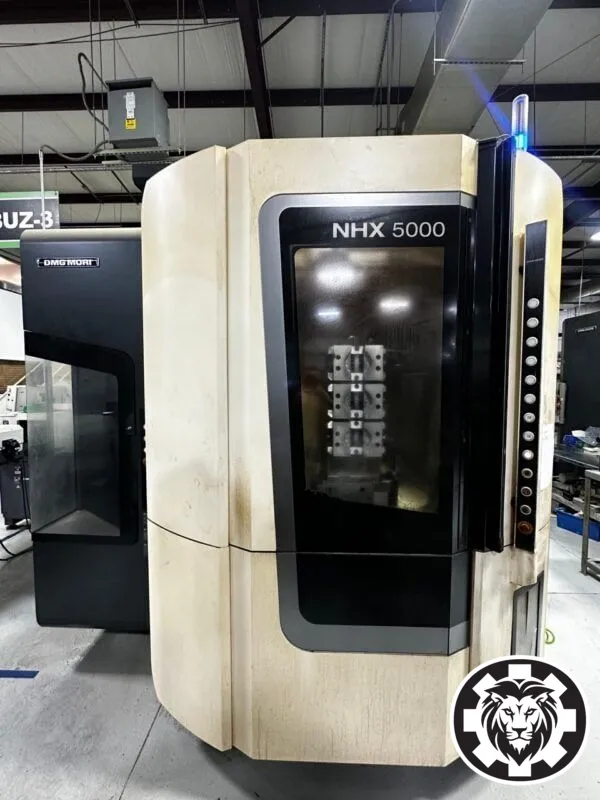

DMG Mori NHX 5000 HMC, 2017 - Full 4th Axis, Chip Conveyor

Horizontal Machining Centers
Manufacturer:
DMG MORI
Model:
NHX 5000
Stock #:
260
Used DMG MORI NHX 5000 Horizontal Machining Center: 730mm X/Y travel, 800mm Z travel, 20.1 kW power, 12000 RPM, 40-tool ATC, 500mm pallet. Reliable performance for precise machining operations.
X28.7 mm1.1299"
Y28.7 mm1.1299"
Z34.6 mm1.3622"
Power20.1 hp15 kW
RPM15,000 RPM15,000 RPM
# ATC4040
Taper#40#40
Pallet-W19.7 mm0.7756"
Pallet-L19.7 mm0.7756"
# Axis33
ControlCNC (ERGOline Celos M730UM)CNC (ERGOline Celos M730UM)
Dimensions121.2 x 188.3 x 112.3121.2 x 188.3 x 112.3
Weight26400 lbs26400 lbs

Pallet Size: 19.7″ x 19.7″ (500mm x 500mm)
X-Travel: 28.7″
Y-Travel: 28.7″
Z-Travel: 34.6″

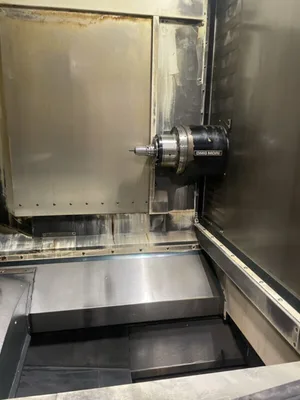

Spindle Speed: 15,000 rpm
Spindle: Taper #40

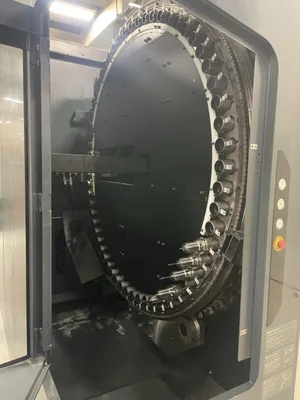

ATC: 60
Power: 220V, 60HZ
Approx. Dimensions: 121.2″ x 188.3″ x 112.3″
Approx. Weight: 26,400 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

Equipped With:

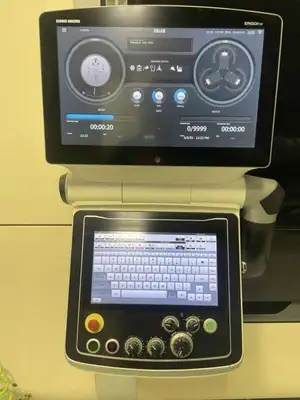

ERGOline Celos M730UM Control

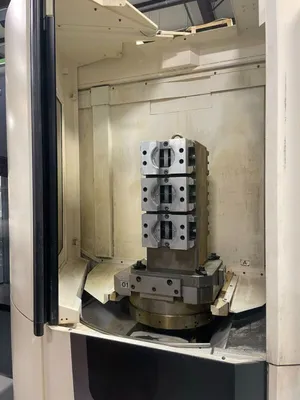

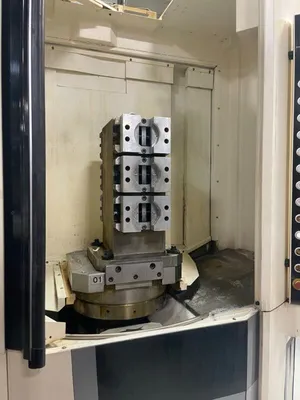

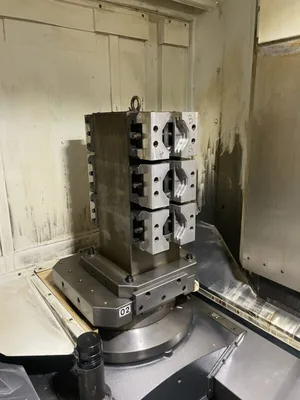

Full 4th Axis
Through Spindle Coolant
Chip Conveyor
Metrol In-Machine Measuring System (table) touch sensor
Water-Glycol Chiller
Automatic Door (setup station)
Auto-Coupler Spec. (Hydraulic 2 circuits + workpiece seating detection 2 circuits) for 2 station APC (with pallets) Only w/ Robot I/F
Robot I/F (EtherNetl/P)
