| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 26" | 660.4 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 31iB) | CNC (Fanuc 31iB) |
| Weight | 882 | 882 |
X Axis – 22″
Y Axis – 22″
Z Axis – 26″
Max Workplace Diameter – 24.8″
Max Workplace Height – 35.4″
Max Workplace weight – 882 lbs
X/Y/Z Axis Rapid: 2,362 IPM
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP
Spindle Speed: 20,000 RPM
Spindle Motor: 40 HP
Spindle Taper: CAT 40
Tool Capacity: 60 Tools
Pallet Size: 500 mm
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Equipped With:
Celos Ergoline Touch Screen
Fanuc 31iB Control
Full 4th Axis
Chip Conveyor
Through Spindle Coolant

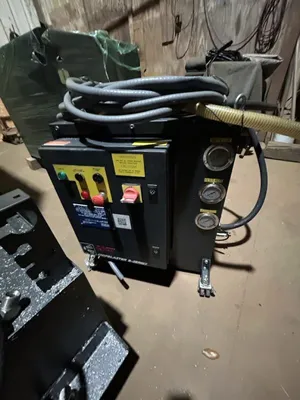

LNS Chip Blaster
