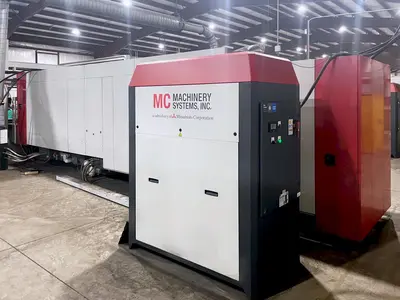

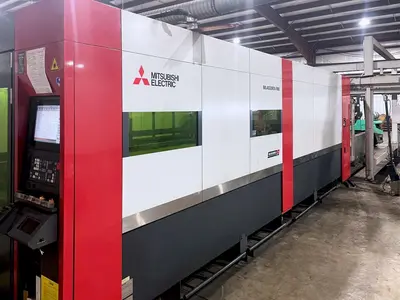

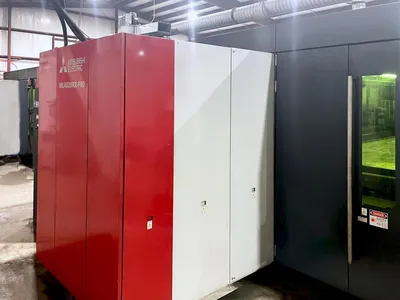

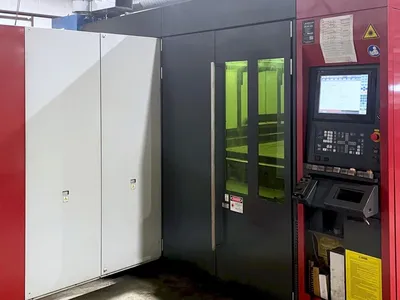

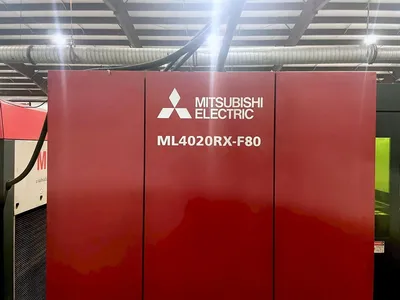

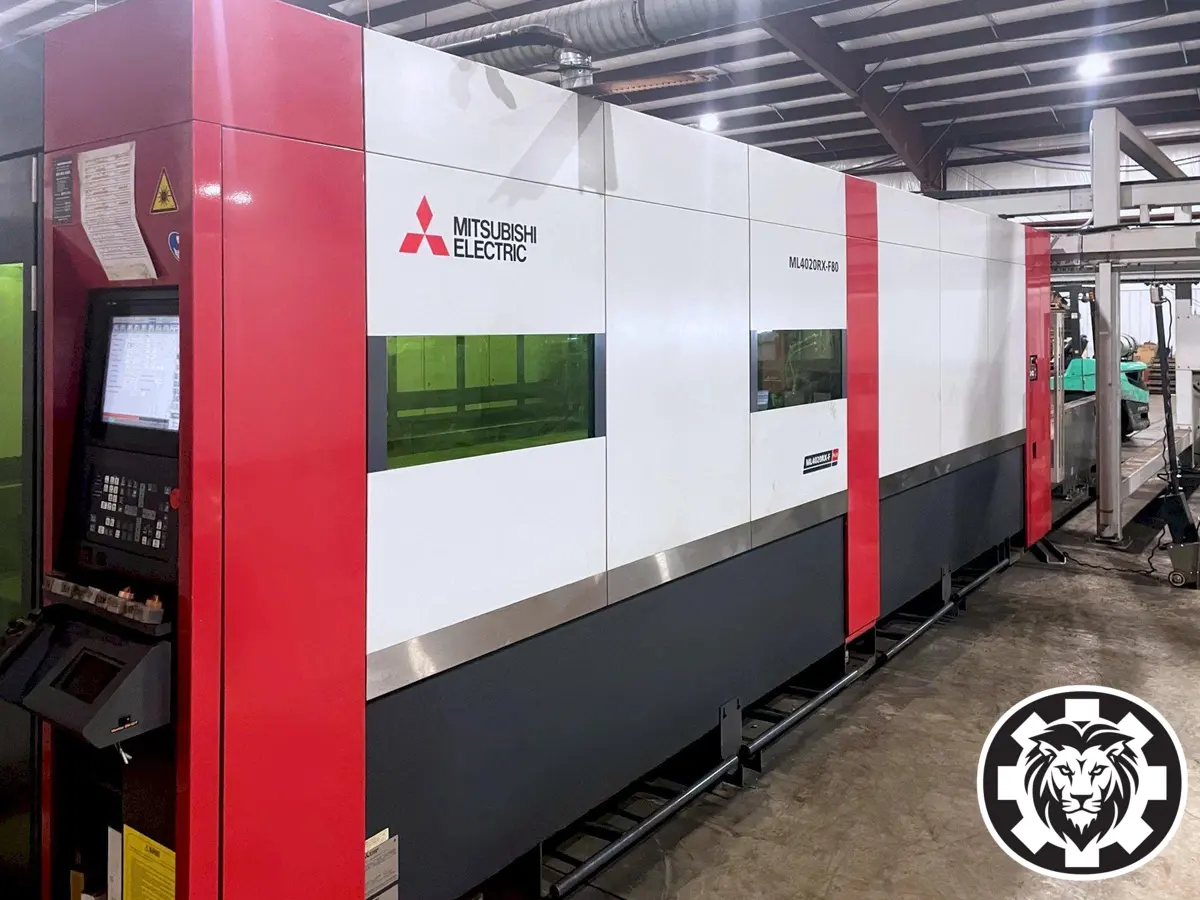

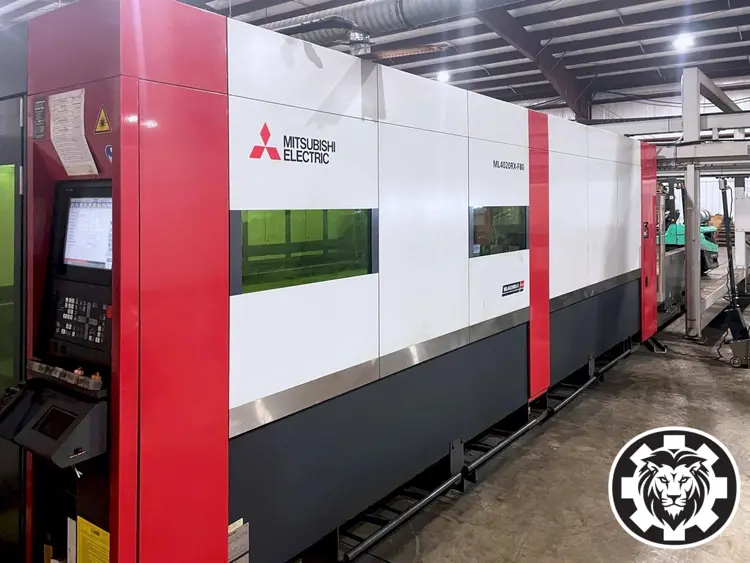

8000 Watt Mitsubishi ML4020RX-F80 Fiber Laser, 2018 - 6.5' x 13' Table, Dual Pallet Shuttle Tables, IPG Power Source, Chiller

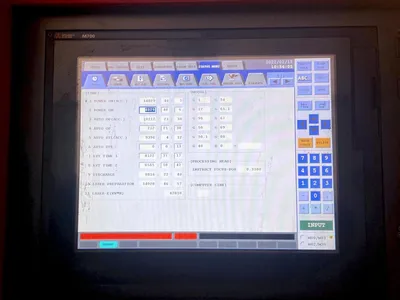

Control: Mitsubishi M700 Series Control
Resonator Type: Fiber
Rated Power (Output): 8 kW
Processing Head: Zoom Head
Max. Working Area: 81.10” X 159.44”
Cutting Range (X,Y,Z): 82.67”/161.41”/5.90”
Table Pass Height: 34.6"
Max. Table Load: 3,637 Lbs.
Machine Design: Mobile Optical System
Sheet Processing: 2 Exchangeable Tables
Simul. Speed X&Y Axis: 5,511 IPM
Max Processing Feed Rate: 1,970 IPM
Pos. Accuracy (X/Y Axis): .00196”/19.685”
Pos. Repeatability (X&Y Axis): .000393”
Max. Material Thickness Mild Steel: 1.10"
Max. Material Thickness Stainless: .98”
Max. Material Thickness Aluminum: .98”
Max. Material Thickness Brass: .47”
Max. Material Thickness Copper: .24”
Startup Time: 3 Min.
Voltage: 208V/3 Phase 60 Hz
Machine Weight: 33,069 Lbs.
Dimensions: 516" X 138” X 91”
