| X | 50" | 1,270 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 20 | 20 |
| Taper | 40 CT | 40 CT |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |

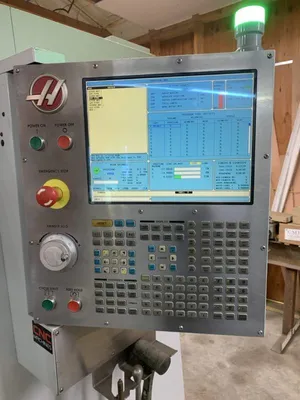

| Control | CNC | CNC |
| Dimensions | 131 x 92 x 101 | 131 x 92 x 101 |
| Weight | 13300 LBS | 13300 LBS |
Specs:
X Axis Travel: 50″
Y Axis Travel: 20″
Z Axis Travel: 25″
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 52″ x 18″
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Cutting 650 ipm
Max Torque 90 ft-lbf
Spindle Nose 4.2″ – 29.2″
Drive System Inline Direct-Drive+
Tool-to-Tool 4.2 sec change
Coolant Capacity 55 gal
Dimensions: 131″ x 92″ x 101″
Weight: 13,300 LBS
Options:
Rigid tapping
Wired 4th axis
P-cool
Chip Auger
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
