| Spindle Hole Dia | 1.26" | 32.004 mm |
| Power | 5.5 kW | 7.4 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 9 | 9 |
| Control | CNC (Fanuc 31i-B) | CNC (Fanuc 31i-B) |
| Dimensions | 104.5 x 64.5 x 79 | 104.5 x 64.5 x 79 |
| Weight | 11,460 lbs. | 11,460 lbs. |
Maximum Bar Stock: 32mm / 1.26"
Number Axes: 9
Max Headstock Stroke w/ Guide Bushing: 330mm / 12.99"
Max Headstock Stroke w/o Guide Bushing: 70mm / 2.76"
Sliding Headstock / Guide Bushing: Yes
Convertible: Run w/o Guide Bushing (chucker): Yes
Number Tool Positions (std/max): 29 / 38
Number Live Tool Positions (std/max): 11 / 26
Main Spindle Speed: 200 - 8,000 RPM
Sub Spindle Speed: 200 - 8,000 RPM
Main Spindle Motor: 3.7 / 5.5 kW
Approx. Weight: 11,460 lbs. / 5,200 kg
Approx. Dimensions: 104.5" x 64.5" x 79"
Equipped With:
Control: Fanuc 31i-B
MP Systems High Pressure Coolant System

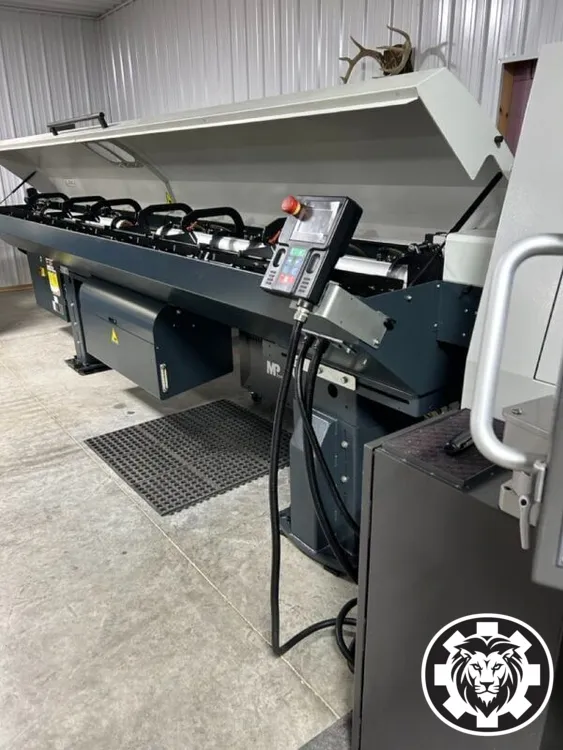

LNS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
