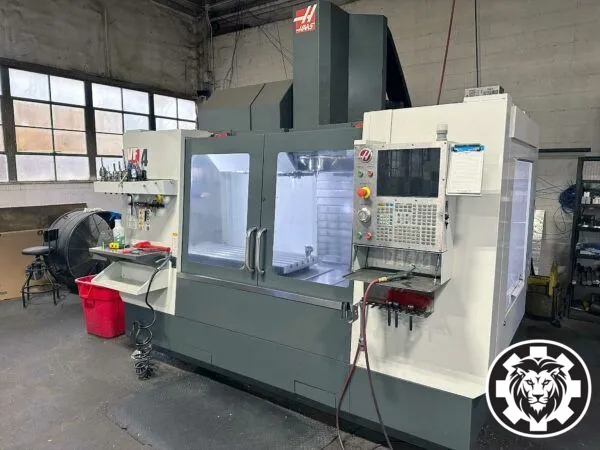

Haas VF-4 VMC, 2017 – 4th Axis Ready, Coolant Through Spindle, WIPS Probing, Auger
Sold

Haas VF-4 VMC, 2017 – 4th Axis Ready, Coolant Through Spindle, WIPS Probing, Auger

Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-4
Year:
2017
Stock #:
239
Country:
United States
HAAS VF-4 VMC 2017, 4th Axis Ready with Coolant Through Spindle and WIPS Probing. Equipped with a 30 hp motor, 20 tool capacity, and CT/BT 40 taper. Travel: X 50", Y 20", Z 25". RPM: 8,100. Table size: 18" x 52". Used.
X50"1,270 mm
Y20"508 mm
Z25"635 mm
Power20 hp14.9 kW
RPM8,100 RPM8,100 RPM
# ATC301301
TaperCat 40Cat 40
Table-W18"457.2 mm
Table-L52"1,320.8 mm
# Axis44
ControlCNC (Haas CNC Control)CNC (Haas CNC Control)
Dimensions131 x 92 x 101 in131 x 92 x 101 in
Weight13300 lbs13300 lbs

X-Axis Travel: 50″
Y-Axis Travel: 20″
Z-Axis Travel: 25″
Table Size: 52″ x 18″
Spindle Nose: 4.2″ – 29.2″
Rapid Traverse X/Y/Z Axes: 710 IPM
Max Cutting: 650 IPM

Spindle Speed: 8,100 RPM
Spindle Taper: Cat 40
Spindle Motor: 20 HP
Automatic Side Mount Tool Changer: 30 + 1

Approx Dimensions: 131″ x 92″ x 101″
Approx Weight: 13,300 LBS
Electrics: 220 V; 3 Ph; 50/60 Hz

EQUIPPED WITH:
Haas CNC Control
4th Axis Drive & Wiring
Through Spindle Coolant
Wireless Probing- WIPS
Renishaw Probe
30+1 Position Side Mount Tool Changer
USB Port & Ethernet Interface
Coolant Tank
Chip Auger

Approx 3585 Feed Cutting Hours

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
