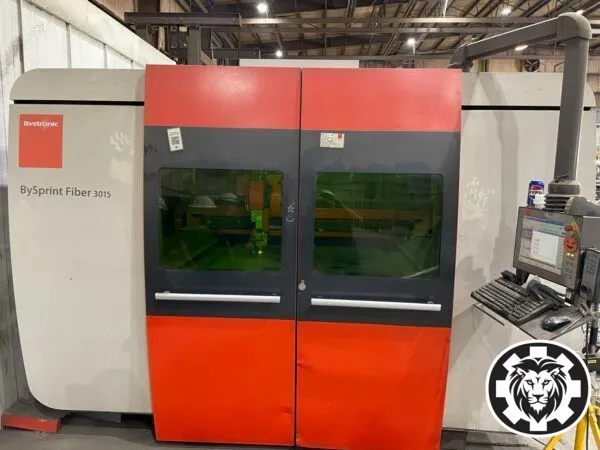

6000 Watt Bystronic BySprint Fiber 3015 Fiber Laser, 2014 – Dust Collector, Automation

Laser Power: 6 kW (6000 Watts).
Laser source: Fiber
Laser power options: 2000W, 3000W, 4000W, 6000W
Maximum positioning speed: 5511 in/min
Positioning accuracy: ± 0.004″
Repeatability: ± 0.002″

Nominal Sheet Size: 118.11 inches x 59.06 inches.

Maximum Sheet Thickness:
Steel: 0.98” i
Aluminum: 1.18”
Stainless Steel: 1.18”

Machine Dimensions:
Length: 433.8″
Width: 238.8″
Height: 101″
Machine weight: 26,455 lbs

Wavelength: 1060 nm – 1080 nm
Max Power cw: 6000
Rated Voltage: 480 V
Rated Frequency: 60Hz
Fuse rating: 25A
Rated Current: 17A
Largest motor FLA: 12A
Short circuit current rating: 7.5kA
15kA
Max. Power consumption: 13kVA
Installed load with laser Fiber to 6kW: 30kVA
Power meter factory: BYLASER
Stand by: 16kW
COS PHI: 0.75…0.95
Cross-Section max: 70mm2 or AWG 2/0
Data: RJ45 – ethernet 10MBit/100MBit

Equipped With:
Bytrans 3015 Extended
Automation Tower System
Automatic nozzle changer.

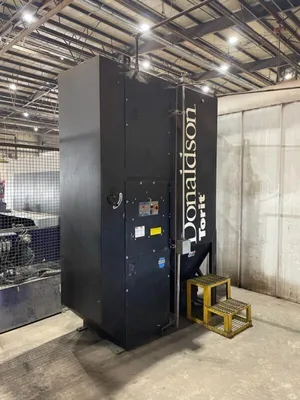

Donaldson Torit TG 6 Dust Collector
ByVision control with a 15″ touch screen.
High-speed cutting capabilities.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
