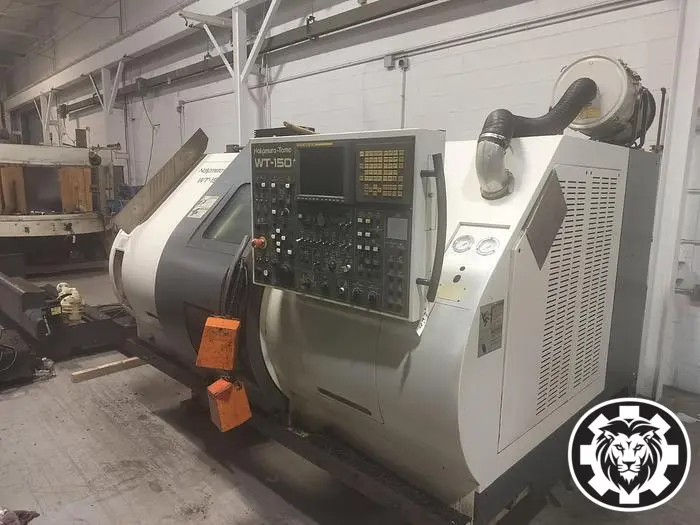

Nakamura-Tome WT-150S CNC Lathe, 2003 - Sub Spindle, 2 Turrets, Coolant System, Chip Conveyor
Have one to sell?
ConditionUsed
1 available
2003 Nakamura-Tome WT-150S CNC Lathe. Features include Fanuc 18i-TB Control, 7.488" swing, 19.8" machining length, dual 12-station turrets, 20 HP power, 5,000 RPM max, and sub-spindle. Ideal for versatile machining.
Machine control
Fanuc 18i-TB CNC Control
Distance between spindle centers
29.528" Max
Spindle nose(s)
A2-5
Spindle bores
2.48"
Max bar capacity
2.047"
Spindle speeds
5,000 Max RPM
Spindle drive(s)
20 HP Left / 15 HP Right
Max workpiece swing diameter
7.488" Max Turning Diameter
Max turning diameter
7.488"
Max turning length
19.8"
Number of turrets
2 - Upper and Lower
Turret capacity
(2) 12 Station Turrets
Turret 1 travels (x/z)
6.201" / 18.30"
Slide travel y (upper turret)
+/- 1.375"
Turret 2 travels (x/z)
6.59" X / 18.3" Z
Rapid traverse rates
629.9 IPM X / 1,574 IPM Z
B-axis travel (right spindle)
21.65"
Fanuc Series 18i-TB CNC Control, Chip Conveyor, Complete Coolant System with Tank and Pumps.
sub spindle
